INSTALLATION AND WIRING
12
2.1 Installation
2 INSTALLATION AND WIRING
2.1 Installation
2.1.1 Instructions for installation
For the FR-E520-0.1K to 0.75K-NA and FR-E510W-0.1K to 0.4K-NA, install the
inverter with the accessory cover or control panel (FR-PA02-
02
) front cover open.

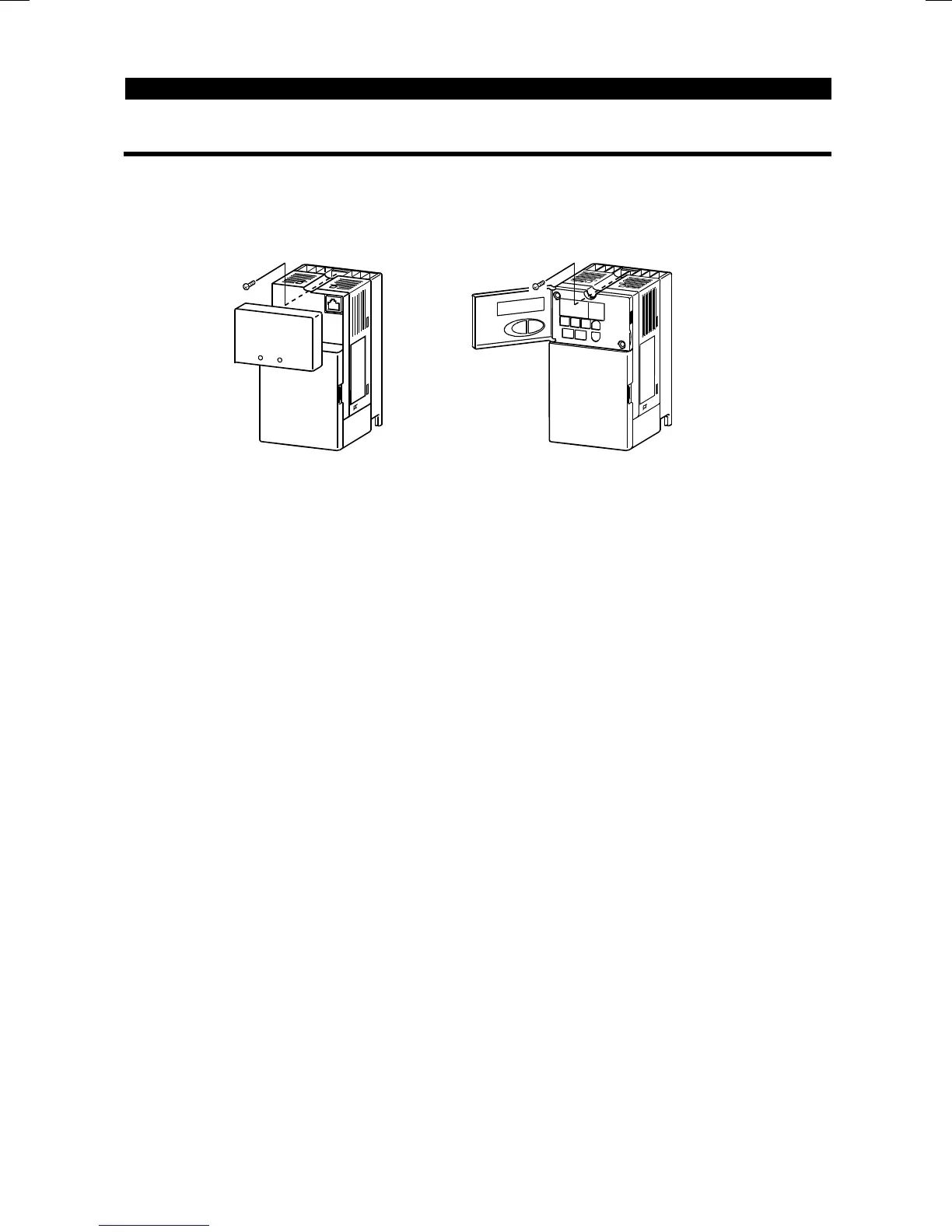

<For the accessory cover> <For the control panel
FR-PA02
-02
1) Handle the unit carefully.
The inverter uses plastic parts. Handle it gently to protect it from damage.
Also, hold the unit with even strength and do not apply too much strength to the front
cover alone.
2) Install the inverter in a place where it is not affected by vibration easily (5.9m/s
2
maximum).
Note the vibration of a cart, press, etc.
3) Note on ambient temperature.
The inverter life is under great influence of ambient temperature. In the place of
installation, the ambient temperature must be within the permissible range -10
°
C to
+50
°
C (14
°
F to 122
°
F). Check that the ambient temperature is within that range in
the positions shown in figure 3).
4) Install the inverter on a non-combustible surface.
The inverter will be very hot (maximum about 150
°
C (302
°
F)). Install it on a non-
combustible surface (e.g. metal). Also leave sufficient clearances around the
inverter.
5) Avoid high temperatures and high humidity.
Avoid direct sunlight and places of high temperature and high humidity.
6) Avoid places where the inverter is exposed to oil mist, flammable gases, fluff, dust,
dirt etc.
Install the inverter in a clean place or inside a "totally enclosed" panel which does
not accept any suspended matter.
