1-5. MECHANICAL INSTALLATION
*The instructions in this section are general installation procedures.
1-5-1. GENERAL
Mounting provisions for the tooling servoactuator
should include a stable mounting platform for the
tooling actuator, a filter location which allows the filter
element to be readily replaced and mechanical pro-
visions allowing simple adjustment of the mechanical
relationship between the actuator and the die gap.
Figure 1-5 shows such as a well planned installation.
A tooling servoactuator provides a long lived solution
to the problems caused by high temperatures and
force levels. Low friction seals and strong bearings
insure long term and good tooling die gap positioning
performance. A built in position transducer provides
mechanical isolation from shocks and climbing feet.
A directly manifold servovalve is tightly coupled to the
actuator. Figure 1-6 illustrates a packaged tooling ac-
tuator with provisions for pre-blow air.

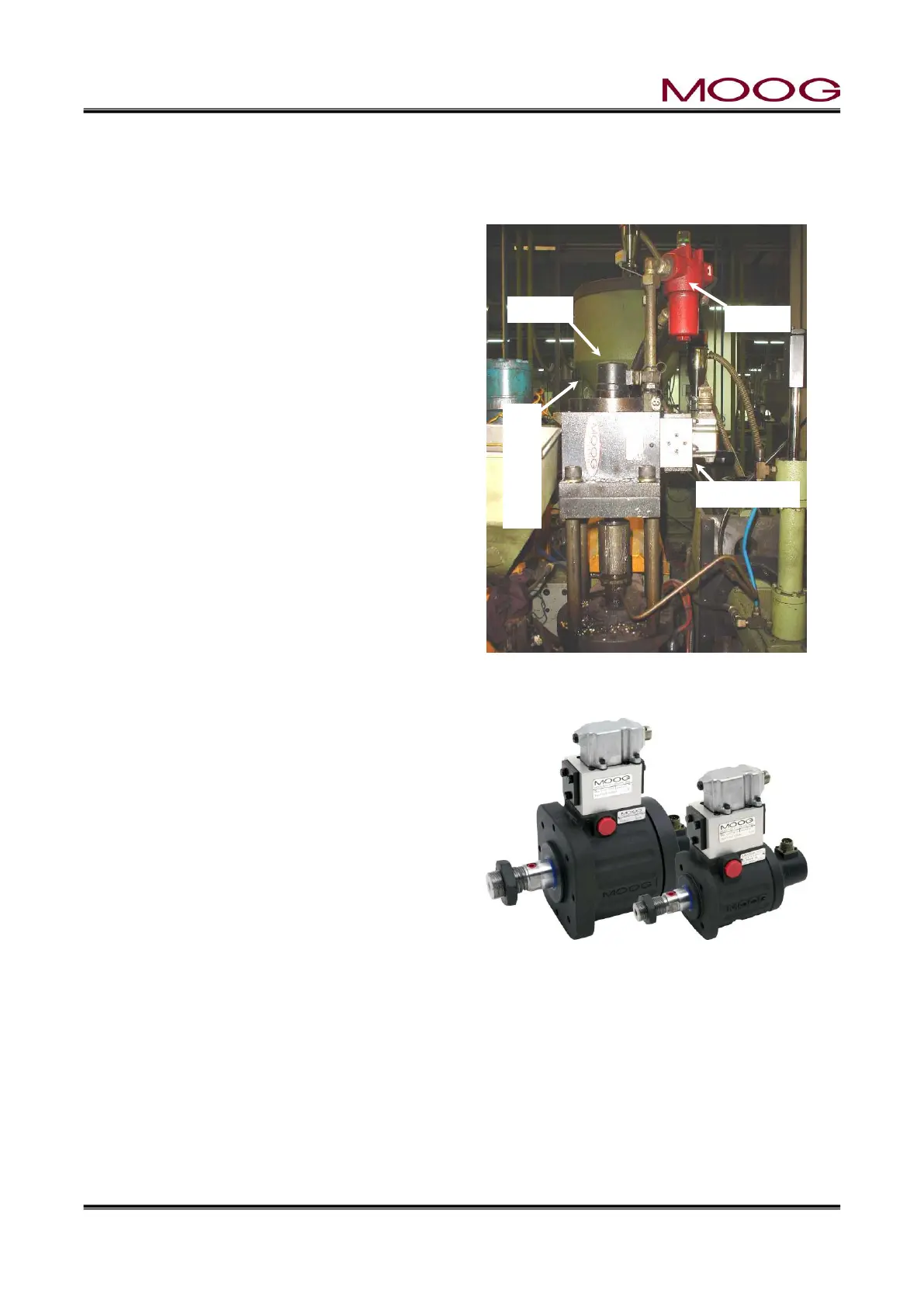

Figure 1-5 shows a typical tooling actuator installa-
tion. A servovalve (upper right) is directly mounted on
a manifold, which in turn is attached to a tooling ac-
tuator. Directly below is a DCDT position transducer
measuring the actuator rod and die gap tooling mo-
tion. In addition, a high pressure filter mounted di-
rectly on the manifold provides clean oil to the servo-
valve. Tooling adjustment provisions are also shown.
Figure 1-5 Die Gap Tooling Actuator Installa-
tion
Figure 1-6 Die Gap Tooling Actuator
