Range H
Range H changes the value of all profile points by a
percentage of the difference between the thickness
and thinnest points. The value of the thinnest profile
point remains constant during a Range H change.
Range H can vary between –100% and non limit + side
(3276.7%).
* If the profile over 100%, Range H still can be increase
continuously, however actual profile command is 100%
maximum.
Use the Rotaly Knob and SET to change the Range
H setting. The percentage Range H change will remain
displayed after being Set. When the Rotaly Knob is
turned again the new Range H entry will start at zero
using the current display as a reference. If the Rotaly
Knob is accidentally moved and the displayed Range
H value changed, it will revert to its former value if SET
is not pressed and the Cursor used.

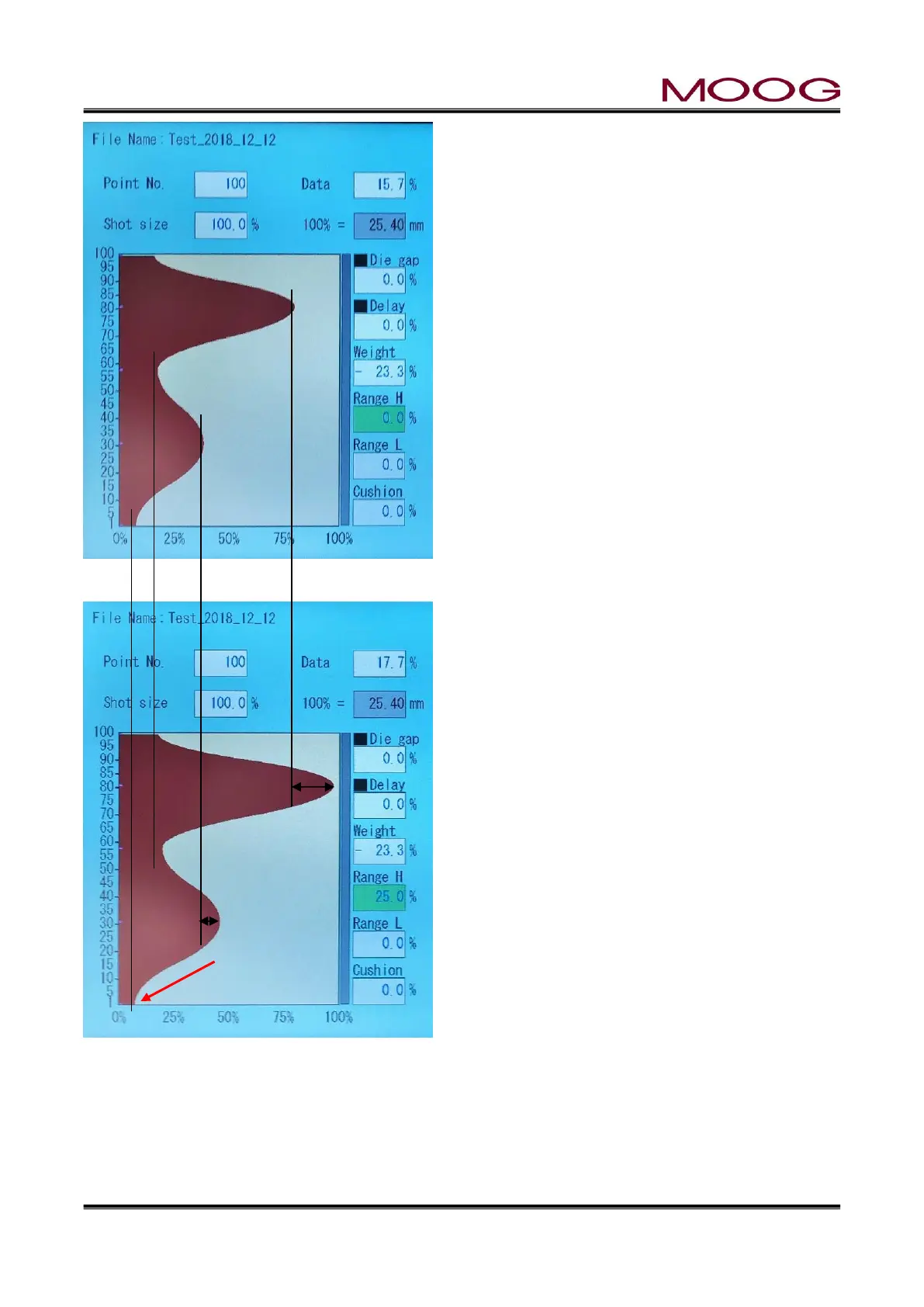

Figure 2-14 0% Range H
Range H has the effect of allowing container weight
changes while retaining the containers minimum wall
thickness distribution pattern.
Figure 2-15 shows the effect of a Range H increase of
+25.0% from the Range H value of 0% in Figure 2-14.
To make the change easier to visualize, reference lines
drawn between the figures starting at four different par-
ison wall thickness program points have been included.
Range H will use the thinnest parison wall thickness
program point as a reference and will not change its
thickness. The Range H change will be largest at the
maximum parison wall thickness point, and proportion-
ately less at the intermediate parison wall thickness
poins.
Figure 2-15 (+)25.0% Range H Change
The lowest
thickness will
be fix
