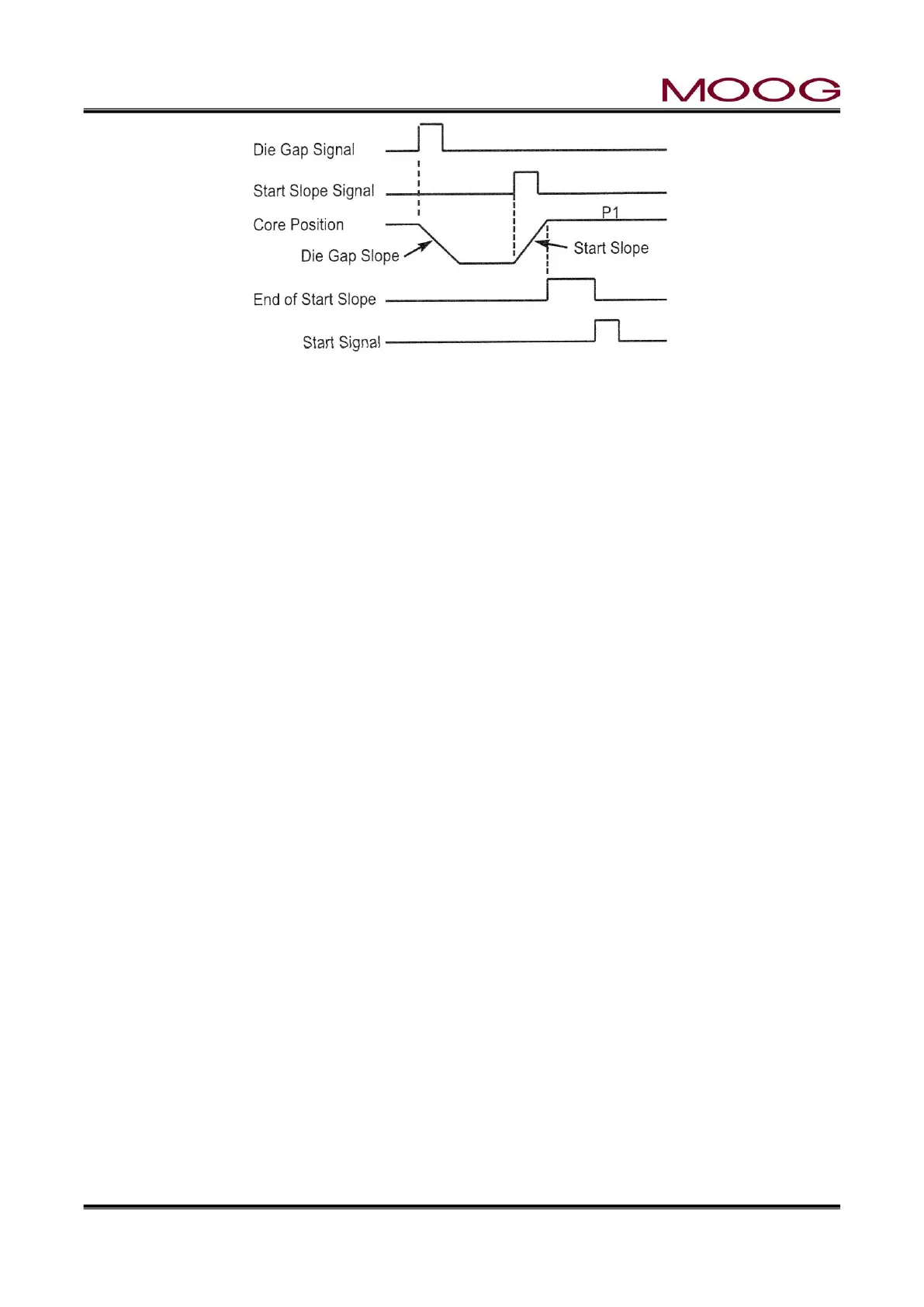

Figure 2-19 Slope Timing
PURGE GAP
With this parameter, set the core movement target position (PURGE opening) by the [PURGE] switch
located at the following two places. Setting range 0 to 100% (Initial value 100%) (For definition of 0 to
100% see 1.9.3.1)
· F4: Monitor screen: PURGE switch can be pushed in the manual mode.
· Accumulator setting screen: The PURGE key is displayed when accumulator initial setting page is indi-
cating. (DEL key changes to PURGE key)
TOOLING GAP
With this parameter, set the core movement target position (TOOLING closing) by the [TOOLING] switch
located in the following two places. Setting range 0 to 100% (Initial value 0%) (For definition of 0 to 100%
see 1.9.3.1)
· F4: Monitor screen: TOOLING switch can be pushed in the manual mode..
· Accumulator setting screen: The TOOLING key is displayed when accumulator initial setting page is
indicating.. (SHIFT key changes to TOOLING key)
* PURGE / TOOLING is the core forced opening and closing function. This function is effective when
replacing resin or when performing initial setting (zero-span) of the accumulator.
* The speed of the core moved by the PURGE / TOOLING switch is the speed set by “Die gap slope”.
* Refer to Section 1.9.3.3 Accumulator setup for the purge / tooling function during accumulator setting.
Time set
A time setup of an internal timer is performed.
When there is no time correctly by an initial state or no long-term turning on electricity, time is set up on
this screen.
Date
A date is inputted.
Time
Time is set up.
SET
After inputting a date and time, a timer is set up by SET and a count is started.
