STATUS INDICATORS
There are two status indicators on the [F1] profile page (Figure 2-9). The status can be checked as follows
depending on the status of the indicator.
Die gap and Delay are not highlighted
Status Condition
Running or Ready:
1) When the mode is changed from MANUAL to
AUTO
2) When the power is turned on or the DigPackⅢ is
reboot
3) When the STOP signal is input
4) End of movement of the Delay to until Diegap sig-
nal ON.
Die gap:
From DieGap signal and while core on the Die gap position
Delay:
From Start signal and while Delay running

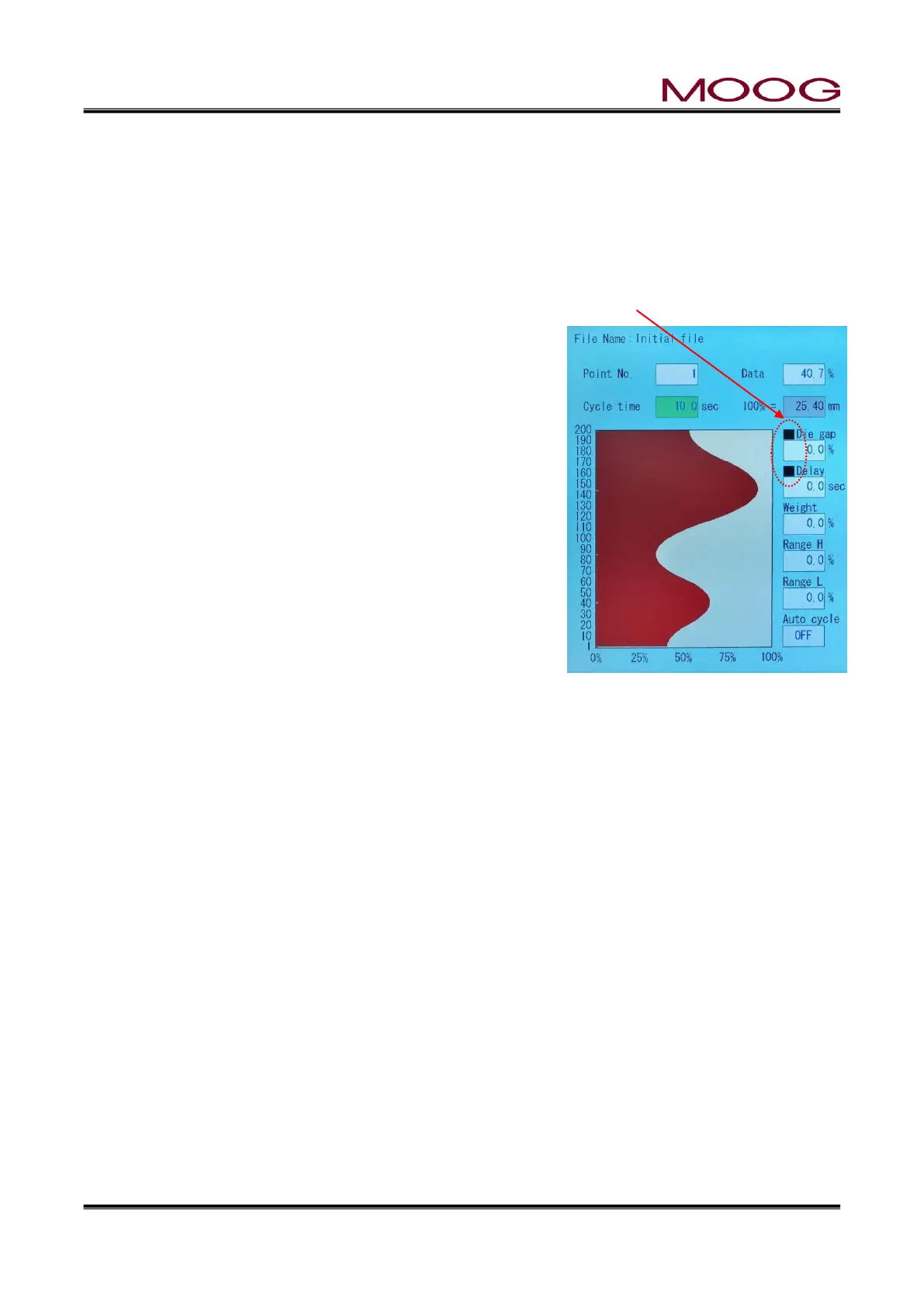

Figure 2-9 Status indicator
2-3-5. EDIT AREA
In the edit area shown in Figure 2-6, the detail screen when the specific function key [F1-F5] selected is
displayed.
Selection of the individual Function Items is done by the Cursor or touch directly. In Figure 2-9, the value
of the Item Cycle time, 10.0 sec, is highlighted and therefore Cycle time is selected. Turning the Rotaly
Knob will increase (CW) or decrease (CCW) the Cycle time value. To make this Cycle time change
permanent, SET must be pressed. If do not press SET and press ESC or move the cursor here, the value
of Cycle time will be restored. * For details of value input method, please refer to section 2-3-2.
Selection of other Function Items is done by repeatedly pressing the Up or Down Cursor until the desired
Item is reached or touch the item directly. In this manner, all of the individual Function Items may be
selected. The value of any Function Item will not be changed when moving between Function Items unless
SET is pressed.
This input procedure applies to all Function screens.
