Range L
Range L changes the value of all profile points by a
percentage of the difference between the thickest and
thinnest points. The value of the thickest profile point
remains constant during a Range L change. Range L
can vary between –3276.7% and +100%. Range L
may be changed until the thinnest profile point reaches
zero. Use the Rotaly Knob and SET to change the
Range L setting. The percentage Range L change will
remain displayed after being Set. When the Entry
Knob is turned again the new Range L entry will start
at zero using the current display as a reference. If the
Rotaly Knob is accidentally moved and the displayed
Range L value changed, it will revert to its former value
if SET is not pressed and the Cursor used.
Range L has the effect of allowing container weight
changes while retaining the containers maximum wall
thickness distribution pattern.

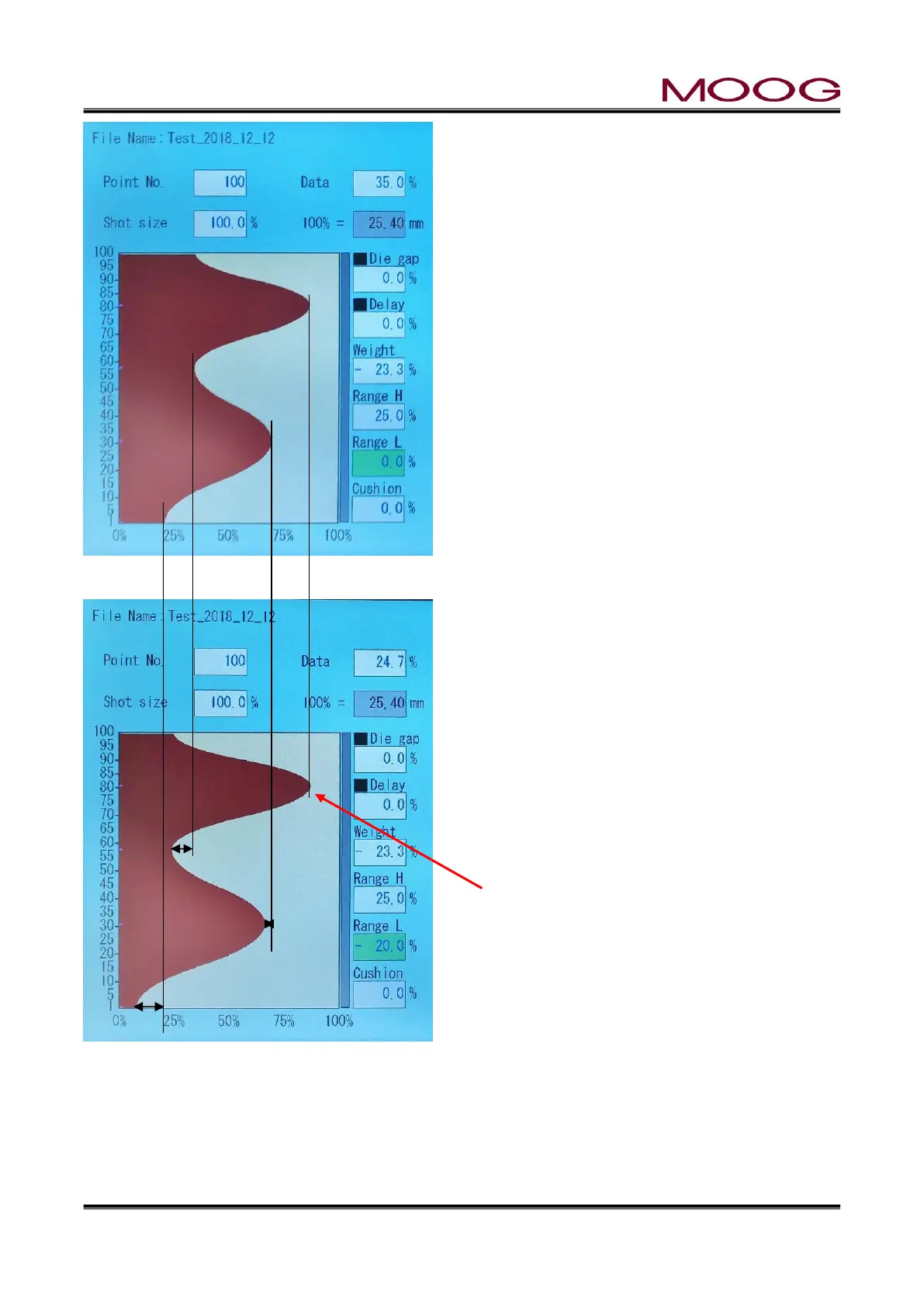

Figure 2-16 0% Range L
Figure 2-17 shows the effect of a Range L decrease of
–20.0% from the Range L value of 0% in Figure 2-16.
To make the change easier to visualize, reference lines
drawn between the figures starting at four different par-
ison wall thickness program points have been included.
Range L will use the thickness parison wall thickness
program point as a reference and will not change its
thickness. The Range L change will be largest at the
minimum parison wall thickness point, and proportion-
ately less at the intermediate parison wall thickness
points.
Figure 2-17 (-)20.0% Range L
The highest thick-
ness will be fix
