2-4. SCREENS OF EDIT AREA
Explanation here is given (profile point = 100 points).

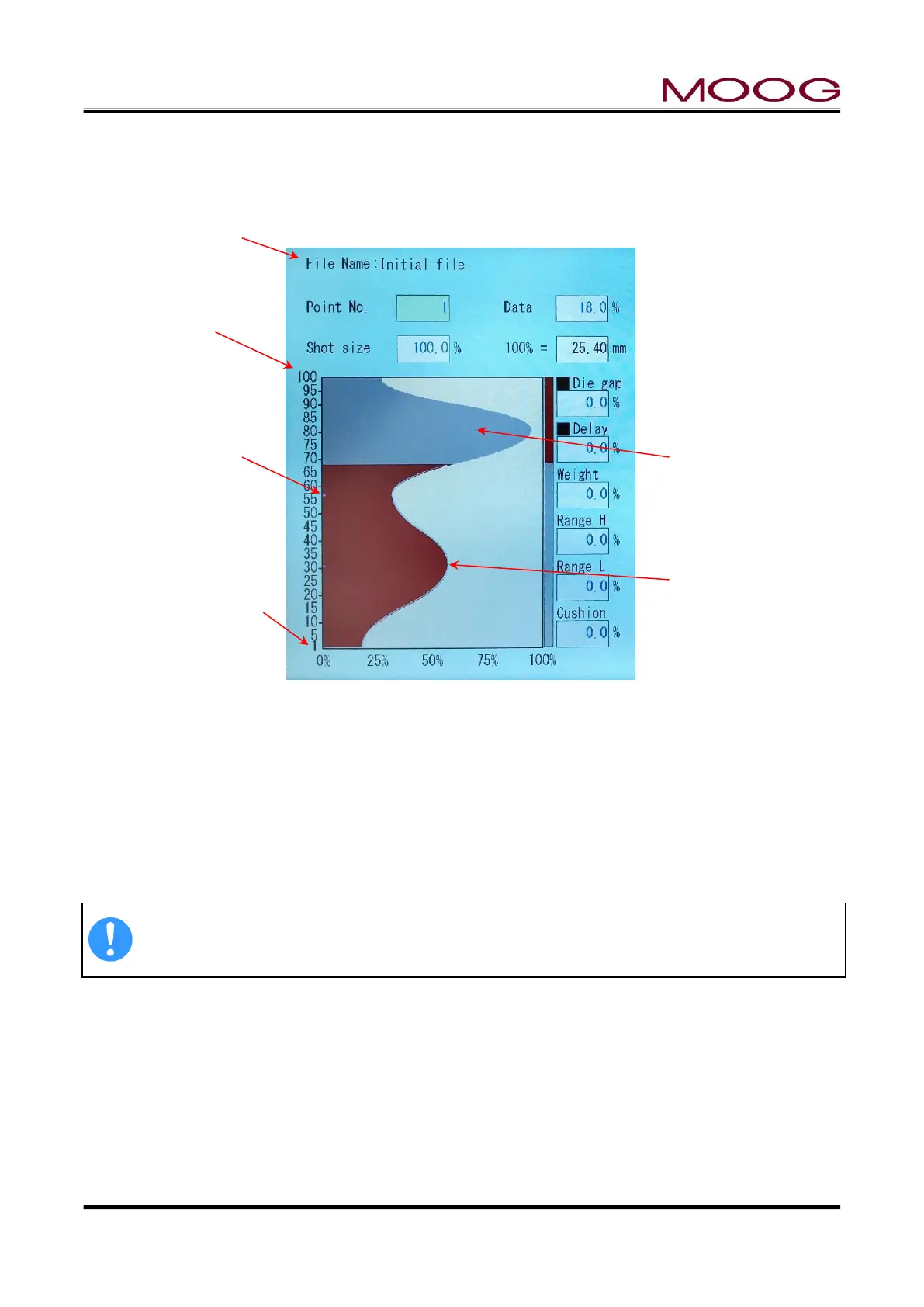

Figure 2-10 F1: Profile mode Screen
2-4-1. EDITING METHOD
The Cursor key (up/down) is used to move the cursor to each displayed parameter item. And also select
items by touching directly.The Cursor will indicate its location by light green on LCD display. If the cursor
put on to Point No. the cursor in Profile graph will move by rotating the Rotaly Knob (Clockwise to up,
Counterclockwise to down; X10 key makes the Rotaly Knob faster) to obtain the desired value, then
confirm the value by pressing the SET key. And, If the cursor put on to Data, the cursor in Profile graph
will move by rotating the Rotaly Knob (Clockwise to increase, Counterclockwise to decrease; X10 key
makes the Rotaly Knob faster) to obtain the desired value, then confirm the value by pressing the SET
key.
If change the item value but press ESC without confirmation with the SET key, that value returns.
(Some parameters are excluded)
If set values are modified, changes take effect during the next machine cycle.
100 Program Point
= Parison Top
First Program Point
= Parison Bottom
Programmed Parison
Wall Thickness or Die
Gap Opening
Indicate actual line from
DCDT feed Back. And Indi-
cate process of running.
Selectable indication ON or
OFF at setup display
(SHIFT→F4). See 1.9.2.1
Program setting Point
Indicator
To Next Page
