• Each controller has an independent hydraulic service manifold
(HSM).
• An HPU is shared by all connected controllers via Y-cables.
• Select HPU/HSM for Power Type on each connected controller.
Path: Config > Edit Hardware > Power Options > Power Type
> HPU/HSM

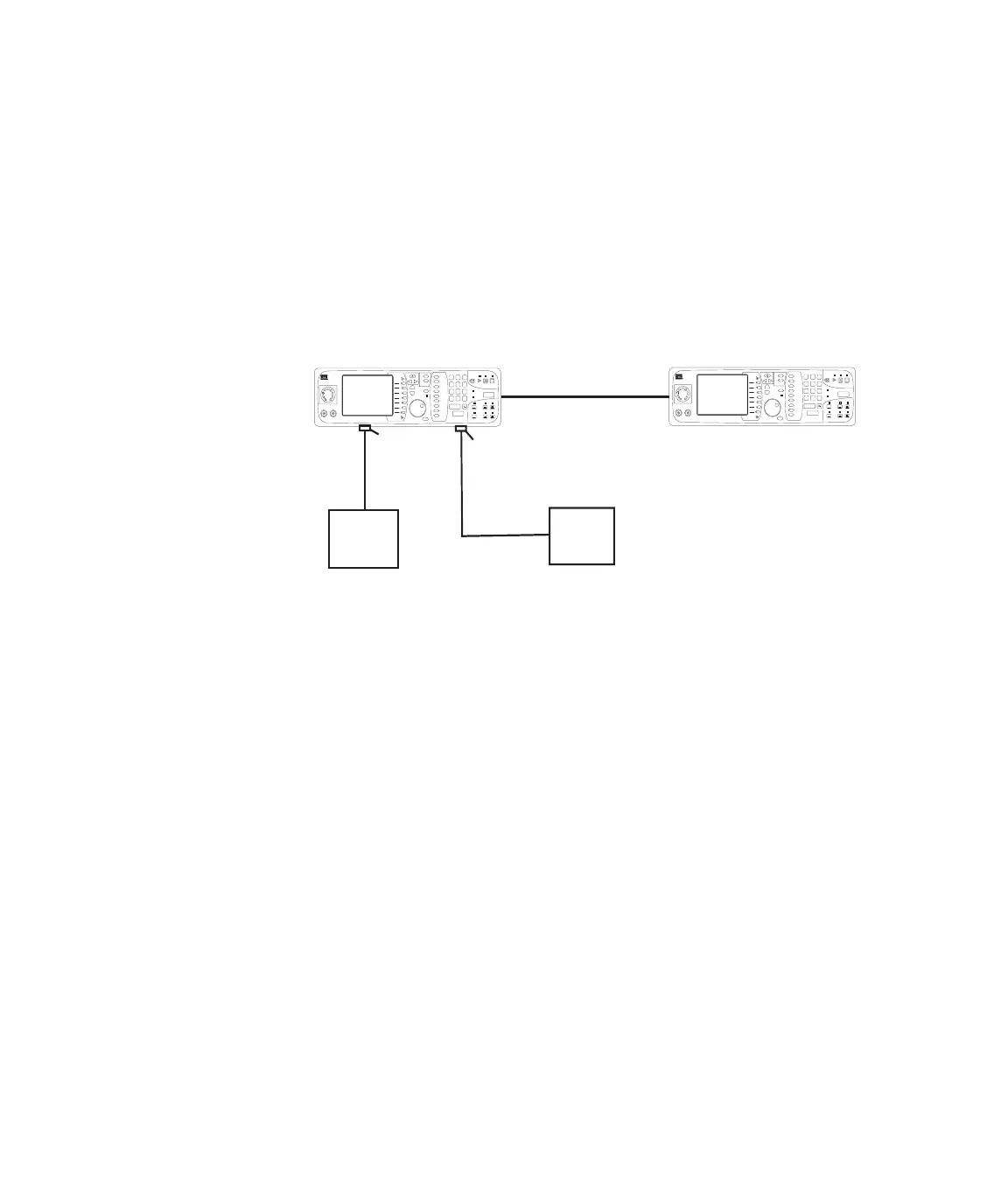

Shared HSM (with HPU)
For this multiple controller configuration:
• The HSM and HPU are connected to one controller only.
• Select HPU/HSM for Power Type on the controller to which the
HSM and HPU is connected.
Path: Config > Edit Hardware > Power Options > Power Type
> HPU/HSM
• Select Slave HSM for Power Type on controllers connected to the
master controller.
Shared HSM (no HPU)
For this multiple controller configuration:
• An HSM is connected to one controller only.
• Select HSM Only for Power Type on the controller to which the
HSM is connected.
Path: Config > Edit Hardware > Power Options > Power Type
> HSM Only
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tuning
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run
Hold
Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low
High
Off
Low
High
Navigate
Monitor 1
Monitor 2
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tunin g
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run
Hold
Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low
High
Off
Low
High
Navigate
Monitor 1
Monitor 2
Power Type = HPU/HSM
Power Type = Slave HSM
Interlock/Hydraulics
HSM
056-126-4xx
J28 HSM
056-316-0xx
HPU
J25 HPU
039-713-7xx
