MTS 793 Controller Hardware
Installing the 493.10 Chassis (FTGT)
Installation
46
Installing the Transition Panels
The transition panels need to be installed in specific slots of the rear
panel chassis. This is done to allow proper air flow in the chassis. For
consistency, install the modules according to the following guidelines.
Starting from the left chassis slot (slot 10) and working to the right,
install the modules as shown. If you do not have one of the modules,
install the next one you do have. Install multiple modules of the same
model number next to each other.
Note Other transition modules may be used, contact MTS Systems
Corporation for additional information.
J3 IN
J4 OUT
+12V
m
493.72
Digital I/O
J44BJ44A Run/Stop
J49BJ49A Aux Pwr
J29BJ29A Load Unit
m
J43BJ43A Intlk
J28A HSM
J28B HSM
493.74
HSM
SERVICE
J23
E-STOP OUT
J24
E-STOP IN
J25 HPS
J54
SYS I/O
m
493.73
HPU
Ch 1A In
Ch 2A In
Ch 3A In
m
J12 B Out
J11 B Out
Ch 1B In
Ch 2B In
Ch 3B In
493.78
Accel.
Transition
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
m
J11
(Ch 1-4)
J12
(Ch 5-6)
493.75
Analog In
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
m
J11
(Ch 1-4)
J12
(Ch 5-6)
493.76
Analog Out
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
m
J11
(Ch 1-4)
J12
(Ch 5-6)
493.77
Filtered In
J44BJ44A Run/Stop
J49BJ49A Aux Pwr
J29BJ29A Load Unit
m
J43BJ43A Intlk
J28A HSM
J28B HSM
493.74
HSM
12345678910 BA
J50D
J7 SERIAL
J50C
J50B
J50A
m
493.71
Serial
Interface

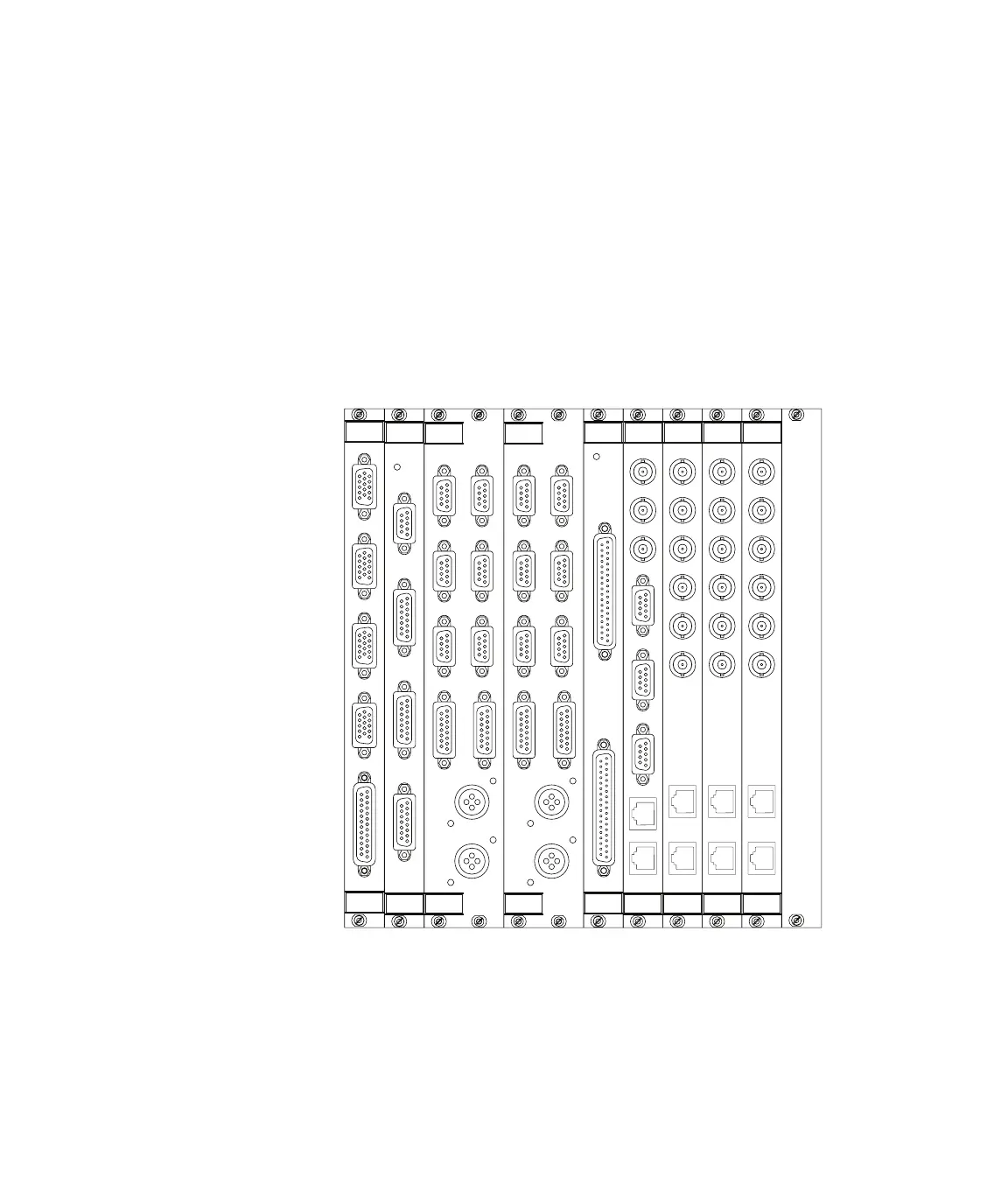

Placement of
transition panels in
the rear panel
chassis
