MTS 793 Controller Hardware
Installing 497/498 Electronics (FTIIm)
Installation
60

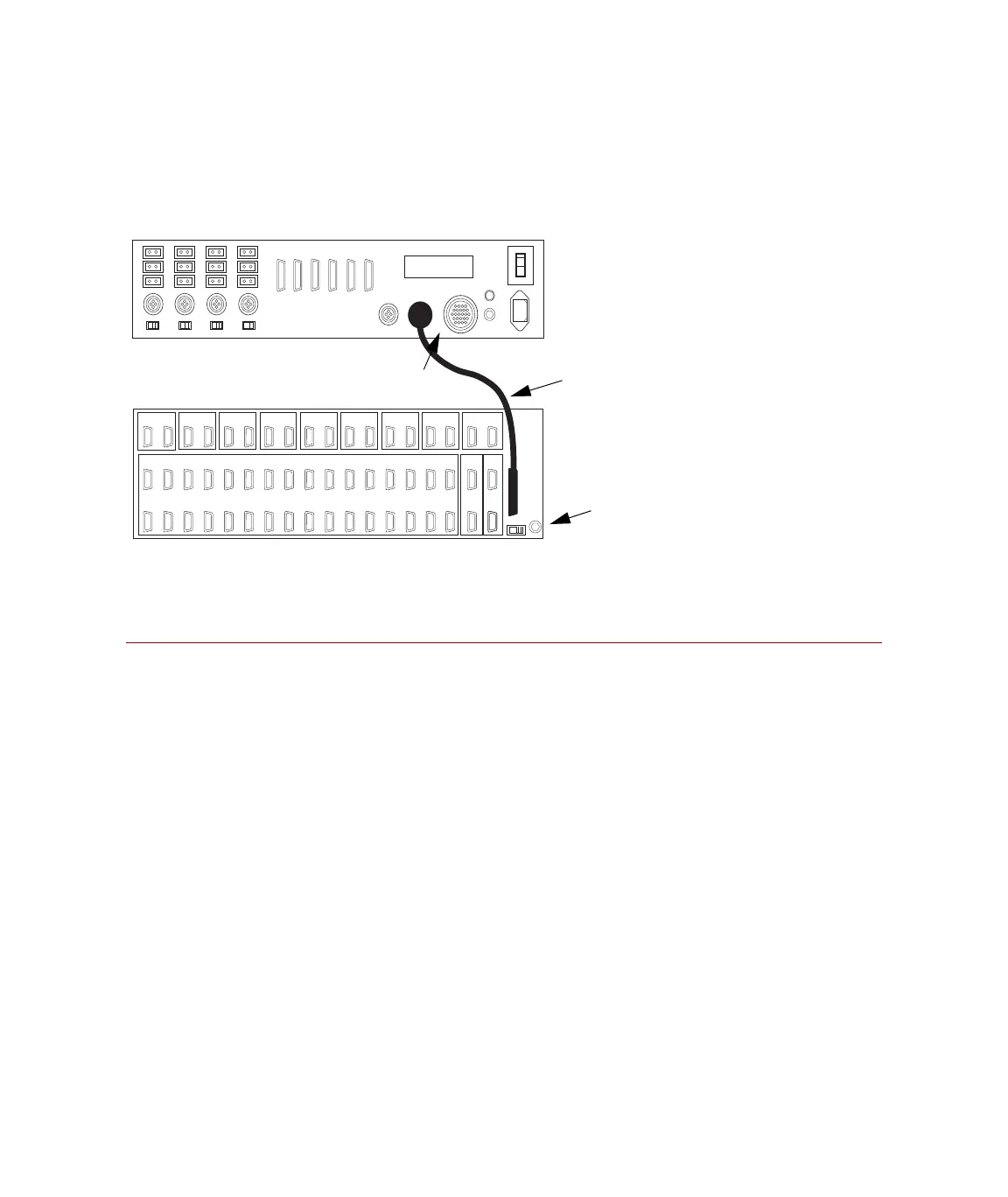

How To Cable the Analog Chassis to the Hydraulic Control Panel
Connect J50 DC Pwr on the 497.01 Analog Chassis rear panel to J50
on the 497.05 Hydraulic Control Panel rear panel.
Grounding the Console and Chassis
The system will not function correctly if it is not grounded properly.
The power ground and chassis ground terminals are wired together
when the chassis is manufactured.
Remove the jumper between the two grounds and connect each
terminal as follows:
• Each chassis ground should be connected to the console with a
short ground cable (PN 037-766-102).
• Each power ground should be connected at a common location
on the power panel (PN 037-766-1XX).
• The power panel ground should be connected to the console (PN
037-766-101).
The system ground cable connects the console to other system
components (PN 005-402-3XX).
J50
J1
497.05 Hydraulic Control Panel
497.01 Analog Chassis
PN 046-239-1XX
