7368 ISAM ONT G-240W-G Product Guide
Configure a G-
240W-G indo
or ONT
Issue: 01
3FE-4
7555-AAAA-TCZZA
147
Procedure 50
Restore factory defaults
1
Select Maintenance > Factory Default from the top-level menu in
the GPON Home Gateway
window, as shown in Figure
69
.

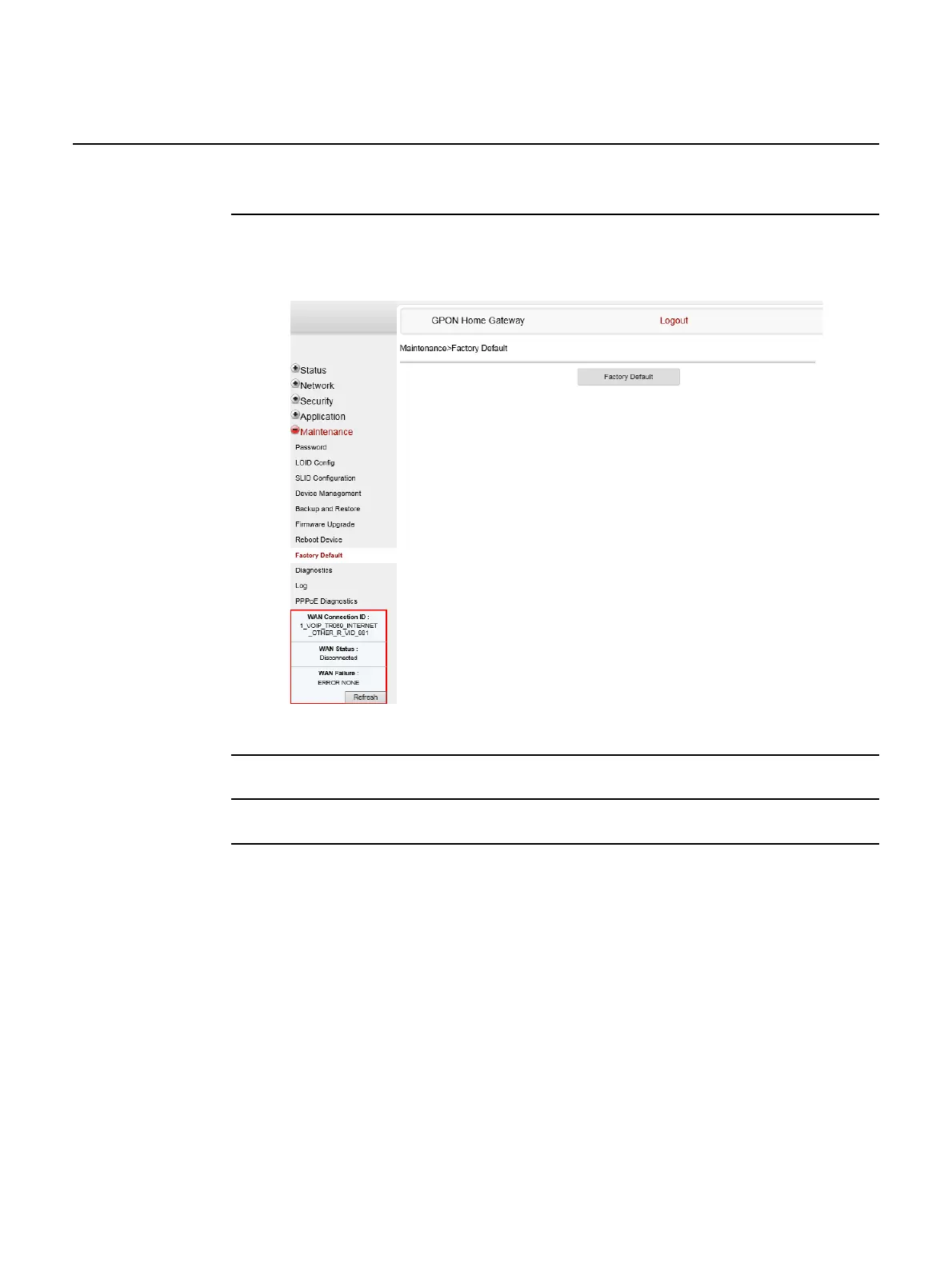

Figure 69
Factory default window
2
Click Factory Default to reset the ONT to its factory default settings.
3
STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
146
148
