4.9 G-240W-G functional blocks
G-240W-G indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi)
service. Wi-Fi service on these ONTs is compliant with the IEEE 802.11 standard
and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these
ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two
RJ-11 POTS ports. These ONTs also feature fiber optic, USB, and power
connectors.
Figure 14 shows the functional blocks for G-240W-G indoor ONT.

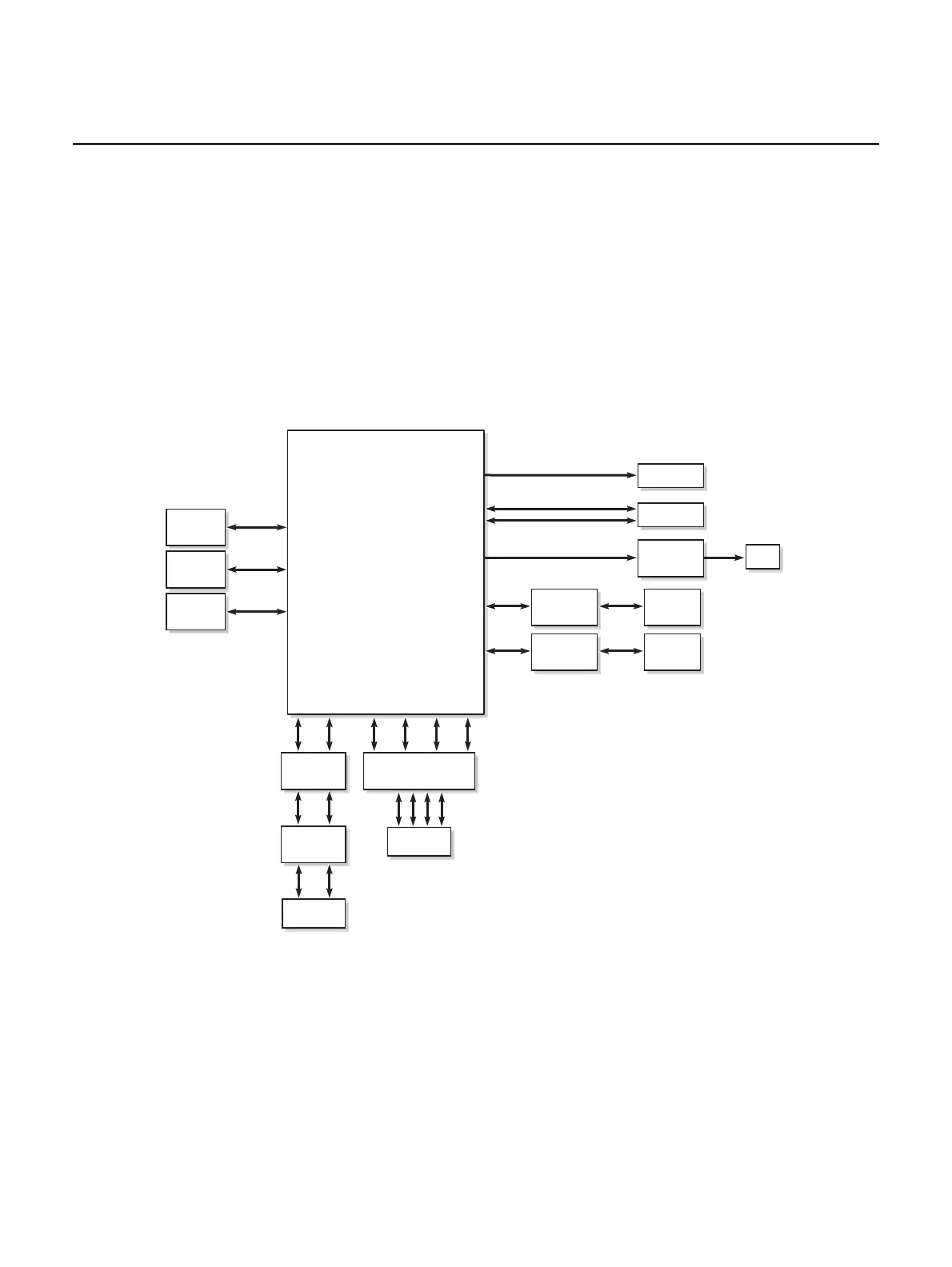

Figure 14 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see
Figure 15.
BOB
LED
USB
I2C/RX/TX_SD,TX_PD
2*USB 2.0
SerDes
LED_CLK/DAT
Shift
Register
RD/
Antenna
WIFI
11b/g/n
TransformSLIC
4*RJ-45
2x2
11b/g/n
Protection
RD/
Antenna
NAND
FLASH
SOC
WIFI
11ac
3x3
11ac
DDR3
I2C
EEPROM
PCIE0
PCIE1
GE3GE2GE1GE0
2*RJ-11
28301
