7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01

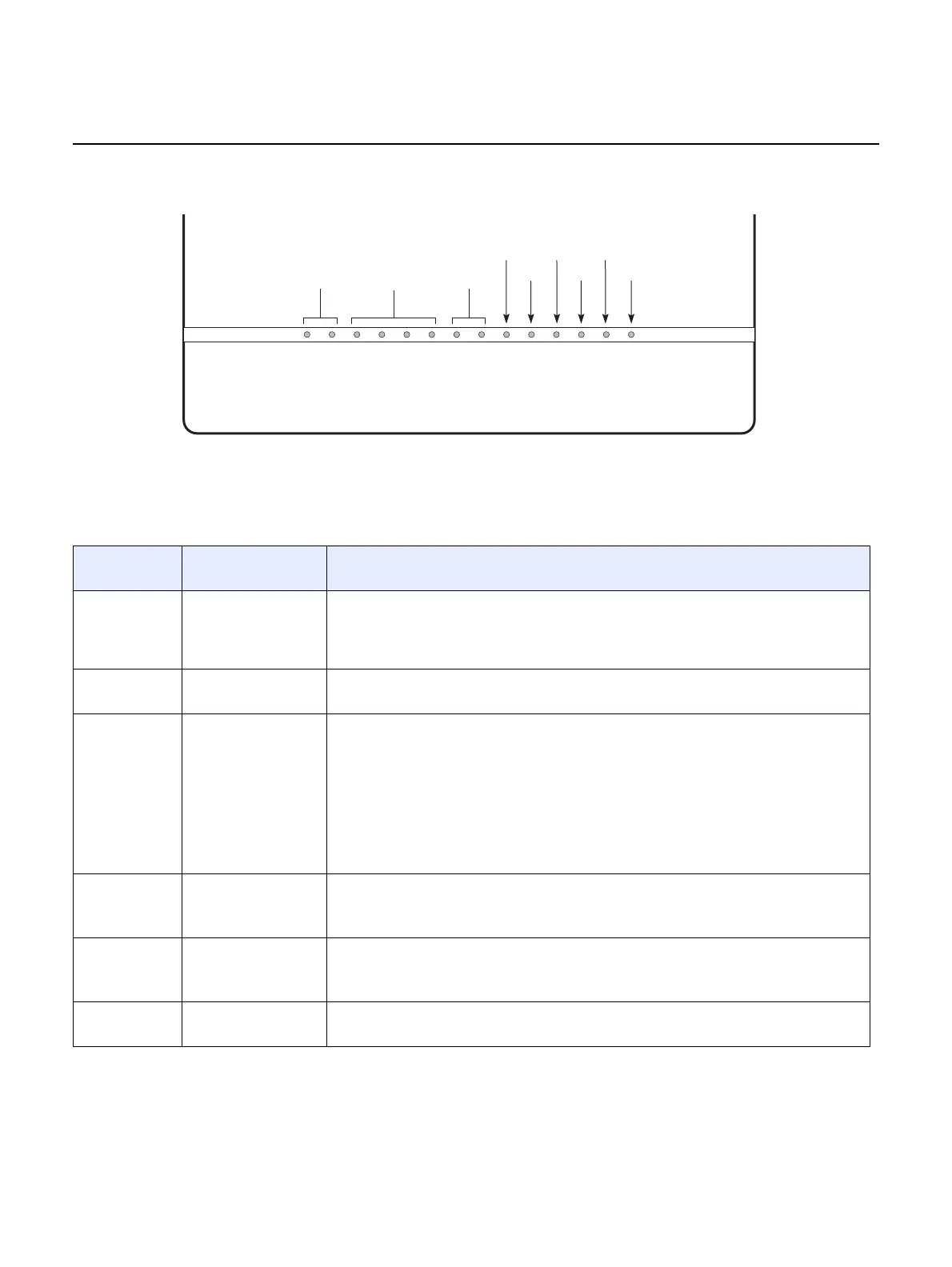

Figure 13 G-240W-G indoor ONT LEDs
Table 7 provides LED descriptions for G-240W-G indoor ONTs.
Table 7 G-240W-G indoor ONT LED descriptions
USB
1 and 2
Power WLAN
LAN
1 to 4
28310
TEL1 TEL2
LAN1
LAN2
LAN3
LAN4
USB1 U
S
B
2
P
OWE R
WPS
WLAN
LE
D
RES
E
T
ON/OFF
TEL
1 and 2
Reset
WPS LED
On/Off
Indicator LED color and
behavior
LED behavior description
Power Green solid
Red solid
Off
Power on
Light failed on startup (for example corrupt flash), or self test failed on startup, or self test failed
during regular operation or when executed over OMCI
Power off
Link Green solid
Off
GPON link between ONT and OLT is operating normally
GPON link is down or no link connected
Auth Off
Green solid
Green flashing
No fiber connected or no Rx power
ONT has been configured on the OLT and is in service (UP)
ONT is attempting to range with OLT
ONT is ranged but not configured on OLT
ONT is configured on OLT but admin is down and ONT is OOS
ONT is in service and subsequently un-configured on the OLT
ONT is in service while services are being configured
ONT is in service but admin is down and ONT is OOS
LAN 1 to 4 Green solid
Green flashing
Off
Ethernet is linked
LAN activity is present (in either direction)
ONT power is off or Ethernet is not connected
TEL 1 to 2 Green solid
Green flashing
Off
Phone is off hook
Phone is in ‘call in’ or ‘talking’ condition
All phones are on hook
VOIP Green solid
Off
VOIP service is built up and can provide service
VOIP service is not built up or out of service
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
