7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 77
Procedure 9 WAN status retrieval
1 Select Status > WAN Status from the top-level menu in the GPON Home Gateway window,
as shown in Figure 21.

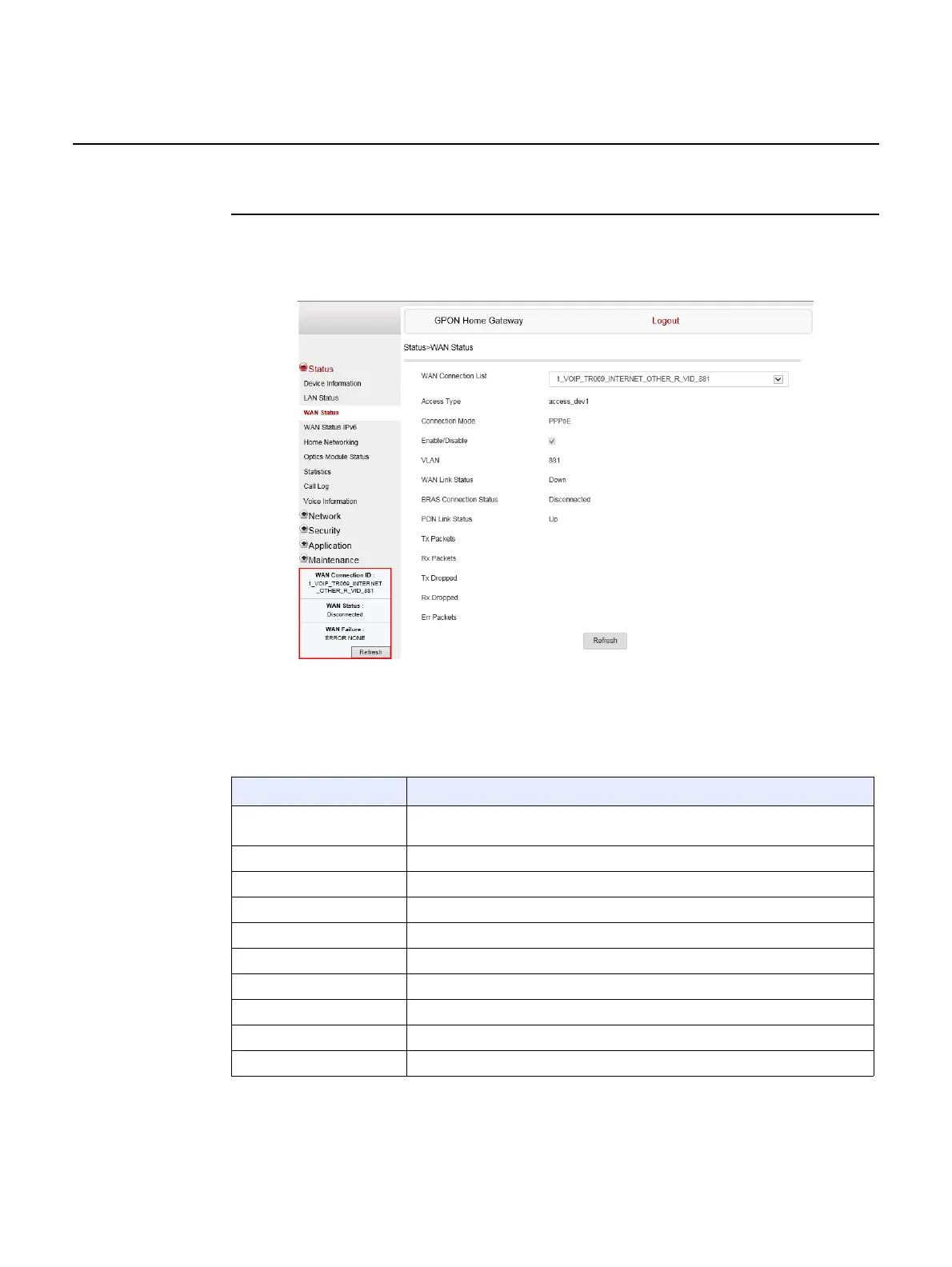

Figure 21 WAN status window
Table 19 describes the fields in the WAN status window.
Table 19 WAN status parameters
Field Description
WAN connection list Drop-down menu listing all WAN connections. The connection shown is the
connection for which WAN status will be shown.
Access Type
Connection Mode Connection mode of the WAN connection
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
WAN Link Status Whether the WAN link is up or down
BRAS Connection Status Whether the BRAS connection is connecting or disconnected
PON Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
