44952001TH Re
v
.2
4-12
Oki Data CONFIDENTIAL
4.REPLA
CEMENT OF P
AR
TS

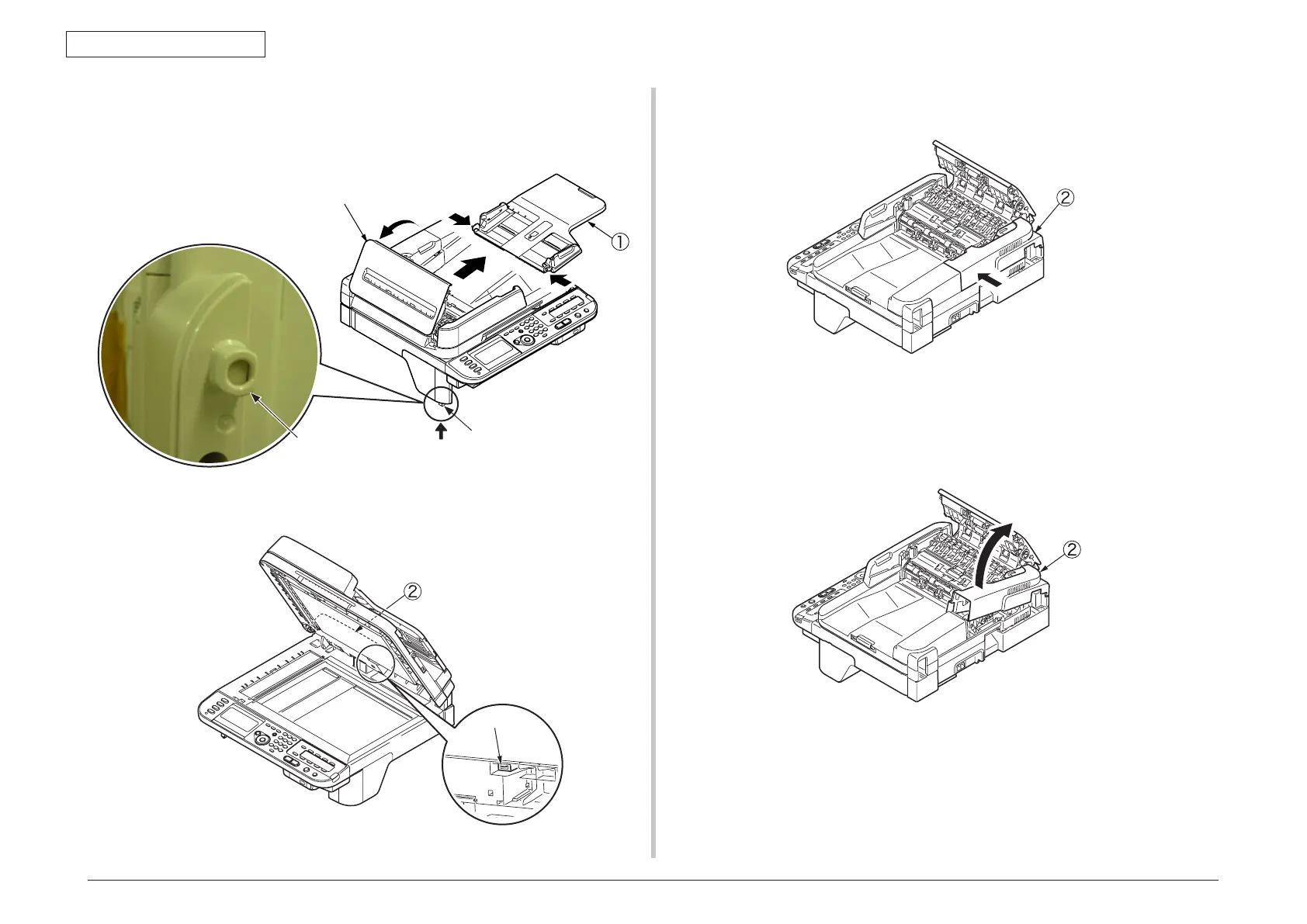

4.2.7.1
T
ra
y-assy-document / Cov
er-ADF-R-assy
(1)
Open the cove
r-assy-top-ADF .
(2)
Remove the tra
y-assy-d
ocument
â‘
by pull it in the direction
of the arr
ow
.
(3)
Open the ADF-unit
while pushing the por
tion B,
and push the claw of cover-ADF-R-
assy
â‘¡
.
(4)
Push the por
tion A.
(Concurrent t
o push the (3) )
(5)
Remove the co
ver-ADF-
R-assy
â‘¡
in the direction of
the arrow
.
Cov
er-assy-top-ADF
Claw
A
B
B
ViewA
100
102
