4.REPLACEMENT OF PARTS
4.2 Part replacement procedure
This section describes the procedure for replacing the parts and assemblies shown in the
disassembly diagrams below.

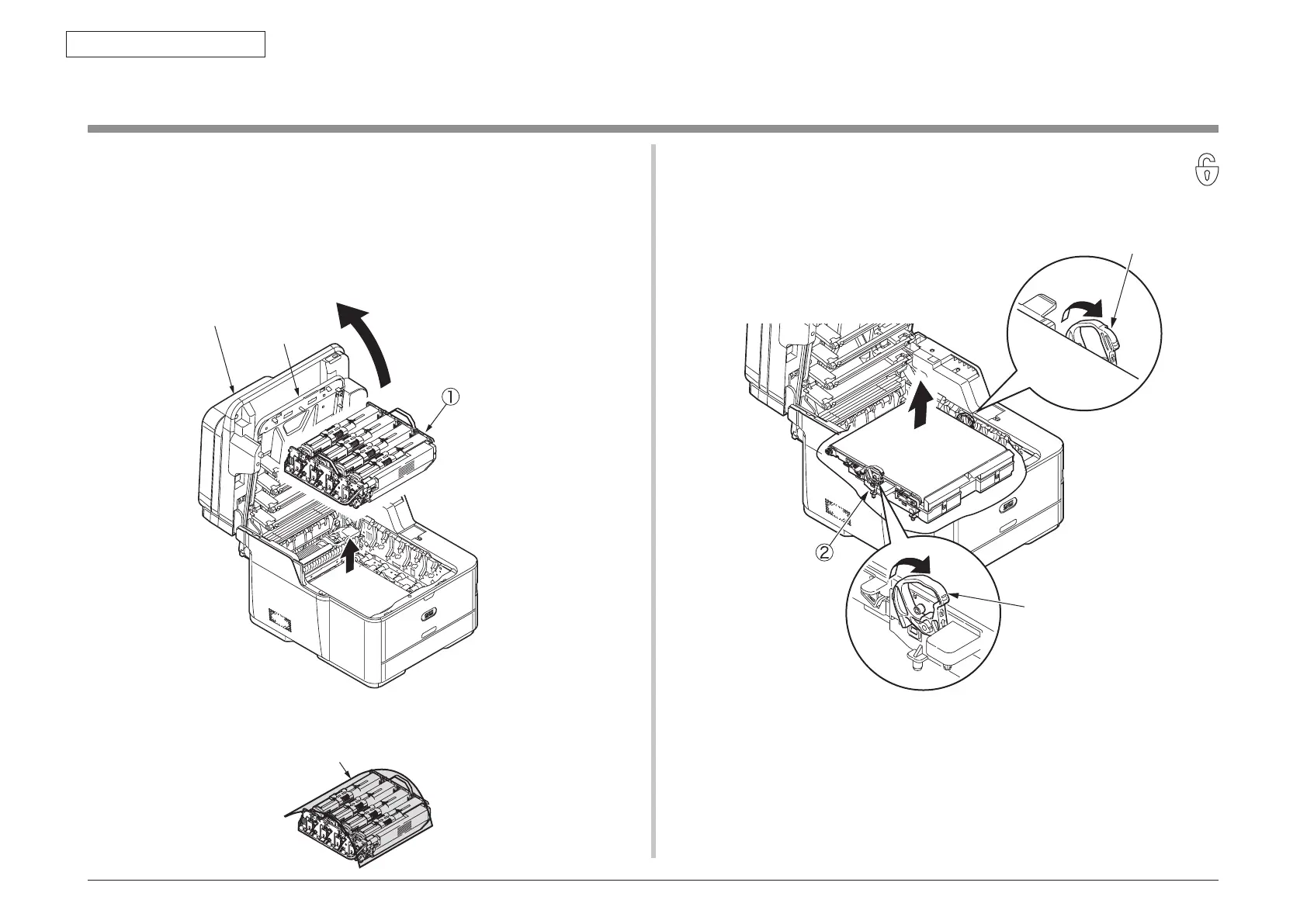

4.2.1 Belt unit
(1) Open the scanner and the top cover.
(2) Remove the image drum unit
① .
(3) Turn the (two blue) lock handles of the belt unit
②
in the direction of the arrows
and, holding the unit by the (blue) handle, detach the unit.
Note! Cover the removed image drum cartridges with a piece of black paper.
Top cover
Scanner
Lock lever (blue)
