4.REPLACEMENT OF PARTS
4.3 Locations to lubricate
Class
Amount applied (cc)
W(mm)
Sample
SABC DEF
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
1.24 2.25 2.67 3.37 4.86 5.76 7.26
W
This section shows the locations to lubricate. The other locations must not be lubricated.
Lubrication is not required during assembly or disassembly, except that, after lubricant is
wiped off locations, the appropriate lubricant specified must be applied to the locations.
Each number circled, accompanied with the number and name of a drawing indicates that
the lubrication work with the number is specified in the drawing.
Lubrication work
(1) Lubricant notations and names
EM-30LP:Molykote EM-30LP (part number 44498501)
EM-D110:Molykote EM-D110 (part number 44594501)
PM: Pan motor oil 10W-40 or ZOA 10W-30
GE-334C: FLOIL GE-334C (part number 41823301)
SF-133: HANARL SF-133

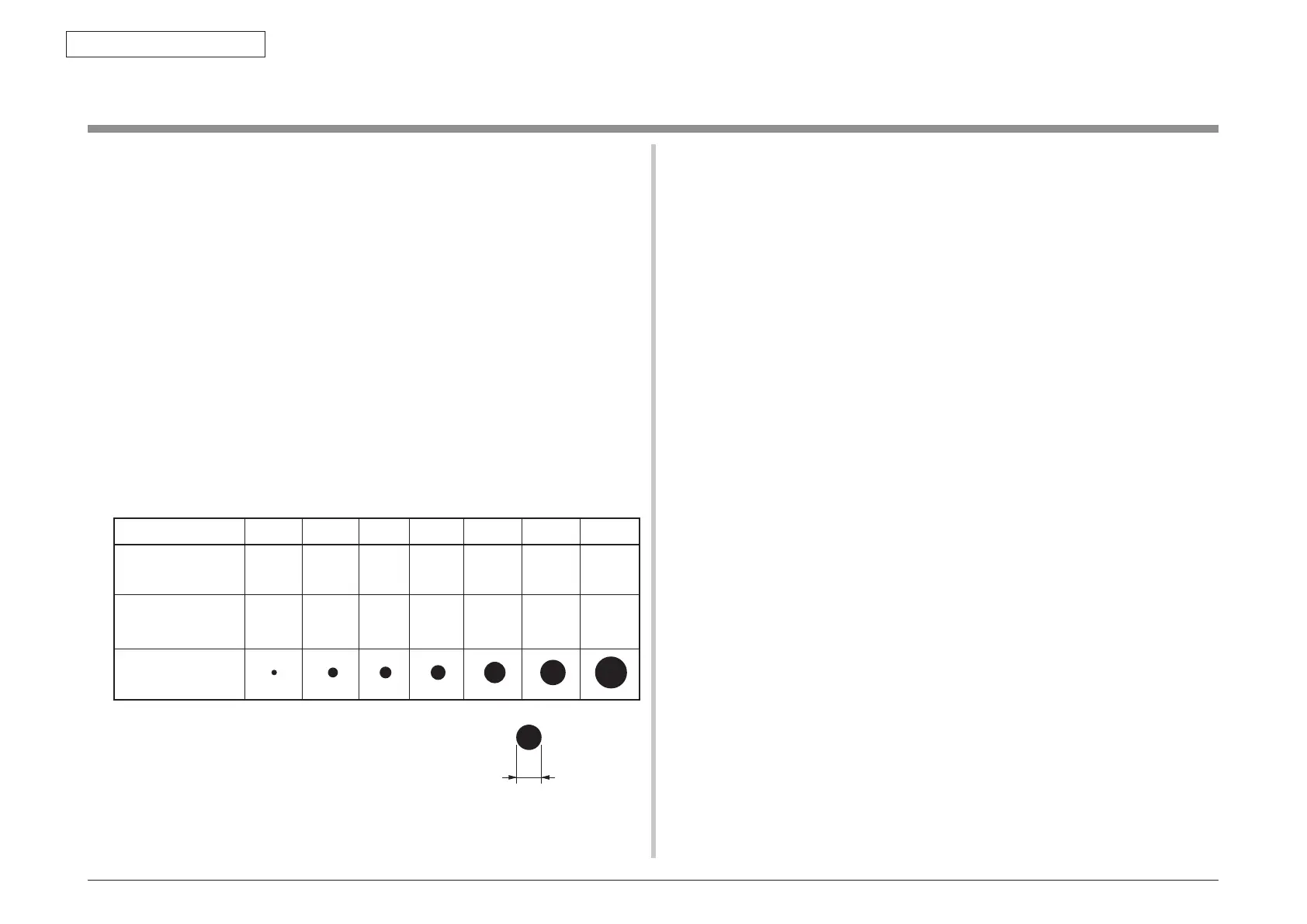

(2) Grease boundary samples
