44952001TH Rev.2

4-21

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

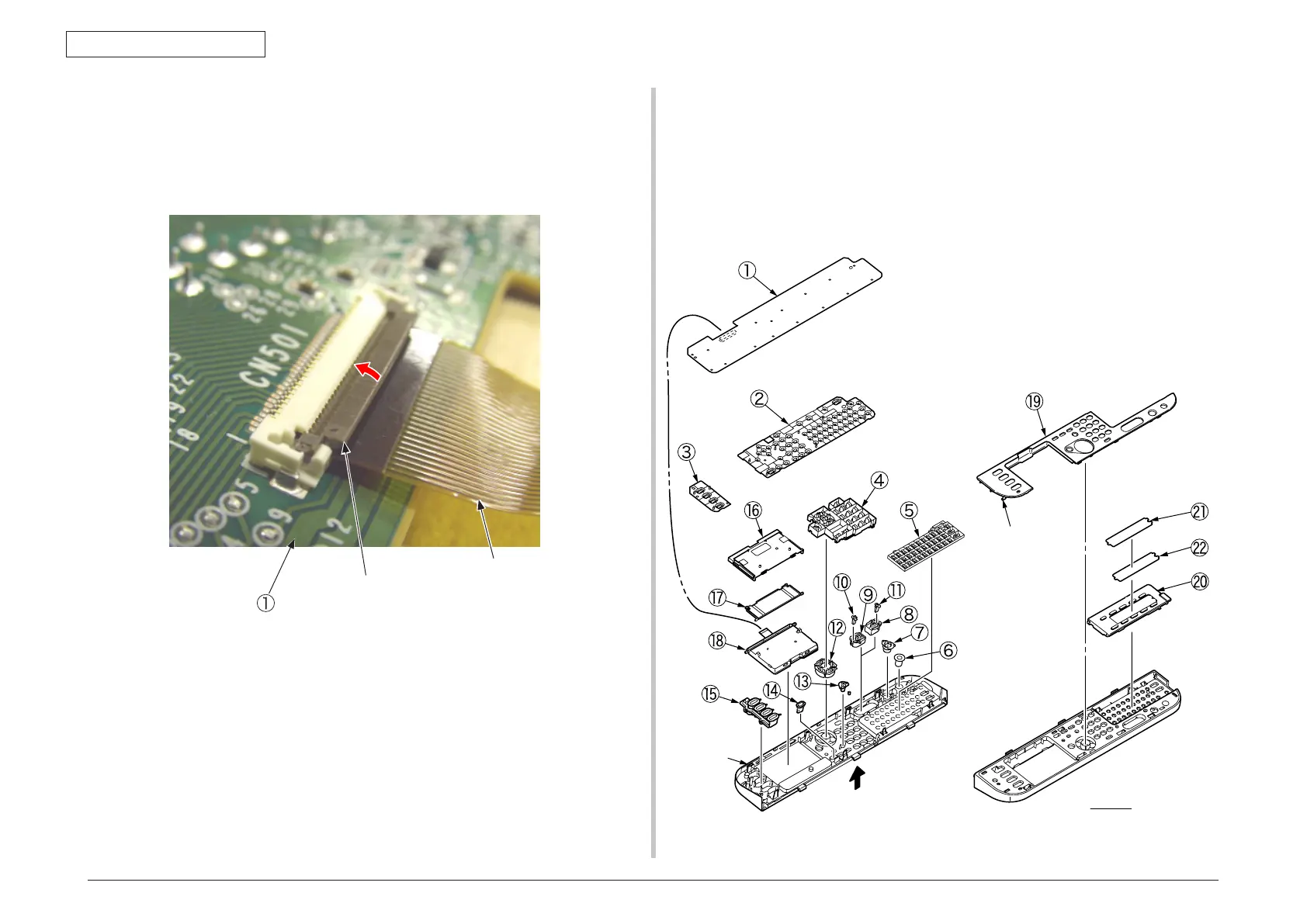

4.2.7.11 Frame-OP-panel / OPE board (MC562/MC562dw)

(1) Remove the eight claws to remove the OPE board

①

(2) Remove the LCD cable, while part A is raised in the direction of arrow.

8 × claws

ViewA

8 × Latches

(3) Remove the rubber-pad (R)

②

and rubber-pad (L)

③

(4) Remove the button and lens

④

⑮

(5) Remove the cover bottom

⑯

and cover-cable

⑰

and LCD-assy

⑱

(6) Remove the eight latches to remove the cover-op-panel

⑲

(7) Remove the cover-KB-assy

⑳

(8) Remove the ﬁlm-one-touch

󰼼

and sheet-one-touch

󰽇

Method of removing LCD cable

Part A

LCD cable
