163
Built-in Outputs Section 6-2

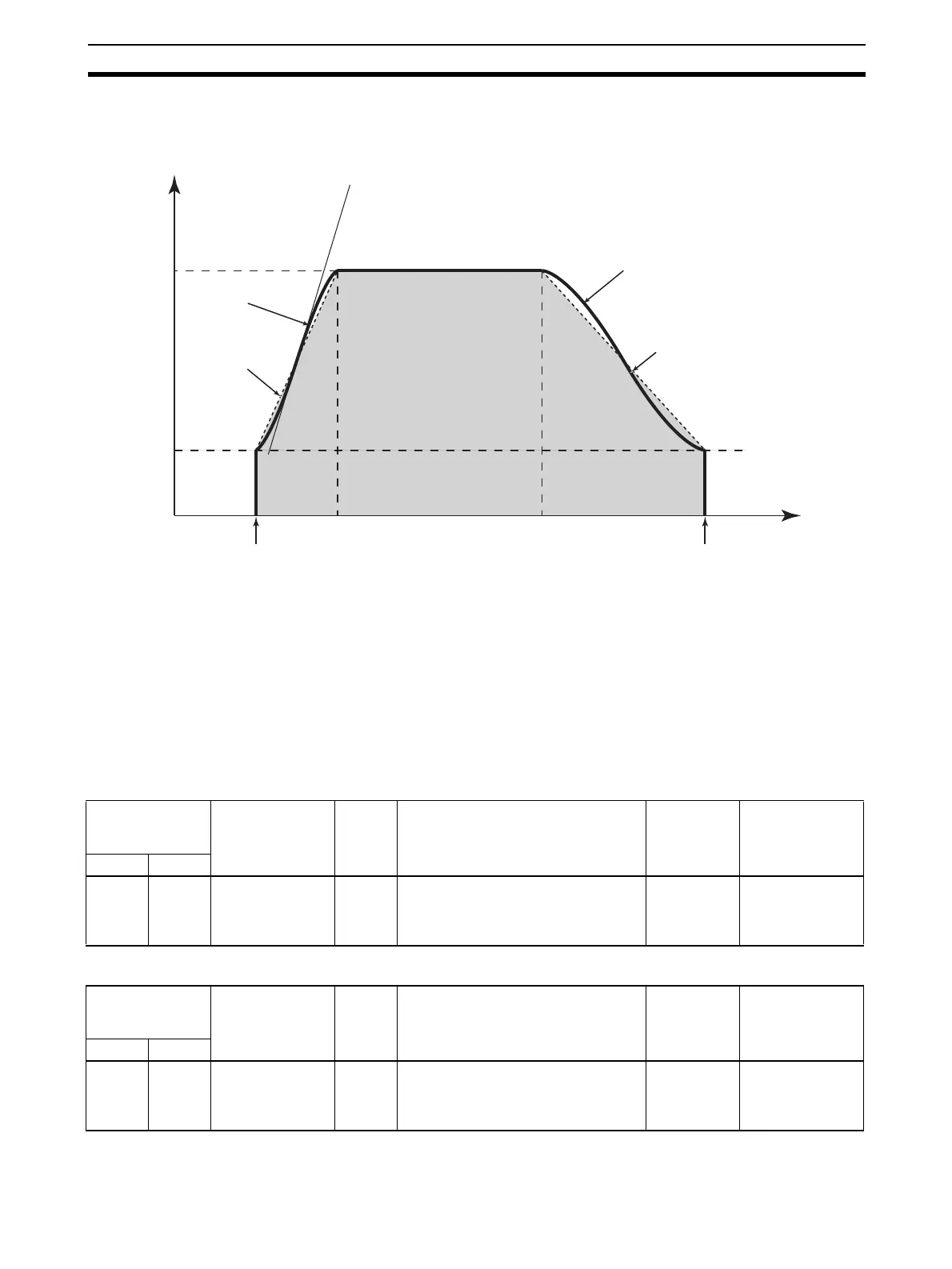

Output Pattern The output pattern for S-curve acceleration/deceleration is shown below.
Example for PLS2(887)
The same type of S-curve acceleration/deceleration can be used for
ACC(888) as well.
Note The curve for S-curve acceleration/deceleration is formed by applying a ter-
tiary function to the straight line of the set acceleration/deceleration rates (a
tertiary polynomial approximation). The maximum acceleration will be 1.5
times that of trapezoidal acceleration/deceleration for the same acceleration/
deceleration rate.
Procedure Make the following settings in the PLC Setup.
Pulse Output 0 Speed Curve (CJ1M CPU Unit Ver. 2.0 Only)
Pulse Output 1 Speed Curve (CJ1M CPU Unit Ver. 2.0 Only)
Stop frequenc
y
Time
Starting
frequency
Target
frequency
Pulse frequency
Set
acceleration
Specified
number of
pulses
PLS2
executed
Target frequency
reached
Deceleration point
Set
deceleration
Output stops
Acceleration
specified
for S-curve
acceleration
Deceleration
specified
for S-curve
deceleration
Max. acceleration
is 1.5 times
set acceleration
Programming
Console setting
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
256 12 to 15 0 hex: Trapezium
(linear)
1 hex: S-shaped
0 hex Specifies whether to use S-curve or
linear acceleration/deceleration rates
for pulse outputs with acceleration/
deceleration.
--- When power is
turned ON
Programming
Console setting
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
274 12 to 15 0 hex: Trapezium
(linear)
1 hex: S-shaped
0 hex Specifies whether to use S-curve or
linear acceleration/deceleration rates
for pulse outputs with acceleration/
deceleration.
--- When power is
turned ON
