6 Online Debugging
6 - 2
Vision System FH Series Operation Manual for Sysmac Studio (Z343)

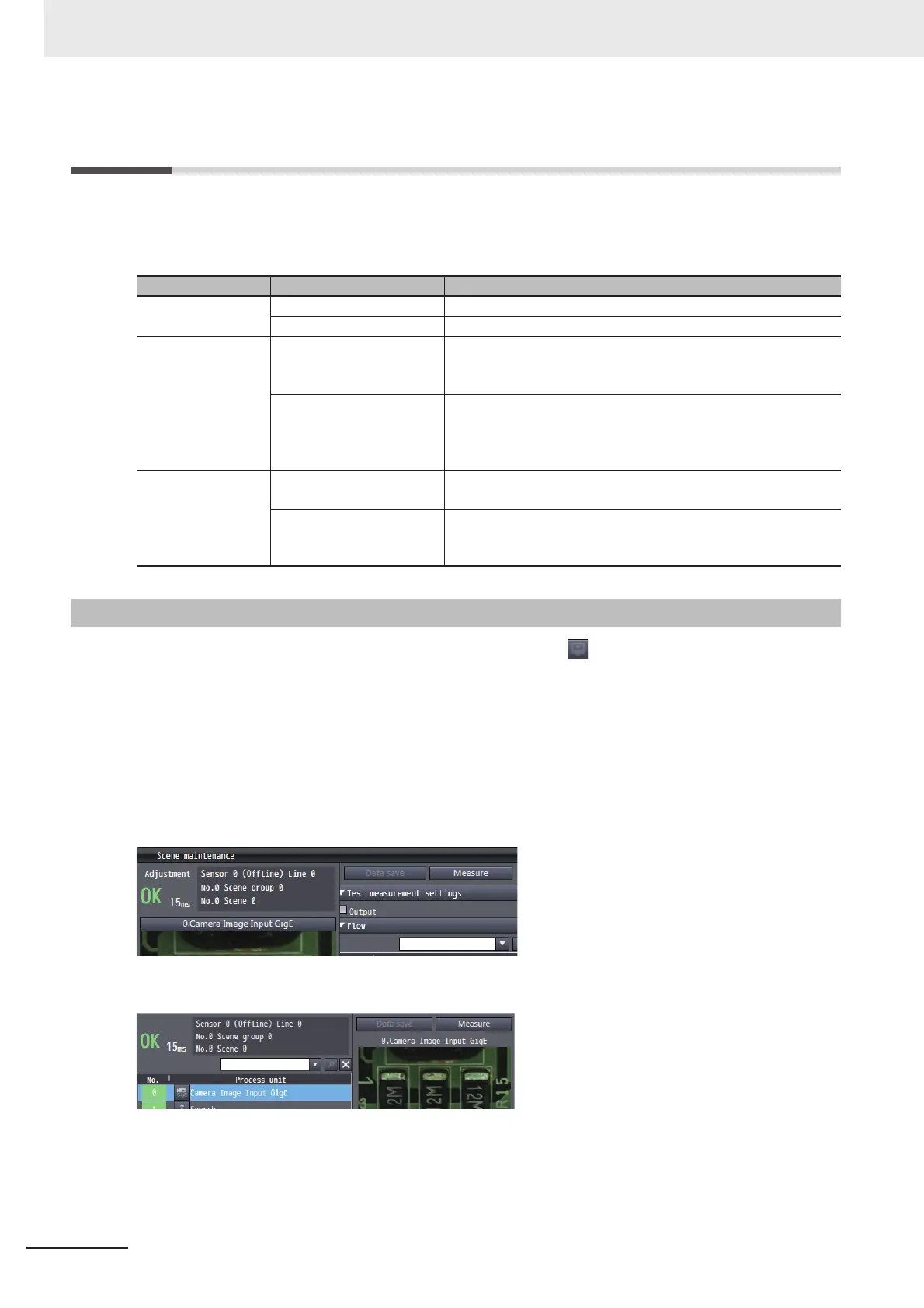

6-1 Performing Test Measurement
You can perform test measurement with the FH tools.
Select from the following three test measurement target images when connected with an online con-
nection.
To select a camera image, first click the camera image button ( ) in the file selection section.
Then select a camera image and click the [Measure] button.
[Measure] is provided in the following editing screens.
• Scene maintenance window
• Scene editing screen
• Processing unit editing screen
<Scene maintenance window>
<Scene editing screen>
Target Image Measurement Type Description
Camera image
Single measurement Measures a camera image.
Continuous measurement Continuously measures camera images.
File image
Single measurement
Allows you to select and measure a file image in the RAMDisk
or the external memory, i.e. USB memory of the FH Vision
Sensor.
Continuous measurement
Continuously measures file images in the RAMDisk or external
memory, i.e. USB memory of the FH vision sensor. Measure-
ment ends when measurement of the images within the same
folder finishes.
Logging image
Single measurement
Allows you to select and measure a logging image in the FH
vision sensor memory.
Continuous measurement
Continuously measures logging images in the FH vision sen-
sor memory. Measurement ends when measurement of all log-
ging images finishes.
