2 Basic Operations

2 - 42

Vision System FH Series Operation Manual for Sysmac Studio (Z343)

This section describes the following:

• How to download the Sysmac Studio data to the FH sensor controller when synchronizing the Sys-

mac Studio and the FH sensor controller,

• Procedures for transferring data from the Sysmac Studio via the external memory.

Use the following procedures to synchronize the data from the Sysmac Studio.

1 Save the settings data for the FH sensor controller that is in the Sysmac Studio to the external

memory.

2 Establish an online connection with the NJ/NX-series Controller to transfer the data from the

Sysmac Studio to the NJ/NX-series Controller.

3 Use the external memory that holds the data saved in Step 1 to load the data to the FH sensor

controller.

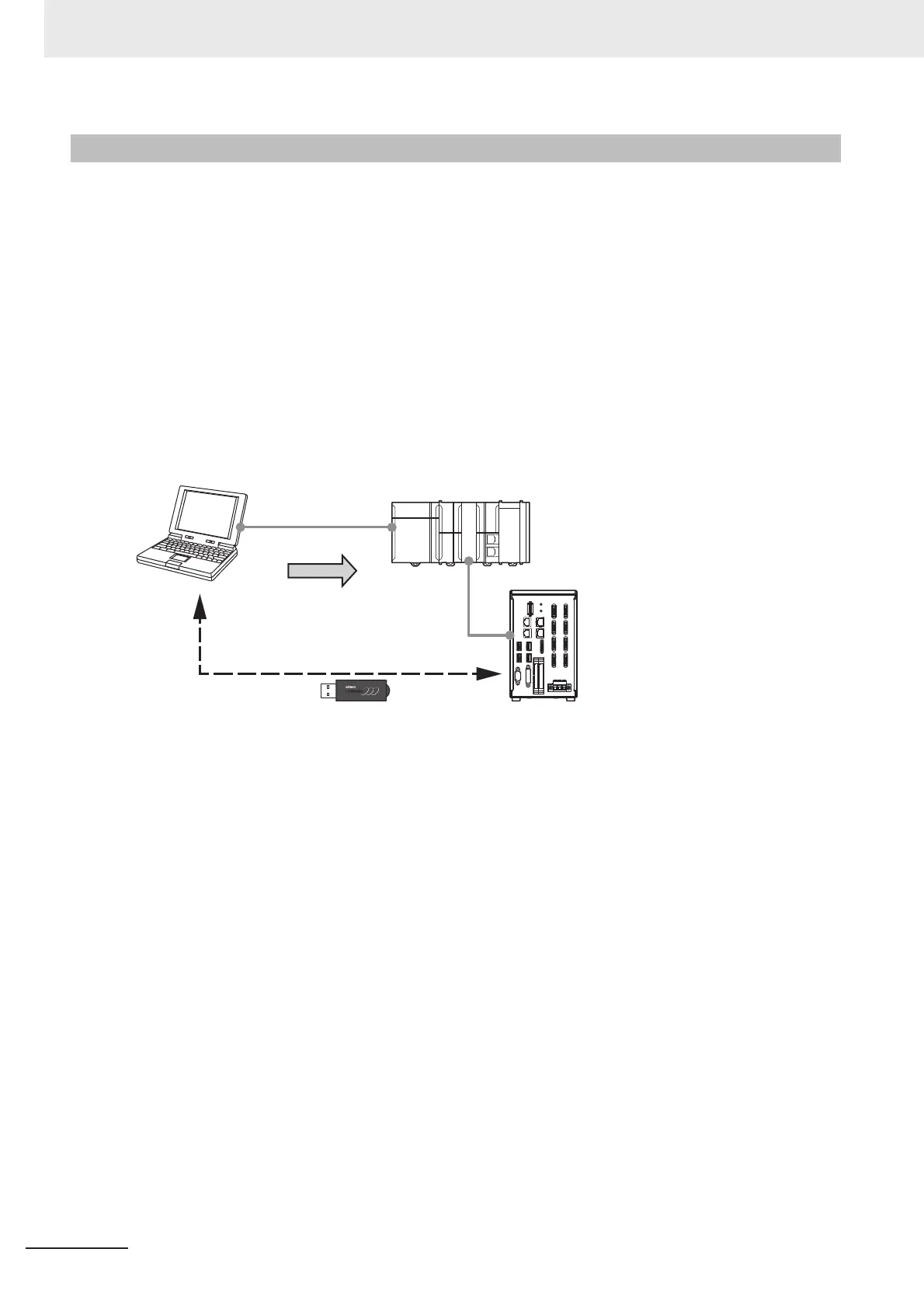

2-8-3 Transferring Data from the Sysmac Studio

USB/Ethernet

EtherCAT

Sysmac Studio NJ/NX

Downloading

USB memory/SD memory card
