6 Online Debugging
6 - 6
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
You can change the setting for displaying images in the scene maintenance window and monitor win-
dow.
Open the [Image display settings] item and change each items.
For details on the image display settings, refer to Image display settings on page 2-17.
You can switch the result display content of the processing unit by changing the sub image number.
For details, refer to the content of each processing unit in Vision System FH/FZ5 Series Processing
Item Function Reference Manual (Cat. No. Z341).
You can display multiple images by opening the [Image display settings] item and changing [Image lay-
out].
For details on the image display settings, refer to Image display settings on page 2-17.

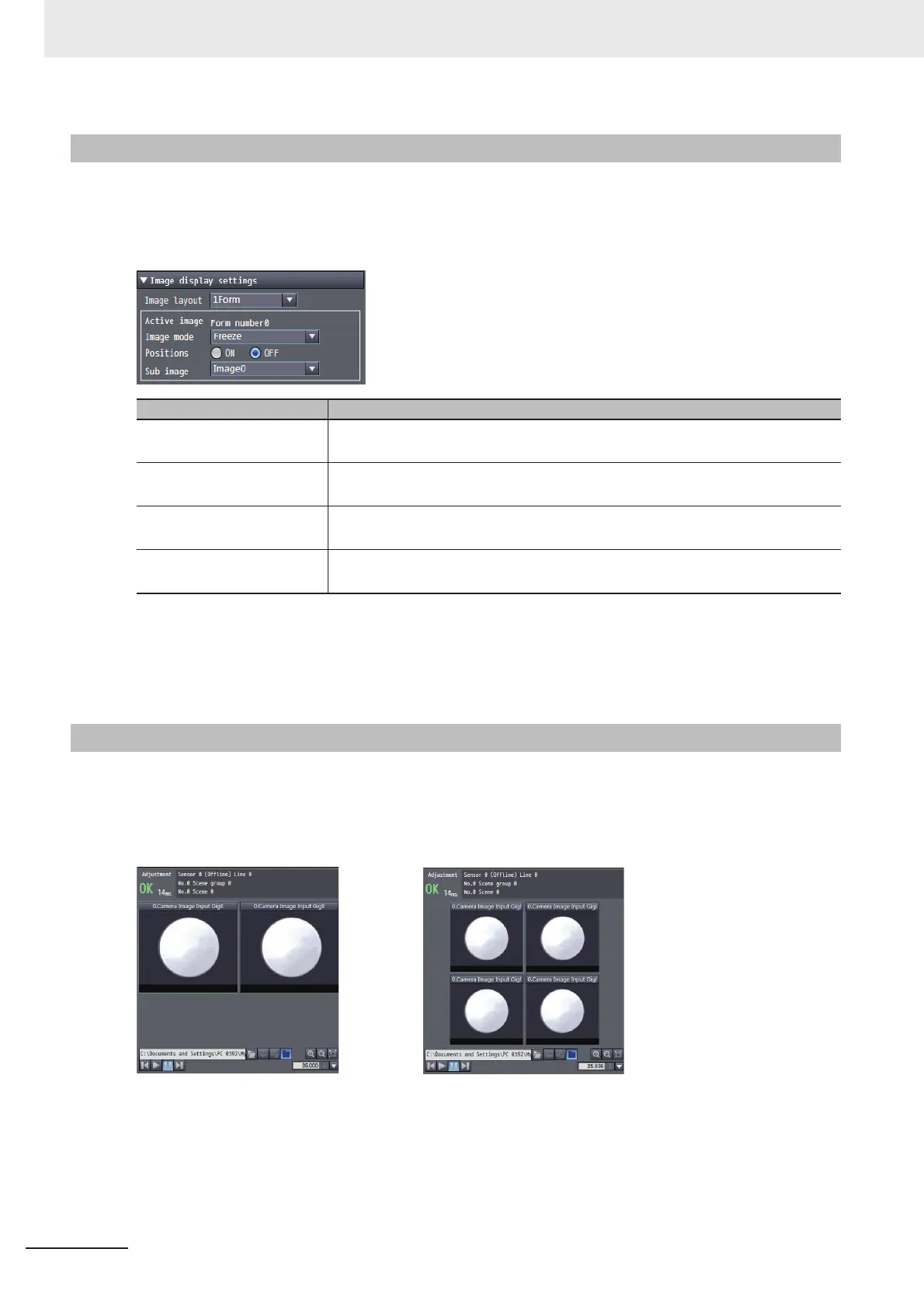

6-2-2 Changing the Image Display Settings
Item Description
Image layout
Selects the number of images to display.
Selection items: 1Form, 2Form, and 4Form
Image mode
Selects the image mode for the image with the focus on it.
Selection items: Through, Freeze, and NG image
Positions
Selects position list display for the image with the focus on it.
Selection items: OFF and ON
Sub image
Selects the sub image number for the image with the focus on it.
Selection items: Image0, Image1,..., image31
6-2-3 Checking Multiple Measurement Images at the Same Time
To Next Page
