4 Configuring Measurement Settings
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
4-2 Editing a Processing Unit
4
4-2-3 Color Extraction

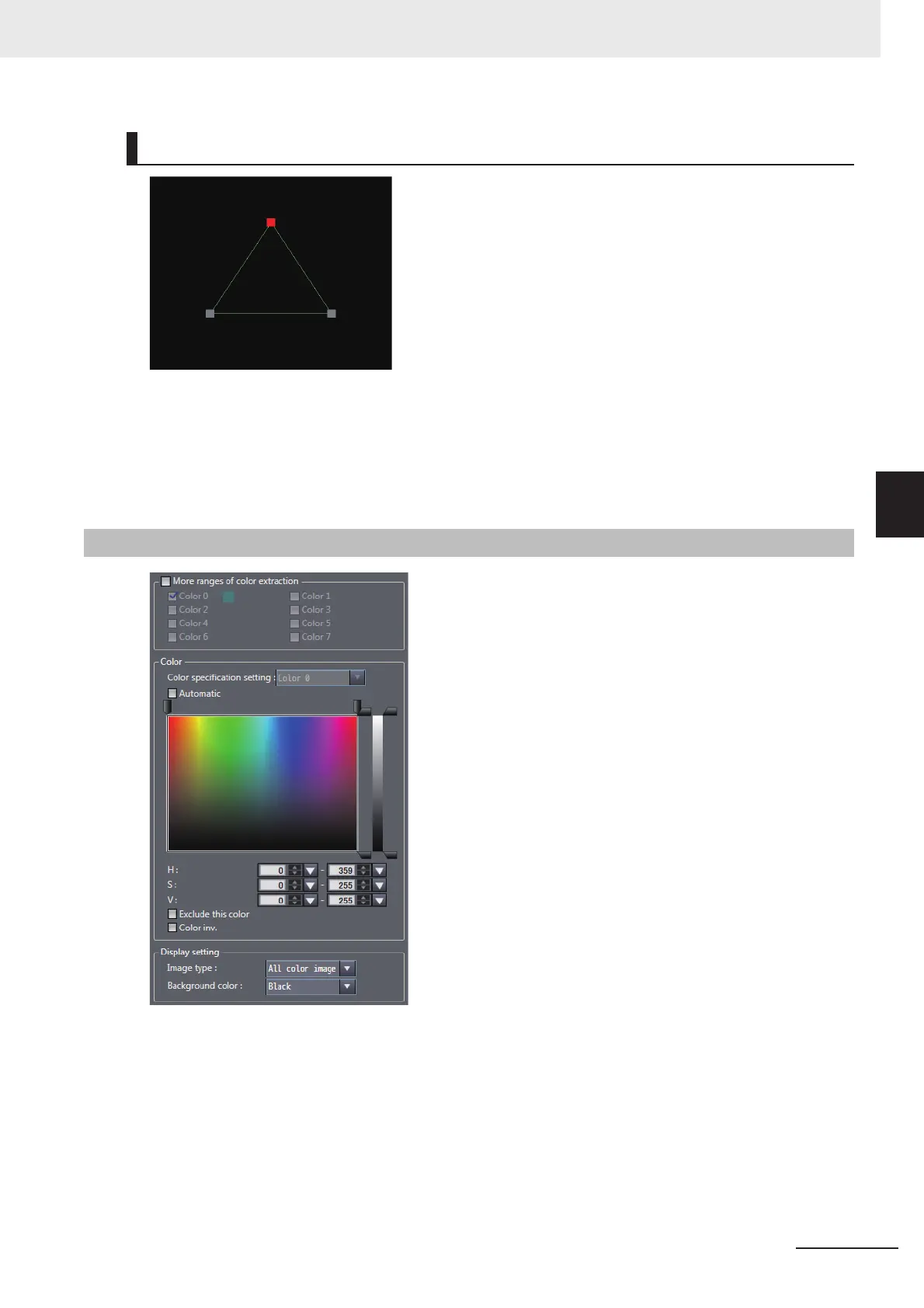

This function draws a polygon. Up to 10 vertices can be added.
Clicking any position on a side creates a new vertex.
You can change the position of a vertex by dragging it.
The polygon can be moved by clicking and then dragging the inside of the area.
You can specify up to eight colors.
Also, when the Automatic check box is selected, enclosing any part in a displayed image automatically
extracts the color of that part.
The color range can be specified by specifying the hue, saturation, and brightness.
The specifications are the same as for the user interface of the FH vision sensor.
For details, refer to Vision System FH/FZ5 Series Processing Item Function Reference Manual (Cat.
No. Z341).
Polygon
4-2-3 Color Extraction
