8 Other Useful Functions
8 - 20
Vision System FH Series Operation Manual for Sysmac Studio (Z343)

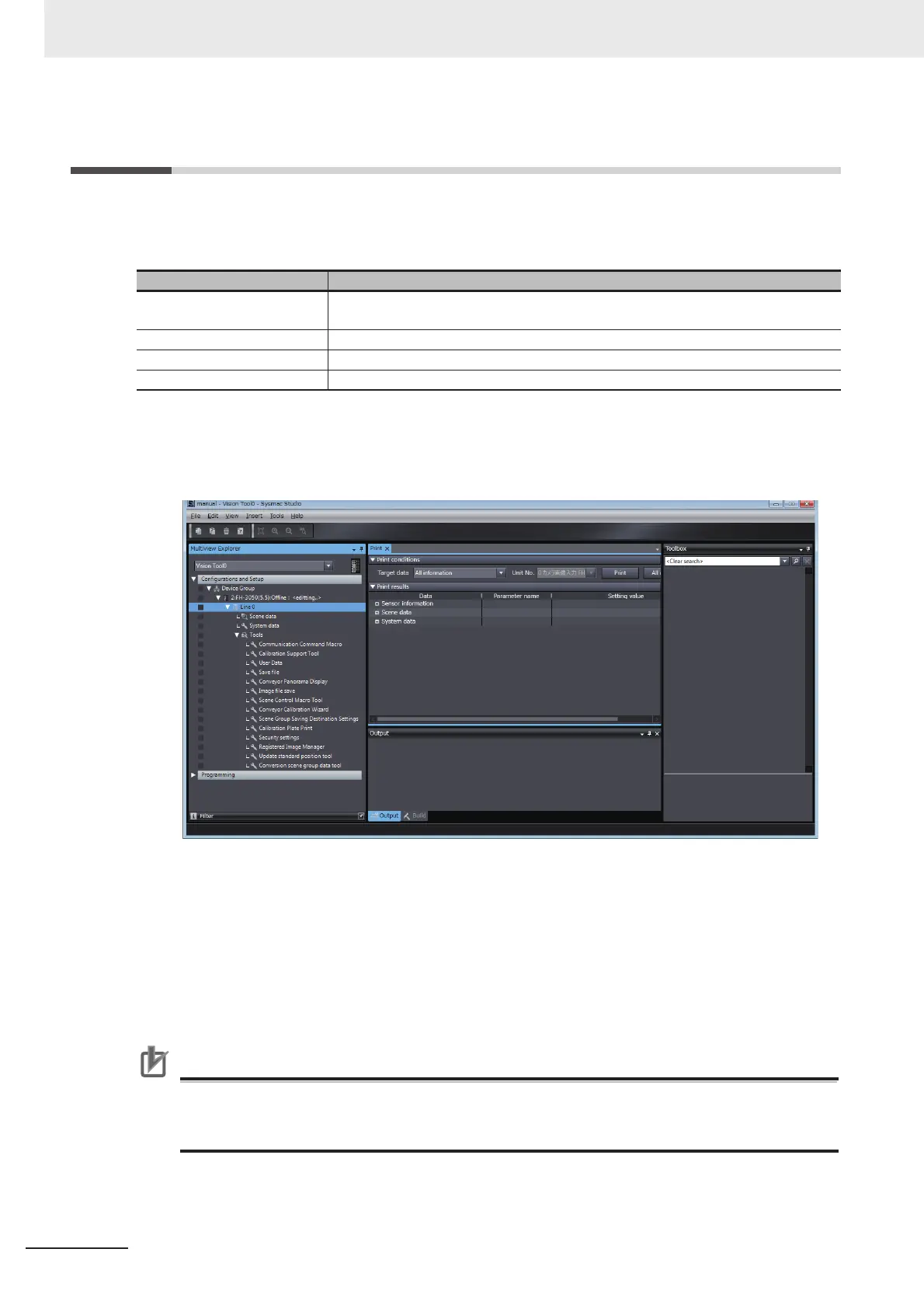

8-14 Print the Settings
With this function, it is possible to print the parameters set in the system data and currently selected
scene data.
1 Open the print window.
Right-click on [Line*] in the Multiview Explorer and select [Print]. The [Print] window is displayed
in the Edit pane.
2 Select the data to be printed.
Select the data to be printed from [Target data].
[Unit No.] should be selected when processing unit is selected from [Target data].
Select the parameter to be printed and expand the tree.
Click on [Expand all] to show all parameters.
3 Initiate printing.
Click on [Print] to print out the parameters shown.
Precautions for Correct Use
This command prints out only the parameters downloaded and uploaded with the Settings
download and upload tools. For details on the "Settings download and upload tools", refer to
Vision System FH/FZ5 Series User's Manual (Cat No. Z365).
Target data Description
All information Prints all of the sensor information, and parameters set in the system data and
the currently selected scene data.
Scene data Prints parameters set in the currently selected scene data.
System data Prints parameters set in the system data.
Processing unit Prints parameters set in the processing units.
To Next Page
