7 - 3
7 Offline Debugging
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
7-2 Offline Debugging of the Sensor Control Program and Sensor Operation (Only When Using Ether-
CAT Connection)
7
7-2 Offline Debugging of the Sensor
Control Program and Sensor Opera-
tion (Only When Using EtherCAT
Connection)
In a system built with EtherCAT, you can perform simulation with the sequence control of NJ/NX series
controller and operation of FH image sensor linked.
Therefore, offline debugging for operation up until the output of the result is possible for measurement
or various other processing performed when a measurement trigger or other control signal is input to
the FH image sensor.
This simulation function is available only in Sysmac Studio (standard edition).
Additional Information
This simulation is supported from the following versions:
• Sysmac Studio (Standard Edition) Ver. 1.08
• FH Software Ver. 5.1*

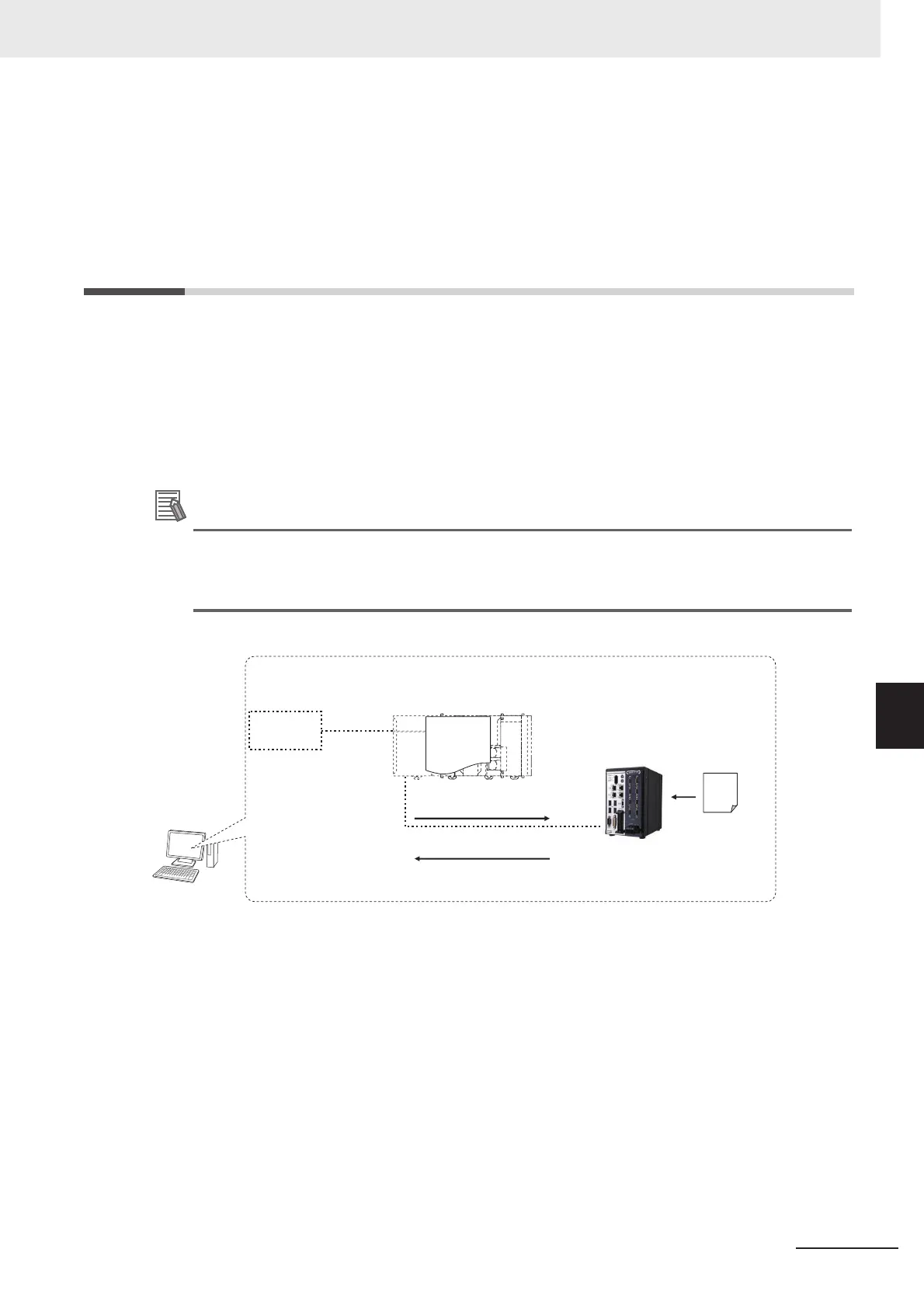

Computer
(1) Trigger signals and control
commands
EtherCAT online connection
FH Vision Sensor Simulator
(virtual Vision Sensor)
NJ/NX-series Controller Simulator (virtual Controller)
Image file
(images to measure)
Sysmac Studio
(2) Individual measurements and
control command processing
(3) Outputting measurement results to the
storage area in the NJ/NX-series Controller
Operations That Are Possible with Simulation
Sysmac
Studio
Simulator
connection
User
program
To Next Page
