Omron fh series Hardware Manual

3 - 49
3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
3-4 Lens
3

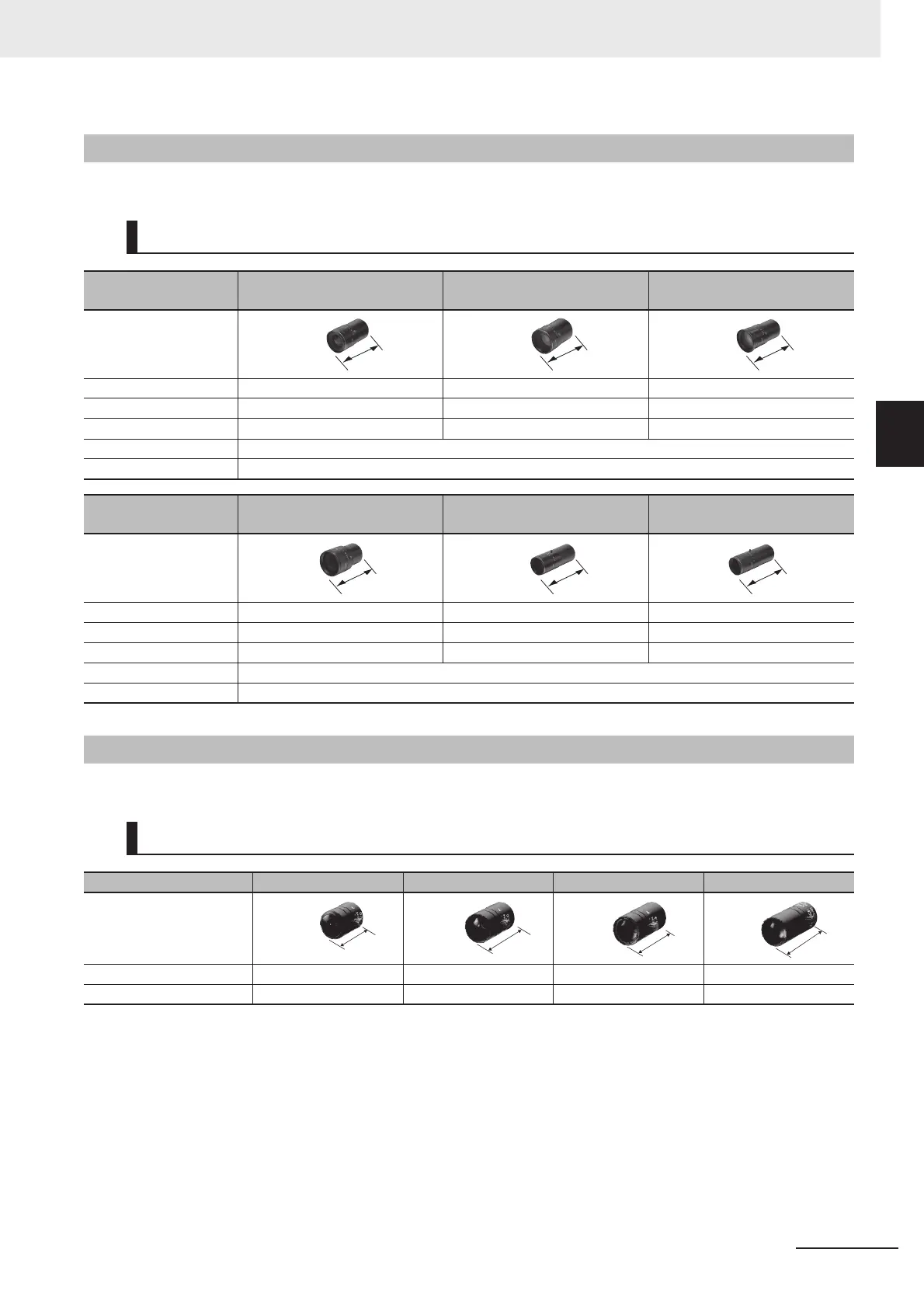

3-4-4 M42-mount Lens for Large Image Sensor
FH-S12 is recommended.
FH-SF, FZ-SF, FZ-SFC, FZ-SP, and FZ-SPC are recommended.
3-4-4 M42-mount Lens for Large Image Sensor
Specification
Model
3Z4S-LE
VS-L1828/M42-10
3Z4S-LE
VS-L2526/M42-10
3Z4S-LE
VS-L3528/M42-10
Appearance/Dimen-
sions (mm)
Focal length 18 mm 25 mm 35 mm
Aperture (F No.) 2.8 to 16 2.6 to 16 2.8 to 16
Filter size M55.0 P0.75 M55.0 P0.75 M62.0 P0.75
Maximum sensor size 1.8 inch
Mount M42 mount
Model
3Z4S-LE
VS-L5028/M42-10
3Z4S-LE
VS-L8540/M42-10
3Z4S-LE
VS-L10028/M42-10
Appearance/Dimen-
sions (mm)
Focal length 50 mm 85 mm 100 mm
Aperture (F No.) 2.8 to 16 4.0 to 16 2.8 to 16
Filter size M62.0 P0.75 M52.0 P0.75 M52.0 P0.75
Maximum sensor size 1.8 inch
Mount M42 mount
3-4-5 Lenses for Small Camera
Specification
Model FZ-LES3 FZ-LES6 FZ-LES16 FZ-LES30
Appearance/Dimensions
(mm)
Focal length 3 mm 6 mm 16 mm 30 mm
Aperture (F No.) 2.0 to 16 2.0 to 16 3.4 to 16 3.4 to 16
94
58.5 dia.
80
58.5 dia.
108
64.5 dia.
94.5
66 dia.
129.5
55.5 dia.
134.5
54 dia.
12 dia.
16.4
12 dia.
19.7
12 dia.
23.1
12 dia.
25.5
