Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Vision System FH-1000 and FH-3000 series is the BOX type Sensor Controller having functions,
high-speed, and safety, reliability, and maintainability of a machine embedded controller.
This series includes the previously supported image processing functions and with the addition of new
EtherCAT support, this series now also has the high-speed connectivity needed for connection with
programmable logic controllers and other devices with similar I/O requirements for EtherCAT communi-
cation.
With a maximum of 8 camera connections possible, high-speed image transfer, faster than previously
available, is now possible than herebefor.
OMRON provides Sysmac device which unified communication specification or deigned User Interface
specification. Vision System FH-1000 and FH-3000 series can be easily connected Sysmac device, i.e.
Machine Automation Controller or EtherCAT slave. Therefore the optimum functions or operations can
be realized.
The following is an example system configuration.

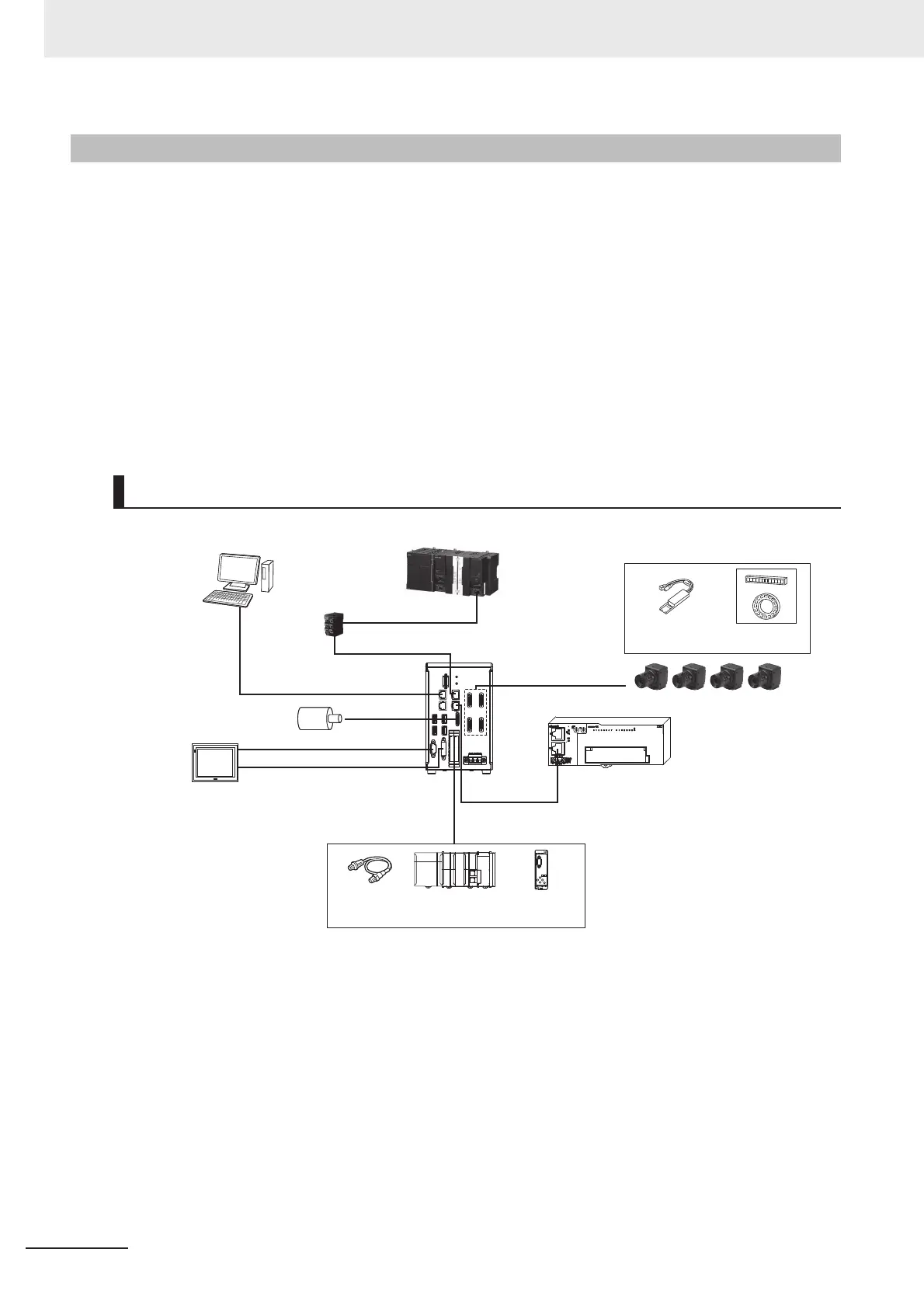

Example of the FH Sensor Controllers (4-camera type)
*1. To use STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum
foil tape) for EtherCAT and RJ45 connector.
*2. To use STP (shielded twisted-pair) cable of category 5 or higher for Ethernet and RJ45 connector.
2-1-2 FH-1000/FH-3000 Series
EtherCAT Connection for FH Series
Sysmac Studio
Standard Edition
Vision Edition
EtherCAT Cables
*1
EtherCAT junction slaves
Ethernet Cables
*2
Vision System
FH Sensor Controllers
Cameras
special cable for cameras
Another slave
(With built-in EtherCAT slave function)
EtherCAT Cables
*1
Machine Automation
Controller
NJ/NX series
Incremental
rotary encoder
special cable
special cable for Touch Panel Monitor
cable tor Touch Panel interface
special cable for I/O
Touch Panel Monitor
FH-MT12
PLC for
I/O control
Trigger input
sensor
Lighting
Controllers
Lighting
Controllers
External
Lightings
