2 Overview of FH/FZ5 series
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
2-1 Overview of System
2
2-1-3 FH-L Series
Vision System FH-L series is the small, low-cost, and BOX type Sensor Controller. This series includes
the necessary function for assembling machine and safety, reliability, and maintainability of a machine
embedded controller.
This series supports a maximum of 4 camera connections, making high-speed image transfer, faster
than previously available, possible.
*1. To use STP (shielded twisted-pair) cable of category 5 or higher for Ethernet and RJ45 connector.
Vision System FZ5 series is an LED integrated Sensor Controller with added positioning and inspection
functionality not available in the FZ4 series.
• EtherNet/IP, No-protocol Ethernet and PLC Link Connections
Example of the FZ5 Sensor Controllers (4-camera type)
*1. To use Straight or cross STP (shielded twisted-pair) cable of category 5 or higher for Ethernet and RJ45 con-
nector.

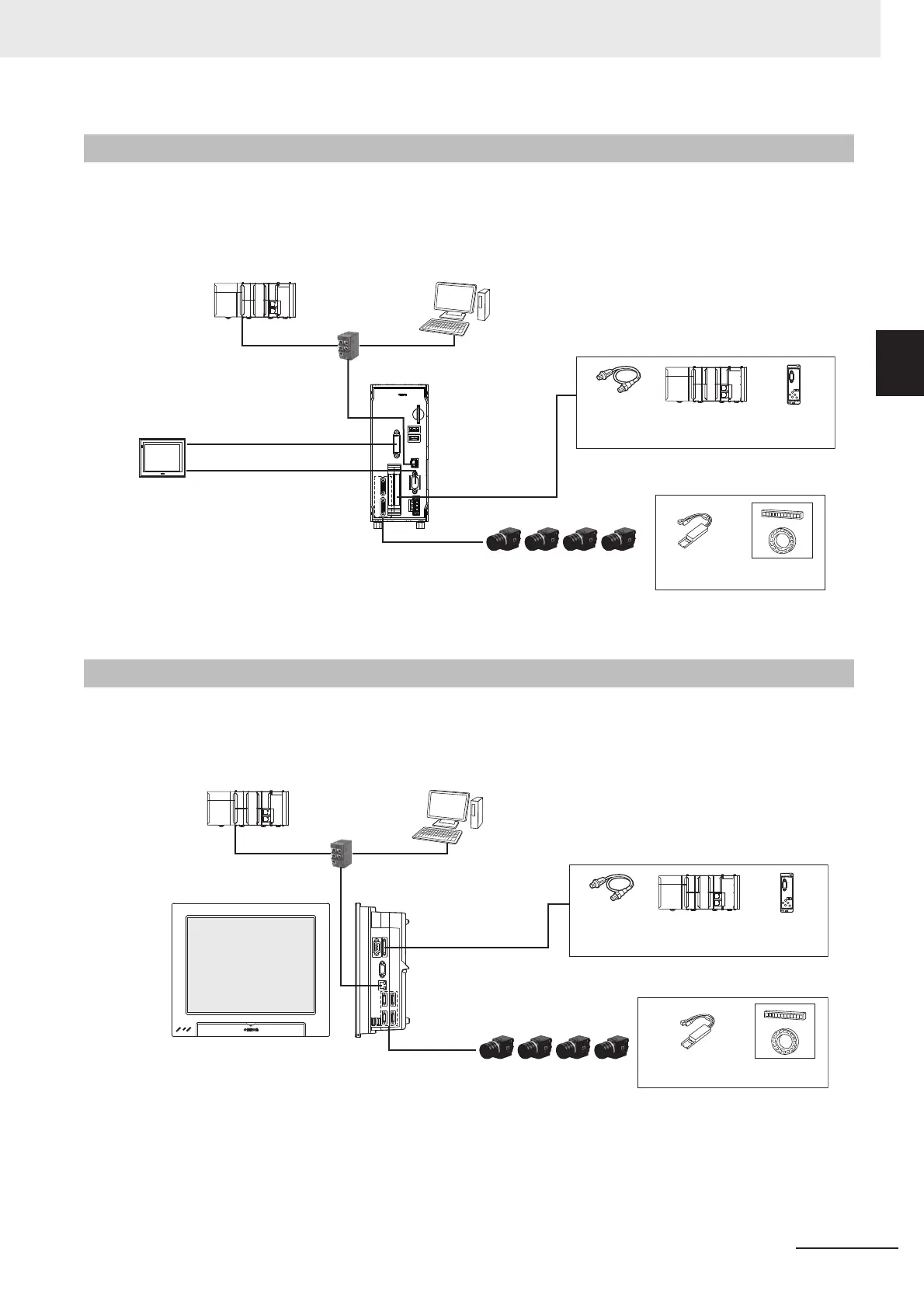

2-1-3 FH-L Series
2-1-4 FZ5 Series
cable tor Touch Panel
interface
Touch Panel Monitor
FH-MT12
special cable for
Touch Panel Monitor
PLC for I/O control
Personal
computer
Lighting
Controllers
External
Lightings
Cameras
Ethernet Cables
*1
special cable for
cameras
special cable for I/O
PLC for
I/O control
Vision System
FH-L Sensor Controller
Industrial Switching Hubs for
EtherNet/IP and Ethernet
Trigger input
sensor
Lighting
Controllers
Lighting
Controllers
External
Lightings
Cameras
Ethernet Cables
*1
special cable for
cameras
special cable for I/O
PLC for
I/O control
PLC for I/O control
Vision System
FZ5 Sensor Controllers
Industrial Switching Hubs for
EtherNet/IP and Ethernet
Personal
computer
Trigger input
sensor
Lighting
Controllers
