Omron fh series Hardware Manual

1 Confirm the Package
1 - 6

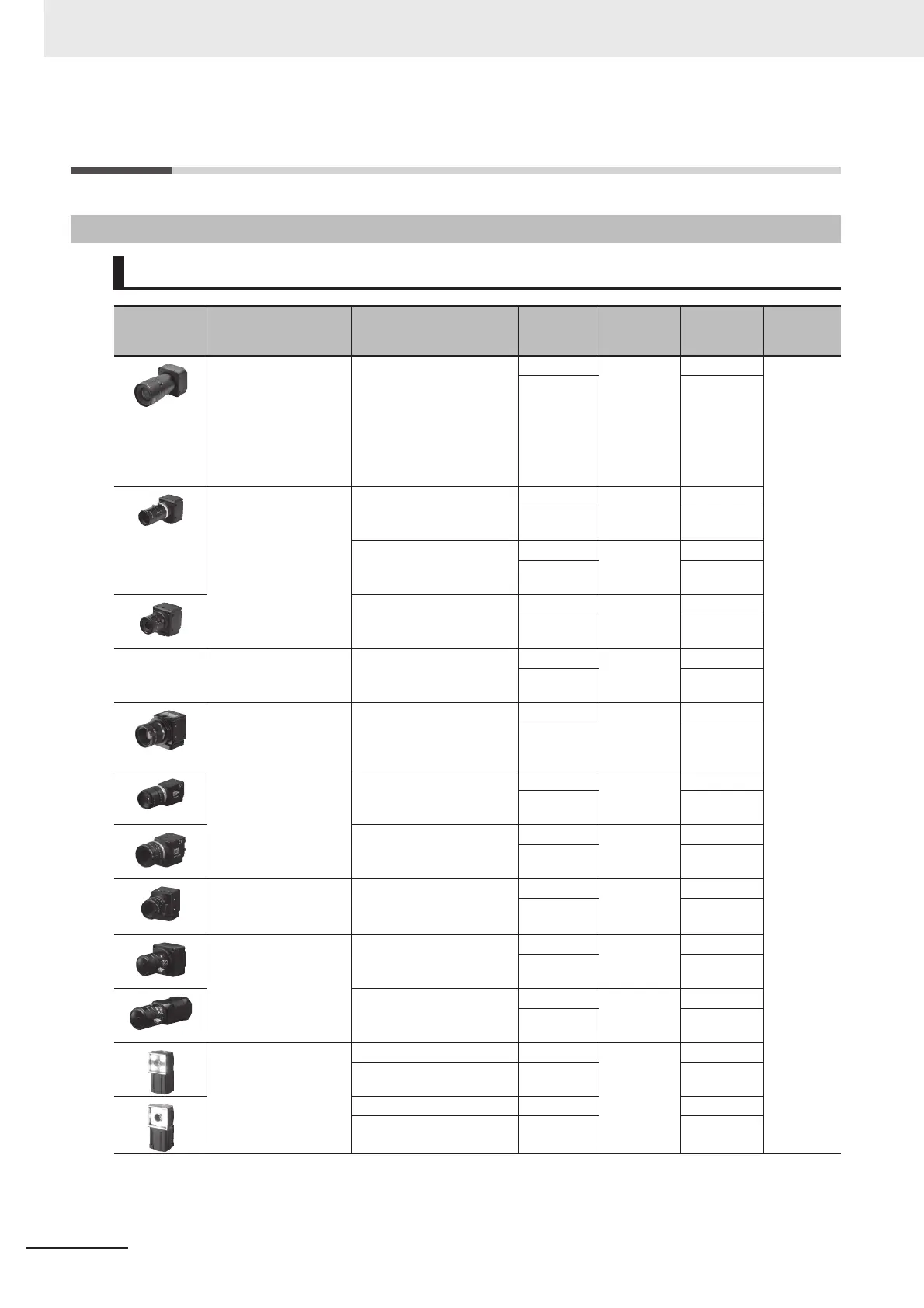

Vision System FH/FZ5 series Hardware Setup Manual (Z366)
1-2 Sold Separately
1-2-1 Cameras and Related
Camera
Appearance Type Description
Color /
Mono-
chrome
Acquisition
Time
Model Reference
High-speed Digital
CMOS Cameras
(Lens required)
12 megapixels
(Up to four cameras can be
connected to one Controller.
Up to eight cameras other
than 12 megapixels cam-
eras can be connected to a
FH-3050-20 or a
FH-1050-20.)
Color
25.7 ms
*1
*1. Frame rate in high speed mode when the camera is connected using two camera cables. For other conditions,
please refer to 3-2-1 High-speed digital CMOS Camera (FH-S camera series) on page 3-23.
FH-SC12
Mono-
chrome
FH-SM12
High-speed Digital
CMOS Cameras
(Lens required)
4 megapixels
Color
8.5 ms
*1
FH-SC04
Mono-
chrome
FH-SM04
2 megapixels
Color
4.6 ms
*1
FH-SC02
Mono-
chrome
FH-SM02
0.3 megapixels
Color
3.3 ms
FH-SC
Mono-
chrome
FH-SM
Digital CCD Cameras
(Lens required)
5 megapixels
Color
71.7 ms
FH-SC05R
Mono-
chrome
FH-SM05R
Digital CCD Cameras
(Lens required)
5 megapixels
(When connecting
FZ5-L35, up to two cam-
eras can be connected.)
Color
62.5 ms
FZ-SC5M2
Mono-
chrome
FZ-S5M2
2 megapixels
Color
33.3 ms
FZ-SC2M
Mono-
chrome
FZ-S2M
0.3 megapixels
Color
12.5 ms
FZ-SC
Mono-
chrome
FZ-S
High-speed Digital
CCD Cameras
(Lens required)
0.3 megapixels
Color
4.9 ms
FZ-SHC
Mono-
chrome
FZ-SH
Small Digital
CCD Cameras
(Lenses for small cam-
era required)
0.3 megapixels flat type
Color
12.5 ms
FZ-SFC
Mono-
chrome
FZ-SF
0.3 megapixels pen type
Color
12.5 ms
FZ-SPC
Mono-
chrome
FZ-SP
Intelligent Compact
Digital CMOS Cameras
(Camera + Manual
Focus Lens + High
power Lighting)
Narrow view Color
16.7 ms
FZ-SQ010F
Standard view Color FZ-SQ050F
Wide View (long-distance) Color FZ-SQ100F
Wide View (short-distance) Color FZ-SQ100N
