3 Configuration
3 - 38
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

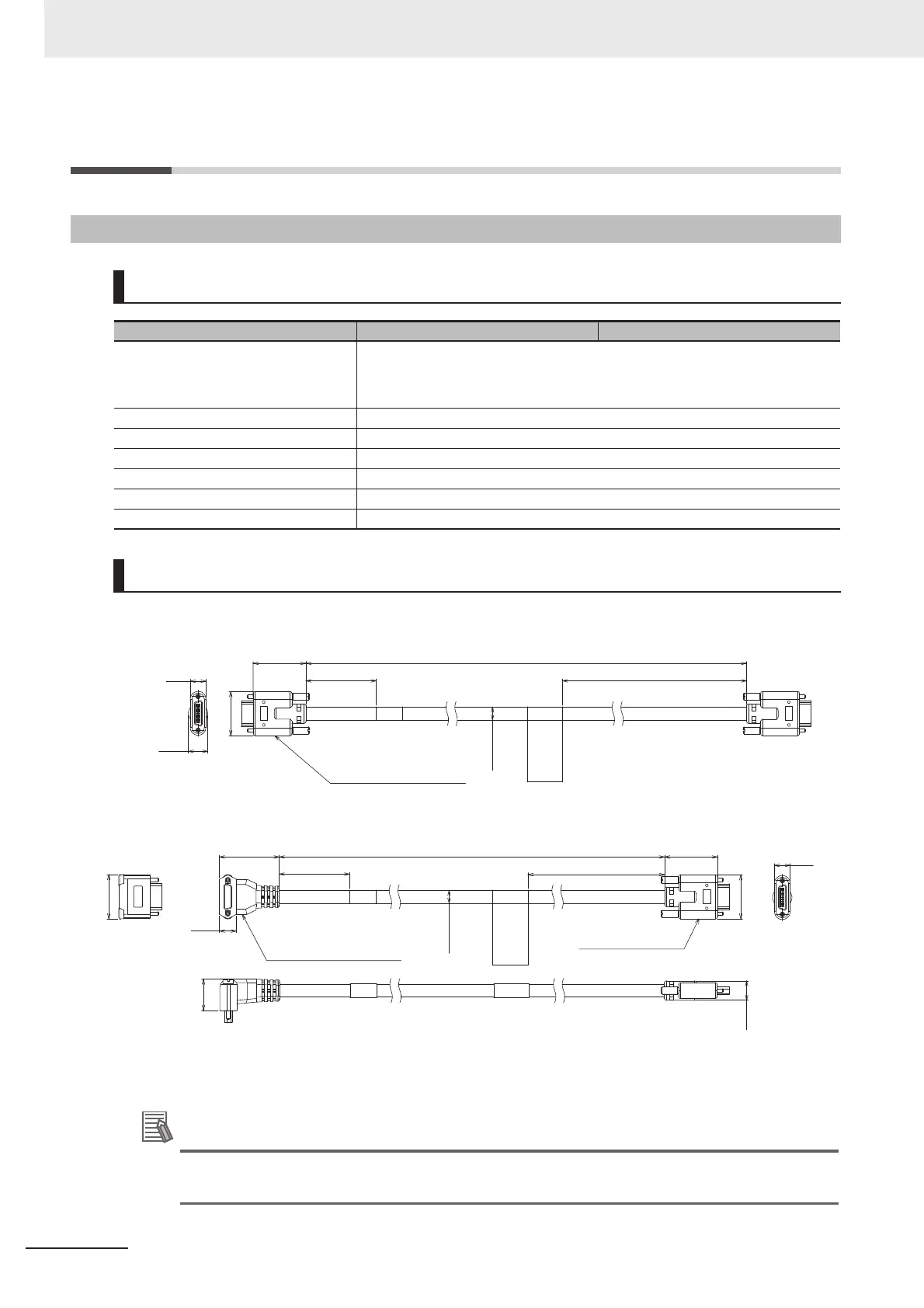

3-3 Camera Cable
z
Camera Cable: FZ-VS3
z
Right-angle Camera Cable: FZ-VSL3
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity.
Please ensure that the name plate side of the cable is connected to the controller.
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.
3-3-1 Camera Cables and Right-angle Camera Cable
Specification
Model FZ-VS3 (2 m) FZ-VSL3 (2 m)
Shock resistiveness (durability) 10 to 150 Hz
Single amplitude 0.15 mm
3 directions, 8 strokes, 4 times
Ambient temperature range Operation and storage: 0 to 65°C (with no icing or condensation)
Ambient humidity range Operation and storage: 40 to 70%RH (with no condensation)
Ambient atmosphere No corrosive gases
Material Cable sheath, connector: PVC
Minimum bending radius 69 mm
Weight Approx. 170 g
Dimensions
26-pin
rectangular connector
(40)
(100)
7.5 dia.
(25)
L (*1)
(*2)
(30)
(9)
(11)
(25)
(18)
(11)
26-pin
rectangular connector
26-pin
rectangular connector
L (*1)
(34)
7.5 dia.
(40) (100)
(10)
(30)
(25)
(9)
(*2)
