1 Confirm the Package
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
1-2 Sold Separately
1

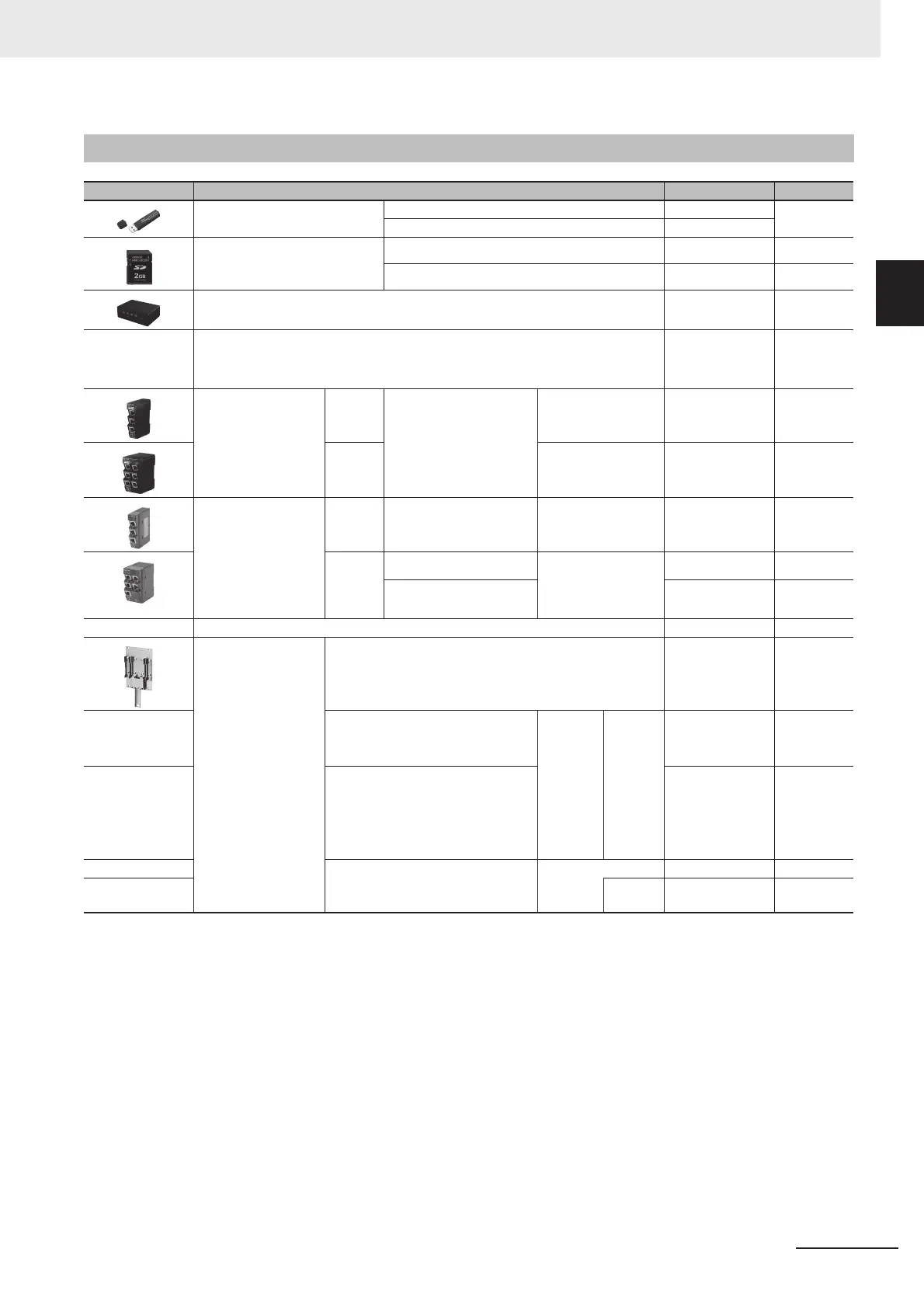

1-2-4 Accessories
1-2-4 Accessories
Appearance Description Model Reference
USB Memory 2 GB FZ-MEM2G
8 GB FZ-MEM8G
SD memory card
2 GB
HMC-SD291
4 GB
HMC-SD491
USB/Monitor Switcher FZ-DU
---
Mouse
Driverless wired mouse
(A mouse that requires the mouse driver to be installed is not supported.)
---
EtherCAT junction
slaves
3 port Power supply voltage:
DC20.4V to DC28.8V
(DC24V-15% to +20%)
Current consump-
tion: 0.22 A
GX-JC03
6 port Current consump-
tion: 0.22 A
GX-JC06
Industrial Switching
Hubs for EtherNet/IP
and Ethernet
3 port Failure detection: None Current consump-
tion: 0.22 A
W4S1-03B
5 port Failure detection: None Current consump-
tion: 0.22 A
W4S1-05B
Failure detection:
Supported
W4S1-05C
--- Calibration Plate FZD-CAL
Common items
related to DIN rail
DIN rail mounting bracket
FH-XDM-L
---
• Length: 75.5/95.5/115.5/200 cm
• Material: Iron
• Surface Processing: Conductive
DIN rail Phoenix
Contact
NS 35/ 7,5 PERF
---
• Length: 75.5/95.5/115.5/200 cm
• Material: Iron
• Surface Processing: Conductive
Need two wo End Plate (Model
PFP-M) each OMRON CPU lacks.
NS 35/ 15 PERF
--- Need two End Plates each Sensor
Controller.
End Plate PFP-M
---
Phoenix
Contact
NS 35/ 15 PERF
