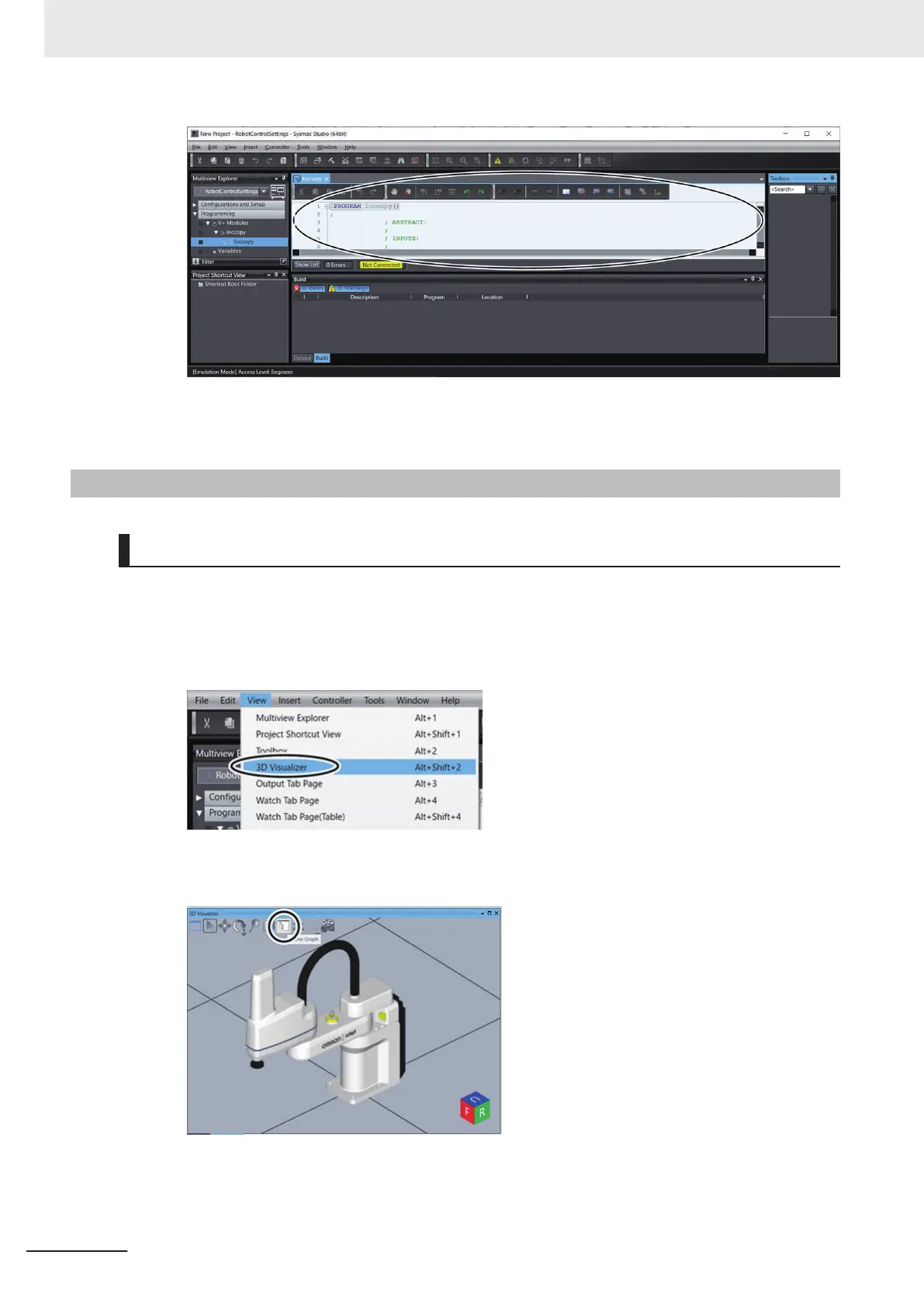

5 Create the program in the Edit Pane.
3-3-5
Placing 3D Shape Data
Making the Robot Motion Range Visible
You can make the operating range of the robot visible on the 3D Visualizer. Making the operating
range visible makes it easier to set the position of the robot.
1 Select 3D Visualizer
from the View menu on the main window of the Sysmac Studio.
2 In the 3D Visualizer, click the Scene Graph icon.
The Scene Graph dialog box is displayed.
3 Implementation Example of Static Pick-and-place Equipment
3-34
NJ-series Robot Integrated System Startup Guide (O049)
