Part Names and Functions of the Sys-
mac Studio Window

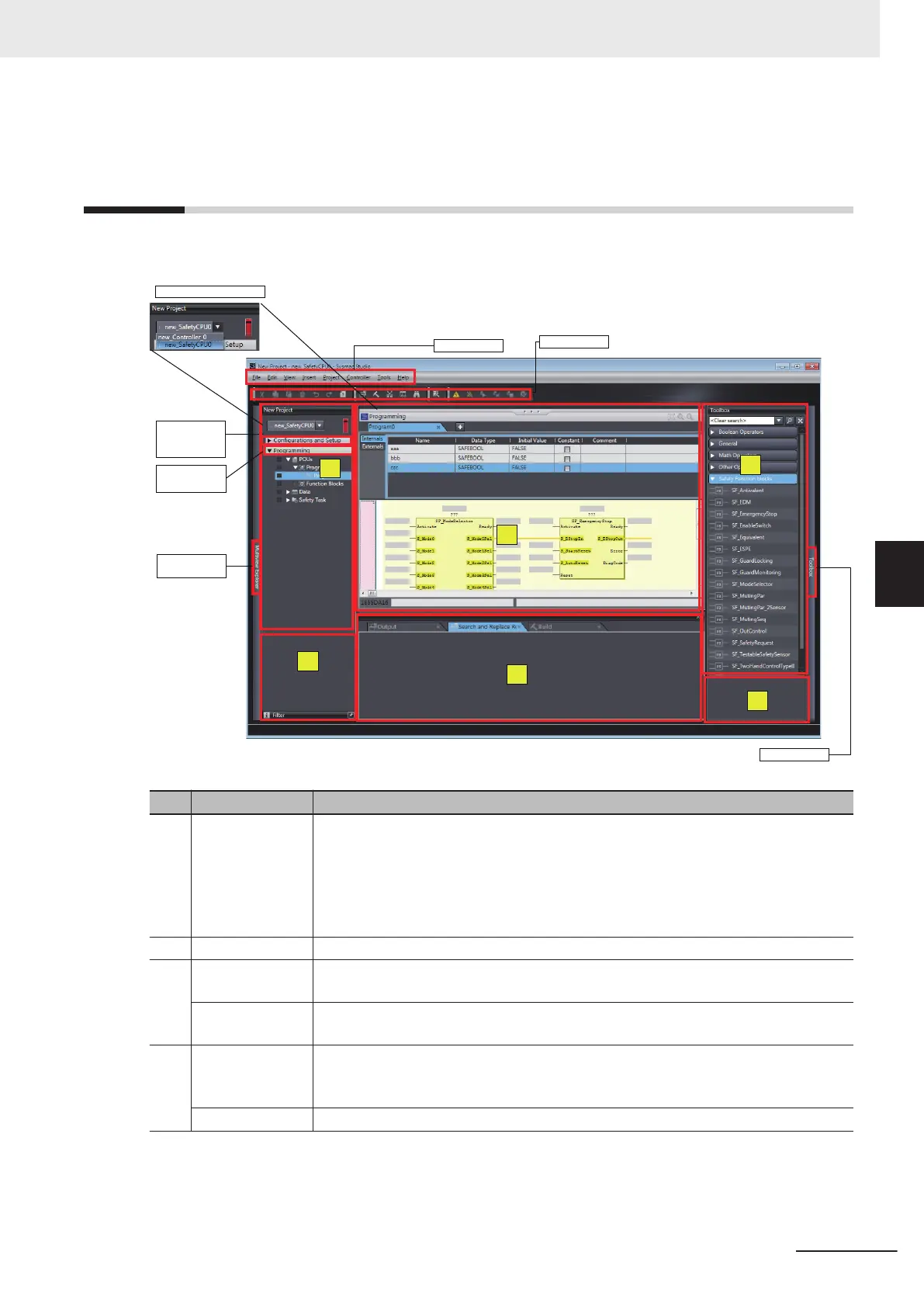

This section gives the names of the parts of the Sysmac Studio Window.
Menu bar
Toolbar
Show/hide bar
Programming
Header
(f)
(a)
(b)
(c)
(e)
Show/hide bar
(d)
Controller Selection Box
Use this box to select the Safety CPU Unit or the NJ/NX-series CPU Unit.
The tab page will change between the Safety CPU Unit Setup and Programming View and the NJ/NX-series CPU Unit Setup
and Programming View.
Configurations
and Setup
Header
Item Name Function
(a) Multiview Explor-
er
This pane is your access point for all Sysmac Studio data that is related to the Safety
CPU Unit.
It has a Controller Selection Box, and is separated into a Configurations and
Setup Layer and a Programming Layer
.
Use the
Controller Selection Box to select the Safety CPU Unit or NJ/NX-series
CPU Unit.
(b) Edit Pane The Edit Pane is used to display and edit the data for any of the items.
(c) Toolbox The Toolbox shows the objects that you can use to edit the data that is displayed in
the Edit Pane.
Search and Re-
place Pane
In this pane, you can search for and replace strings in the data in the Programming
Layer of the Multiview Explorer
.
(d)
Controller Status
Pane
This pane shows the operating status of the Safety CPU Unit. The Controller Status
Pane is displayed only while the Sysmac Studio is online with the Safety CPU Unit
or
when the Simulator is running.
Simulation Pane This pane is used to start and stop the Safety CPU Unit Simulator.
