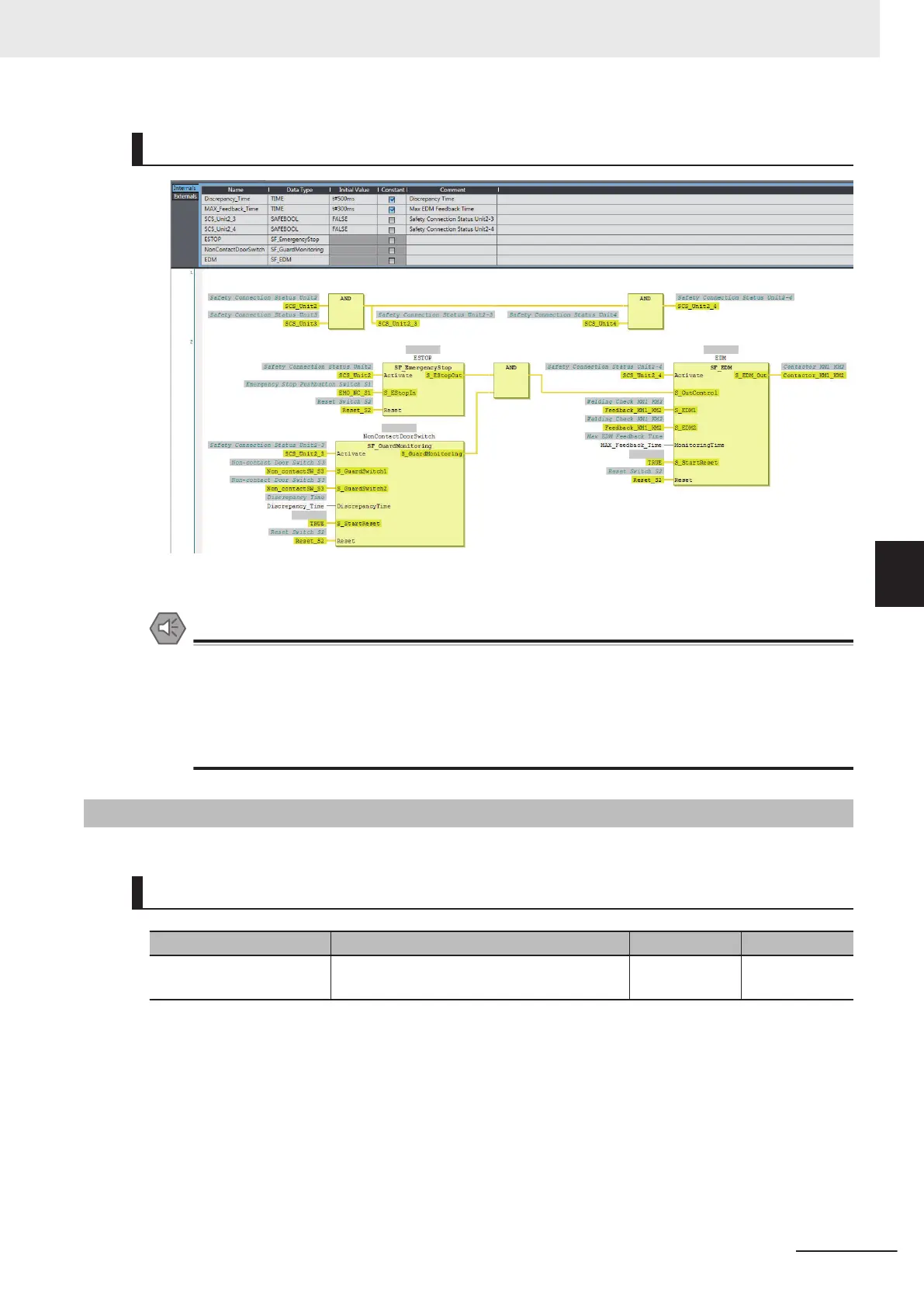

Program
Precautions for Safe Use
• Test the functionality every six months to detect welded contactor contacts.
•
The customer is responsible for attaining conformance of the entire system to standards.
•
To detect electrical and mechanical failures, use a combination of redundant semiconductor
output contacts and redundant mechanical output devices.
• Refer to ISO 14119:2013 for additional measures to minimize the possibility of interlocking
devices associated with guards from being disabled.
A-3-8
D40Z Non-contact Door Switches
Application Overview
Safety category/PL Safety device Stop category Reset
Equivalent to 4/PLe
(Safety Light Curtain)
• Safety light curtain
• Emergency stop pushbutton
0 Manual
If the light in the safety light curtain S3 is interrupted and the non-contact door switch S4 turns OFF at
the same time, the outputs are turned OFF.
The outputs also turn OFF when emergency pushbutton S1 is pressed.
Appendices
A - 53
NX-series Safety Control Unit User's Manual (Z930)
A-3 Application Examples
A
A-3-8 D40Z Non-contact Door Switches
To Next Page
