Uploading Configuration Information
and Safety Application Data
This section describes how to use the Sysmac Studio to transfer the configuration information and
safety programs from the Safety Control Unit to the computer.
7-11-1
Outline
You can transfer the settings of the Safety Control Unit and the safety programs from the Safety Con-
trol Unit to the computer.
Paths for Going Online
There are the following two ways to connect the Sysmac Studio to the Safety CPU Unit.
• USB connection or Ethernet connection to the NJ/NX-series CPU Unit
*1
• USB Connection to the Communications Coupler Unit
*1. Connection is possible when you use an NJ/NX-series CPU Unit and EtherCAT Coupler Unit.

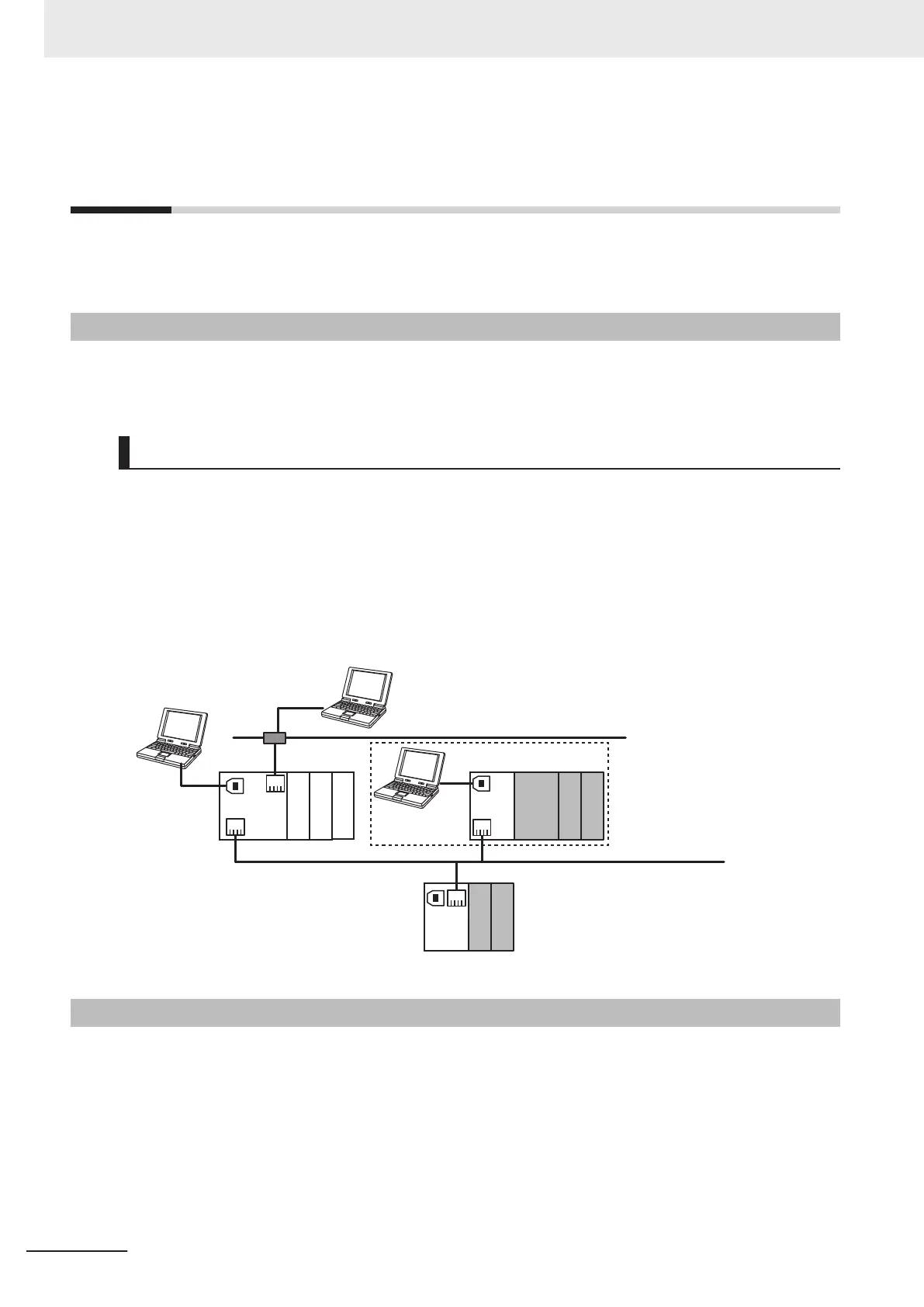

A configuration example for an EtherCAT Slave Terminal is given below.
NJ/NX-series
CPU Unit
Sysmac Studio
Ethernet
Sysmac Studio
USB
Sysmac Studio
USB
Coupler
Unit
Coupler
Unit
Safety
CPU
Unit
Safety Output
Safety Input
Safety Output
Safety Input
EtherCAT
EtherNet/IP
7-11-2
Uploading Data for a Connection to an NJ/NX-series CPU Unit
When you use an EtherCAT Coupler Unit, you can connect the Sysmac Studio to a USB or Ethernet
port on the NJ/NX-series CPU Unit to upload the configuration information and safety application data.
Use the following procedure to upload the data.
1 Select the NJ/NX-series CPU Unit from the Controller Selection Box in the Multiview Explorer
on the Sysmac Studio to change to the NJ/NX-series CPU Unit Setup and Programming V
iew
.
2 Set the communications path to the NJ/NX-series CPU Unit.
7 Checking Operation and Actual Operation
7 - 60
NX-series Safety Control Unit User's Manual (Z930)
