Omron OMNUC R88D-WT15HF User Manual

2-121

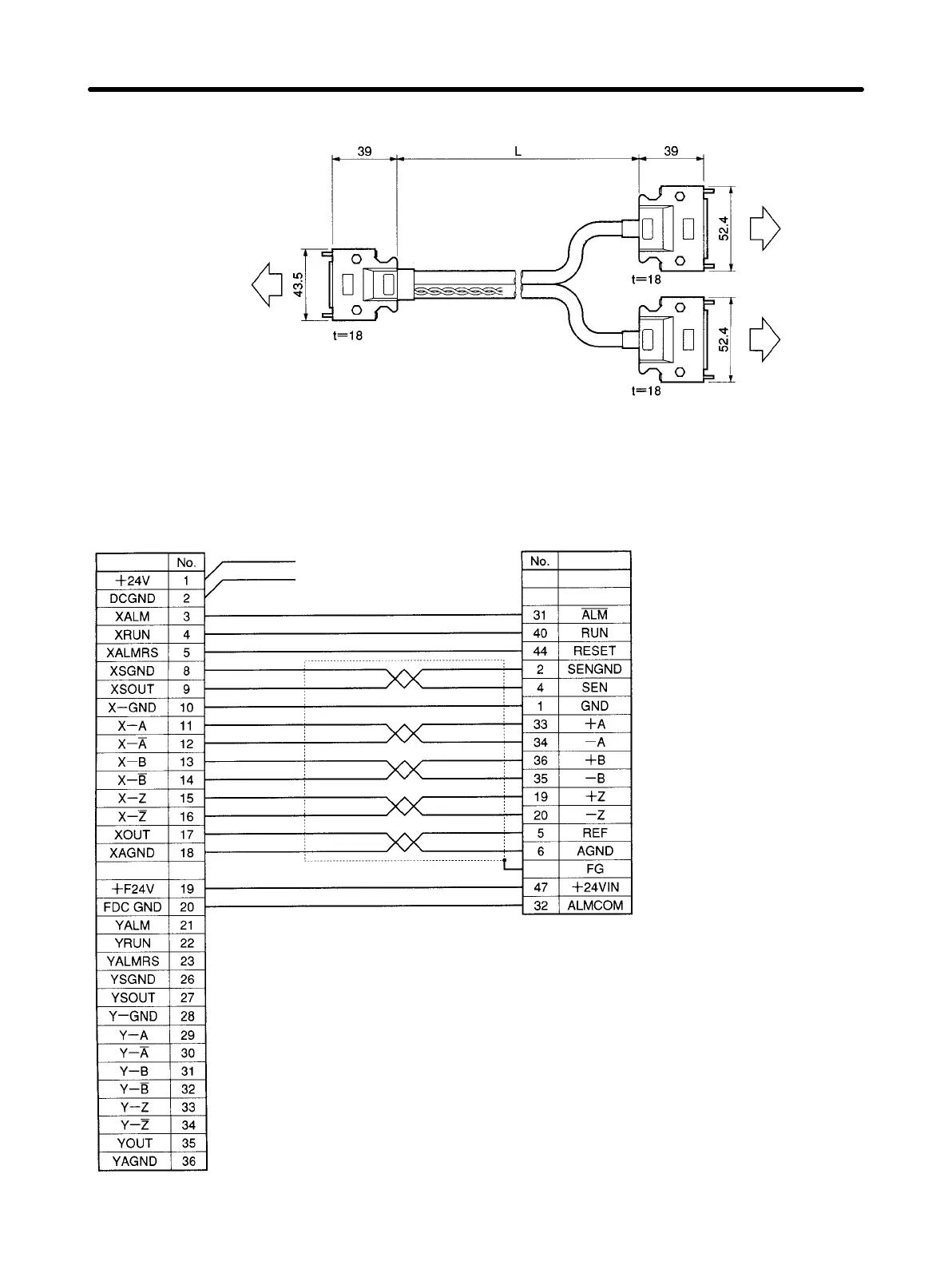

Cables for Two Axes
CS1W-MC221/421(-V1)
CV-500-MC221/421
C200H-MC221
R88D-WTj
R88D-WTj
Motion Control Unit
Servo Driver
Servo Driver
D Wiring
Cables for One Axis
Motion Control Unit
Signal Signal
Connector plug:
10150-3000VE (Sumitomo 3M)
Connector case:
10350-52A0-008 (Sumitomo 3M)
Connector plug:
10136-3000VE (Sumitomo 3M)
Connector case:
10336-52A0-008 (Sumitomo 3M)
White/Black –
Pink/Black –
Yellow/Black –
Gray/Black –
Gray/Red –
Orange/Black – –
White/Red –
White/Black –
Yellow/Red –
Yellow/Black –
Pink/Red –
Pink/Black –
Orange/Red –
Orange/Black –
Orange/Black –
Gray/Black –
AWG20 Red
AWG20 Black
Cable: AWG26 × 5P + AWG26 × 6C
Servo Driver
Shell
Standard Models and Specifications Chapter 2
