4-95
H Parameters Requiring Settings
Parameter No. Parameter
name
Explanation Reference
Pn202 Electronic gear
ratio G1
(denominator)
Set the pulse rate for the command pulse and
Servomotor travel distance. When G1/G2 = 1, if
the pulse (encoder resolution x 4) is input, the
4-4-4 Parameter
Details
Pn203 Electronic gear
ratio G2
(numerator)
Servomotor will rotate once (i.e., the internal driver
will rotate x 4). (See note 1.)
Note 1. Set within the range 0.01 G1/G2 100.
Note 2. These parameters become effective when the power is turned ON again after having been
turned OFF. (Check to see that the LED display has gone OFF.)
Note 3. With the default setting (G1/G2 = 4), the Servomotor will rotate once when the encoder resolu-
tion pulses are input.
Note 4. One position deviation (deviation counter) display and positioning completed range pulse
make one input pulse. (This is called a command unit.)

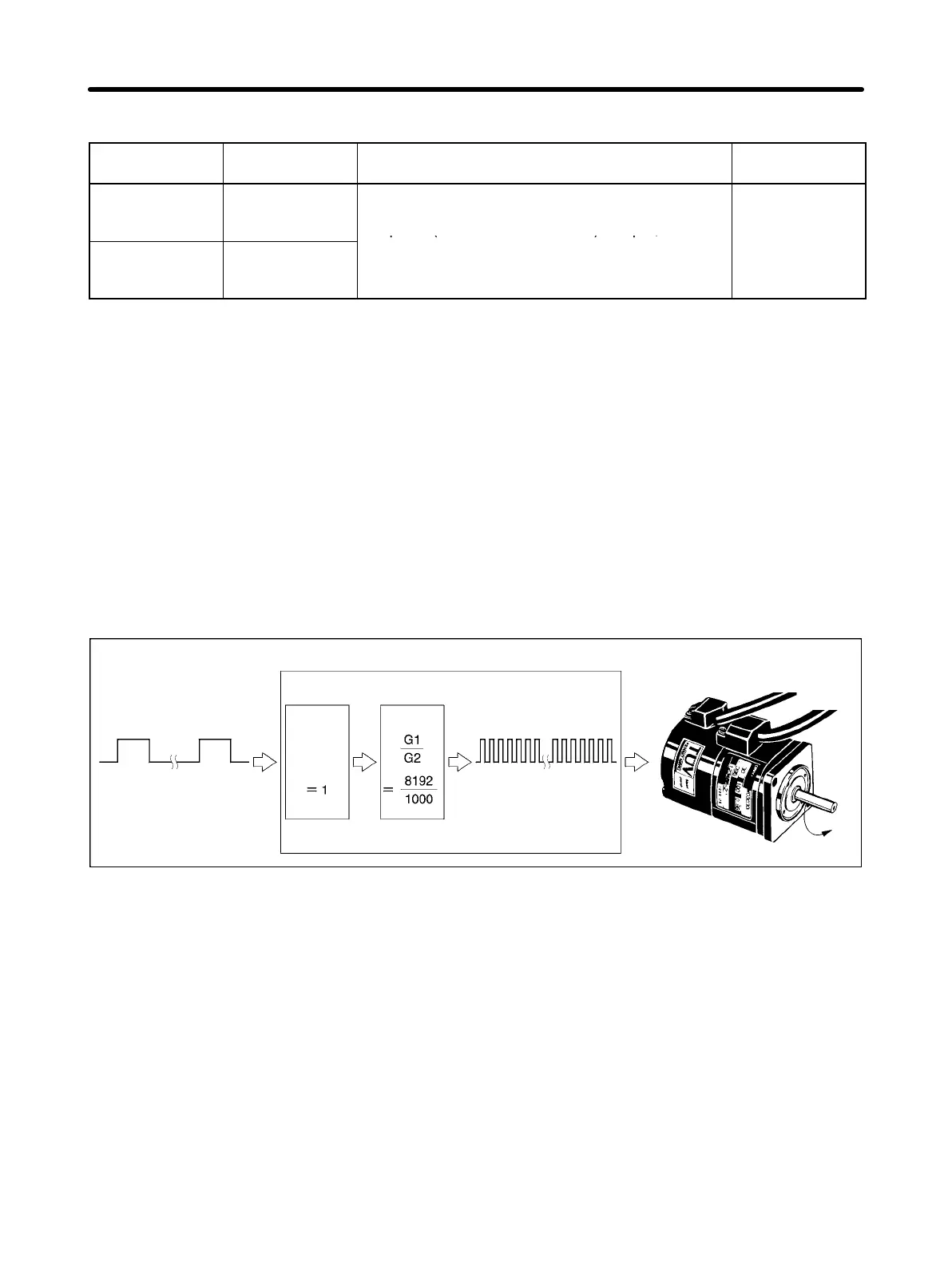

H Operation
D Servomotor with 2,048 (Pulses/Rotation) Encoder
• When set to G1/G2 = 8192/1000, the operation is the same as for a 1,000-pulses/rotation Servomotor.
1,000 pulses
Electronic
gear
8,192 pulses
Servo Driver
Servomotor
(Encoder resolution:
2,048 pulses/rotation)
1 rotation (8,192 pulses)
Command
pulse factor
(Pn217)
Note 1. If the PSEL (command pulse factor switching) input is ON when Pn218.0 (command pulse
factor switching selection) is set to 1, the result from multiplying the set value in Pn217 (com-
mand pulse factor) is multiplied again by the electronic gear ratio.
Note 2. Command pulse factor switching is a new function supported by Servo Drivers with software
version “r.0037.”
4-5-13 Position Command Filter Function (Position)
H Functions
• Perform soft start processing for the command pulses using the selected filter to gently accelerate and
decelerate.
Operation Chapter 4
