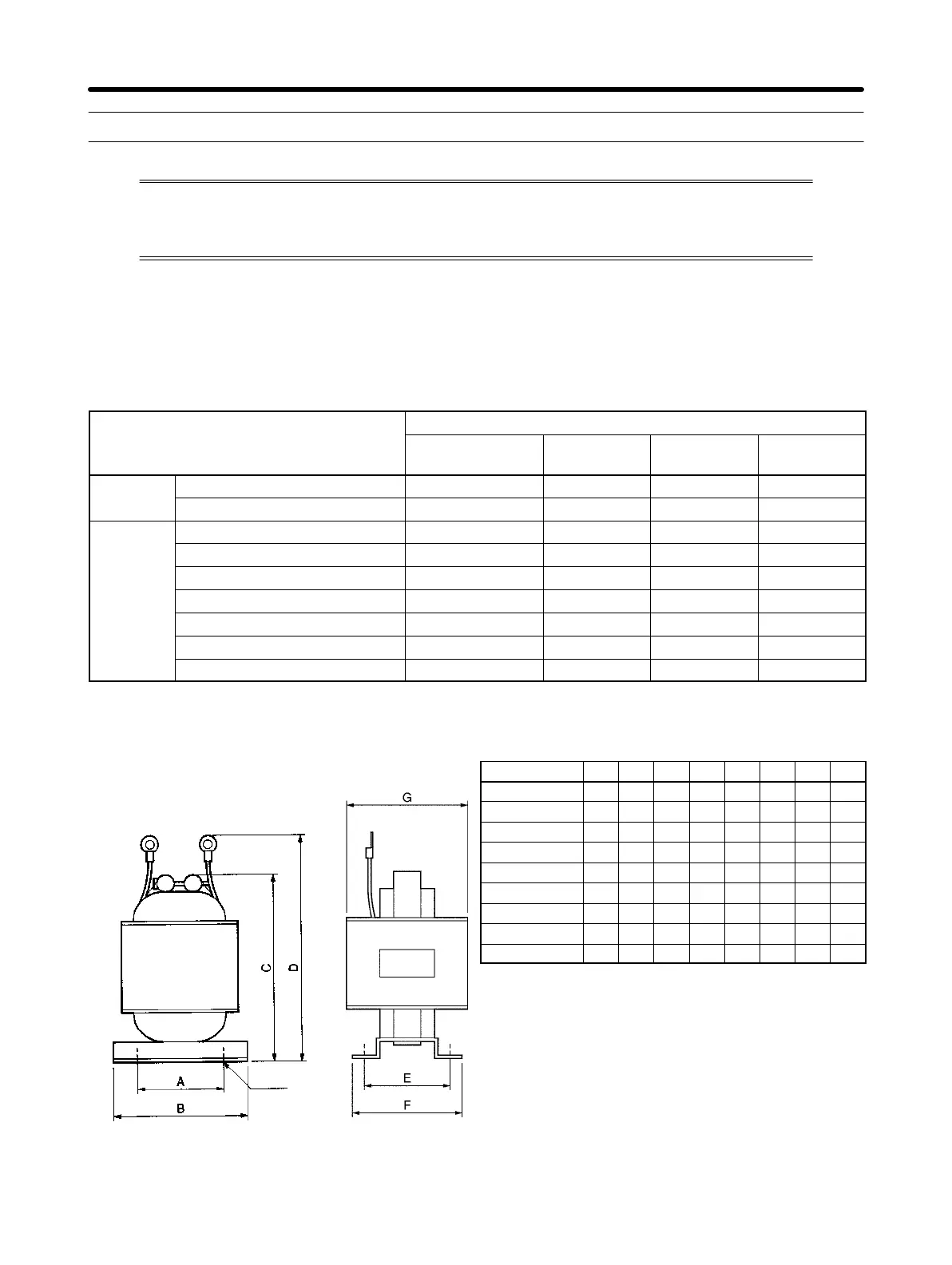

2-11 DC Reactors
Connect a DC Reactor to the Servo Driver’s DC Reactor connection terminal as a har-
monic current control measure. Select a model to match the Servo Driver being used.
(The R88D-WT60H to R88D-WT150H models are not provided with a DC Reactor.)
H R88A-PXj DC Reactors
H Specifications
Servo Driver model
DC Reactor
Model Rated
current (A)
Inductance
(mH)
Weight (kg)
100 V
R88D-WTA3HL/A5HL/01HL R88A-PX5063 1.8 10.0 Approx. 0.6
R88D-WT02HL R88A-PX5062 3.5 4.7 Approx. 0.9
200 V
R88D-WTA3H/A5H/01H R88A-PX5071 0.85 40.0 Approx. 0.5
R88D-WT02H R88A-PX5070 1.65 20.0 Approx. 0.8
R88D-WT04H R88A-PX5069 3.3 10.0 Approx. 1.0
R88D-WT05H/08H/10H R88A-PX5061 4.8 2.0 Approx. 0.5
R88D-WT15H/20H R88A-PX5060 8.8 1.5 Approx. 1.0
R88D-WT30H R88A-PX5059 14.0 1.0 Approx. 1.1
R88D-WT50H R88A-PX5068 26.8 0.47 Approx. 1.9
H External Dimensions
Model A B C D E F G H
R88A-PX5059 50 74 125 140 35 45 60 5
R88A-PX5060 40 59 105 125 45 60 65 4
R88A-PX5061 35 52 80 95 35 45 50 4
R88A-PX5062 40 59 100 120 40 50 55 4
R88A-PX5063 35 52 90 105 35 45 50 4
R88A-PX5068 50 74 125 155 53 66 75 5
R88A-PX5069 40 59 105 125 45 60 65 4
R88A-PX5070 40 59 100 120 35 45 50 4
R88A-PX5071 35 52 80 95 30 40 45 4
Standard Models and Specifications Chapter 2
Four, H dia.
To Next Page
