3-15

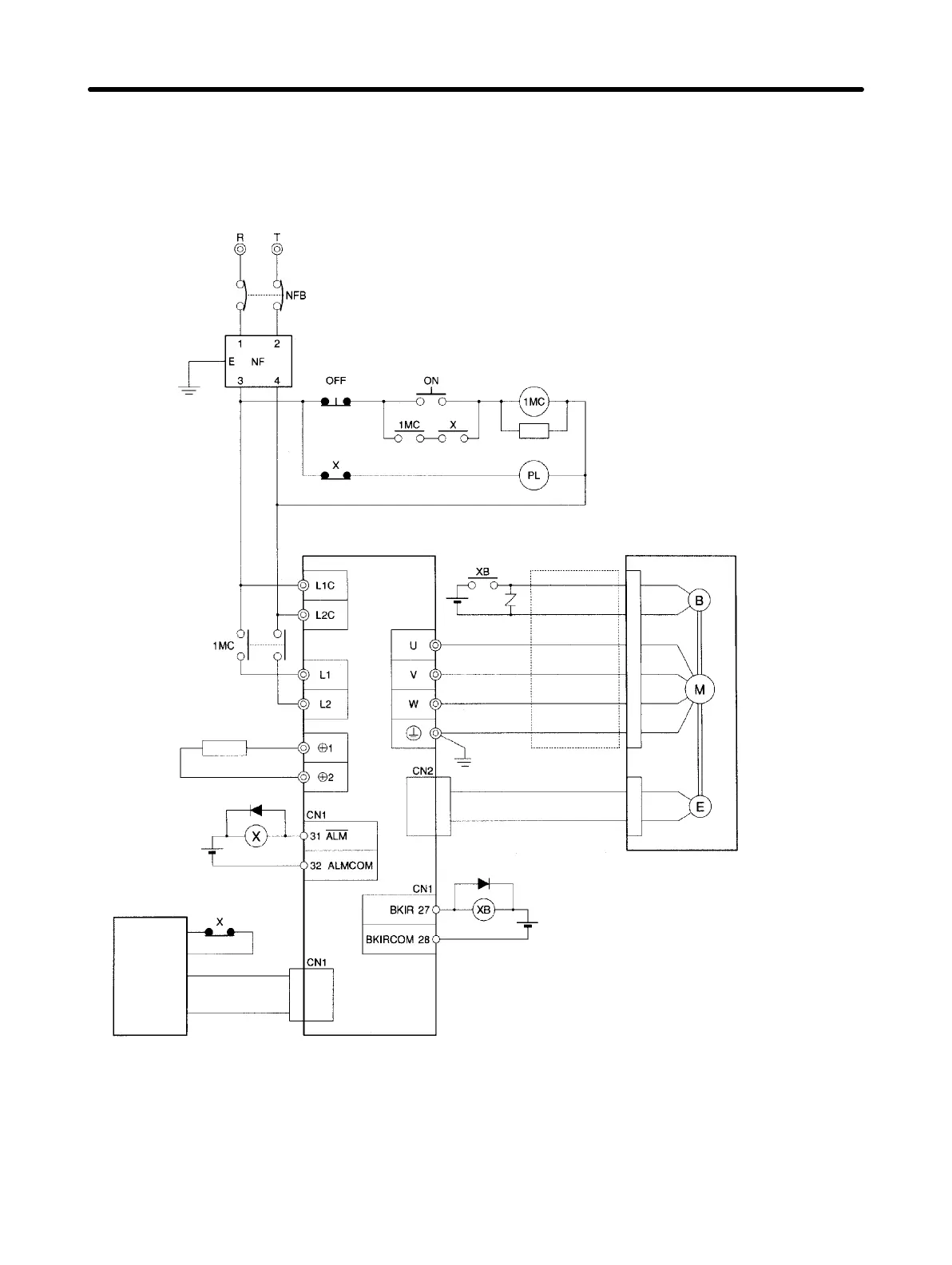

3-2-2 Peripheral Device Connection Examples
H R88D-WTA3HL/-WTA5HL/-WT01HL/-WT02HL/-WTA3H/-WTA5H/-WT01H/-WT02H/-WT04H
Single-phase 100/115 V AC, 50/60 Hz: R88D-WTjjHL
Single-phase 200/230 V AC, 50/60 Hz: R88D-WTjjH
Noise filter (See note 2.)
Main-circuit power supply
Main-circuit connector (See note 2.)
Surge killer (See note 2.)
Servo error display
Power Cable
OMNUC W-series
AC Servo Driver
Class-3 ground
24 V DC
Class-3 ground
Encoder Cable
24 V DC
(See note 3.)
24 V DC
User-
controlled
device
Control cable
(See note 1.)
DC Reactor
Note 1. Set by user parameter Pn50F.
2. Recommended product in 3-2-4 Wiring for Noise
Resistance. For conformity to EC Directives,
refer to 3-2-5 Wiring for Conformity to EMC
Directives.
3. Recommended relay: MY Relay (24 V), by
OMRON. For example, an MY2 Relay outputs to
a 2-A inductive load at 24 V DC, making it
applicable to all W-series Motors with Brakes.
4. The brake is not affected by the polarity of the
power supply.
OMNUC W-series
AC Servomotor
(See note 4.)
System Design and Installation
Chapter 3
