4-145

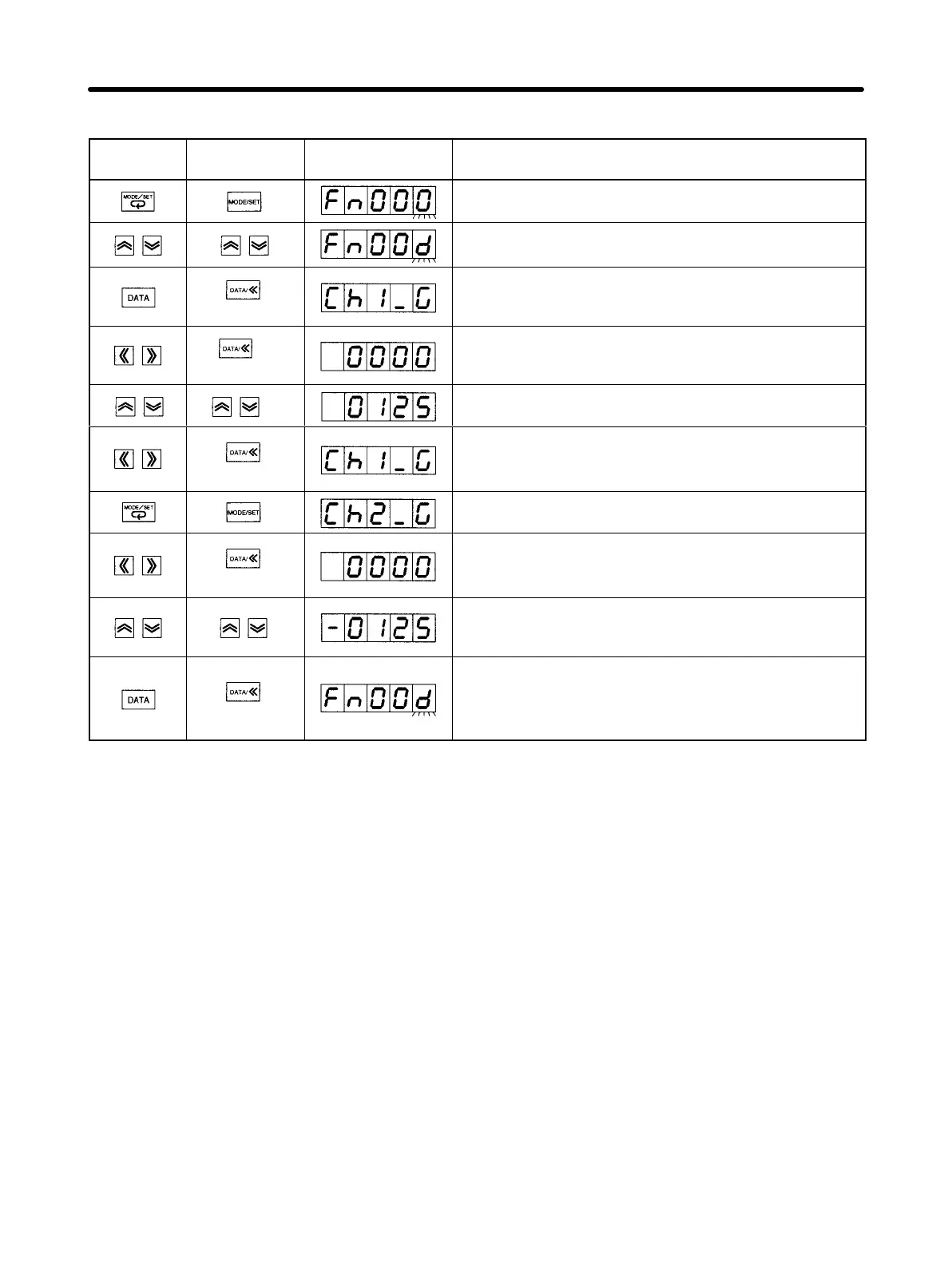

Operation Procedure
PR02W
operation
Front panel
key operation
Display
Explanation
Press the MODE/SET Key to change to System Check
Mode.
Press the Up or Down Key to set function code Fn00d.
(See note 1.)
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display “Ch1_G” (for analog monitor output 1 (AM)).
(See note 2.)
(1 s max.)
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 1
(AM) offset amount. (See note 3.)
Press the Up or Down Key to change the scale. Set the
scale according to the measuring device input range.
(1 s max.)
After completing adjustments for analog monitor 1, press
the Left Key (front panel: DATA Key for less than 1 s) or
Right Key to return to the “Ch1_G” display.
Press the MODE/SET Key to display “Ch2_G.”
(1 s max.)
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 2
(NM) scale setting. (See note 3.)
Press the Up or Down Key to change the scale. Set the
scale according to the measuring device input range, the
same as for analog output monitor 1.
(1 s min.)
After completing adjustments for analog monitor 2, press
the DATA Key (front panel: DATA Key for 1 s min.). The
display will return to the System Check Mode function
code.
Note 1. The digits you can manipulate will flash.
Note 2. Press the MODE/SET Key in this mode to display “Ch2_G,” then select analog monitor output
2 (NM). Press the same Key again to return to “Ch1_G” display.
Note 3. The scale unit is x 0.4%.
4-11-7 Servomotor Current Detection Offset Adjustment
• Servomotor current detection offset adjustment has already been completed at the factory. Conse-
quently, there is normally no need to perform adjustments.
• If you think that the torque ripple caused by current detection offset is abnormally large, perform Ser-
vomotor current detection offset automatic adjustment (Fn00E).
• After performing automatic adjustment, perform manual adjustment (Fn00F) if you still want to lower
the torque ripple even further. If manual adjustment is performed badly, however, there is a risk of
worsening the characteristics.
H Servomotor Current Detection Offset Automatic Adjustment (Fn00E)
• Perform automatic adjustment to the Servomotor current detection offset.
Operation Chapter 4
