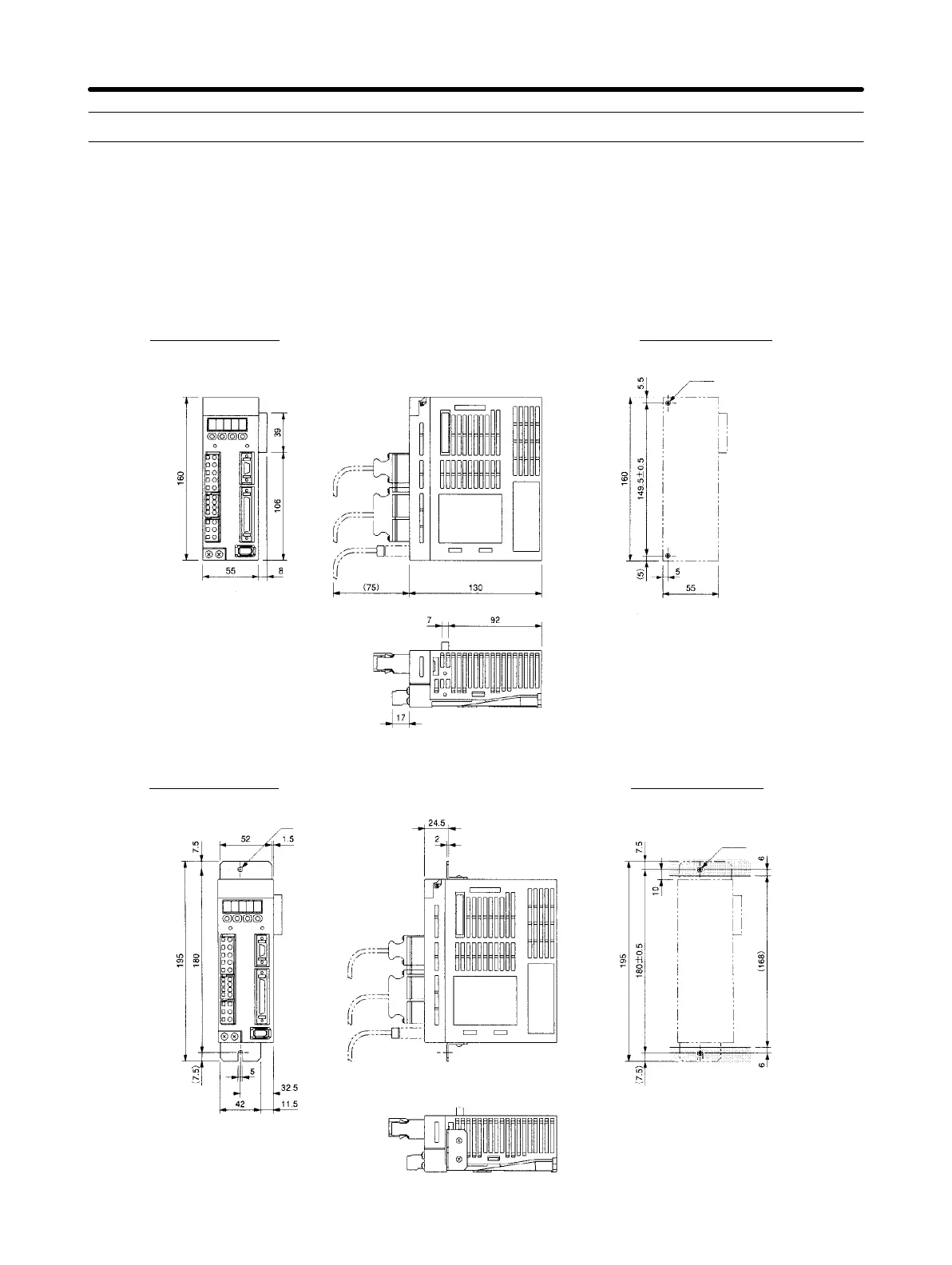

2-3 External and Mounted Dimensions
Dimensions are shown in millimeters.
2-3-1 AC Servo Drivers
H Single-phase 100 V: R88D-WTA3HL/-WTA5HL/-WT01HL (30 to 100 W)
Single-phase 200 V: R88D-WTA3H/-WTA5H/-WT01H/-WT02H (30 to 200 W)
D Wall Mounting
External dimensions Mounted dimensions
Two, M4
D Front Panel Mounting (Using Mounting Brackets)
External dimensions Mounted dimensions
5 dia.
Two, M4
