4-123

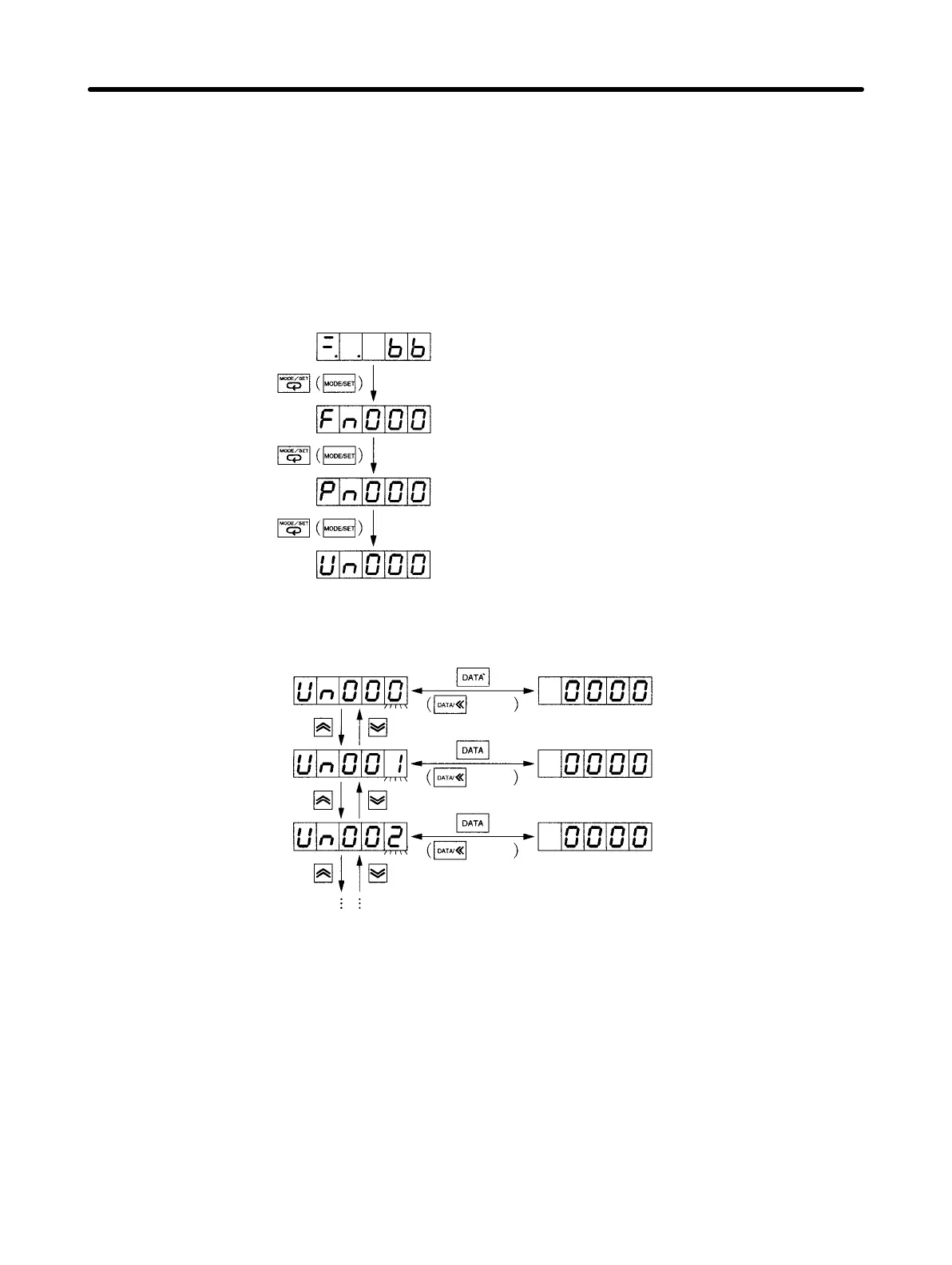

4-9-3 Monitor Mode (Unjjj)
H Operations Using Monitor Mode
• After switching to Monitor Mode, set the monitor number, and press the DATA Key (front panel: DATA
Key for 1 s min.) to display the monitor value.
D Switching to Monitor Mode
Status Display Mode
System Check Mode
Setting Mode
Monitor Mode
Note Switch to Monitor Mode (Un.jjj) using the MODE/SET
Key.
D Operations in Monitor Mode
Speed feedback
Speed command
Torque command
Note After setting the monitor number using the Up and Down
Keys, press the DATA Key (front panel: DATA Key for 1 s min.)
to display the monitor value. Press the Key again to return to
the monitor number display.
Speed feedback moni-
tor value
Speed command moni-
tor value
Torque command moni-
tor value
1 s min.
1 s min.
1 s min.
Operation Chapter 4
