2-179

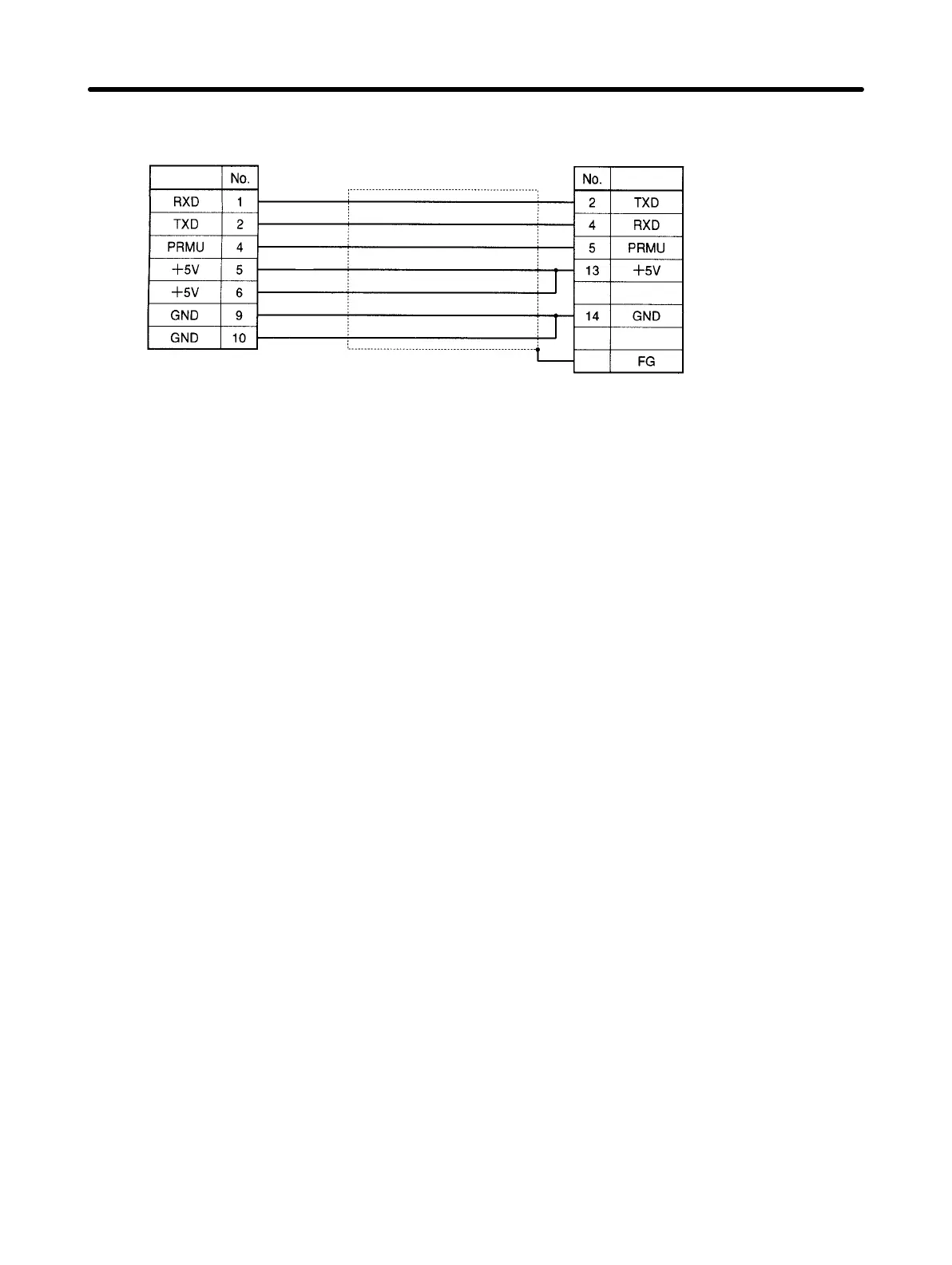

D Wiring
Parameter Unit
Symbol Symbol
Connector plug:
10114-3000VE (Sumitomo 3M)
Connector case:
10314-52A0-008 (Sumitomo 3M)
Connector socket:
D8410-4501 (Sumitomo 3M)
Connector case:
D79004-3210 (Sumitomo 3M)
Contacts:
3690-1000 (Sumitomo 3M)
Cable: AWG26 × 7C UL2464
Servo Driver
Shell
Standard Models and Specifications Chapter 2
