Panasonic AK-HRP1000G User Manual

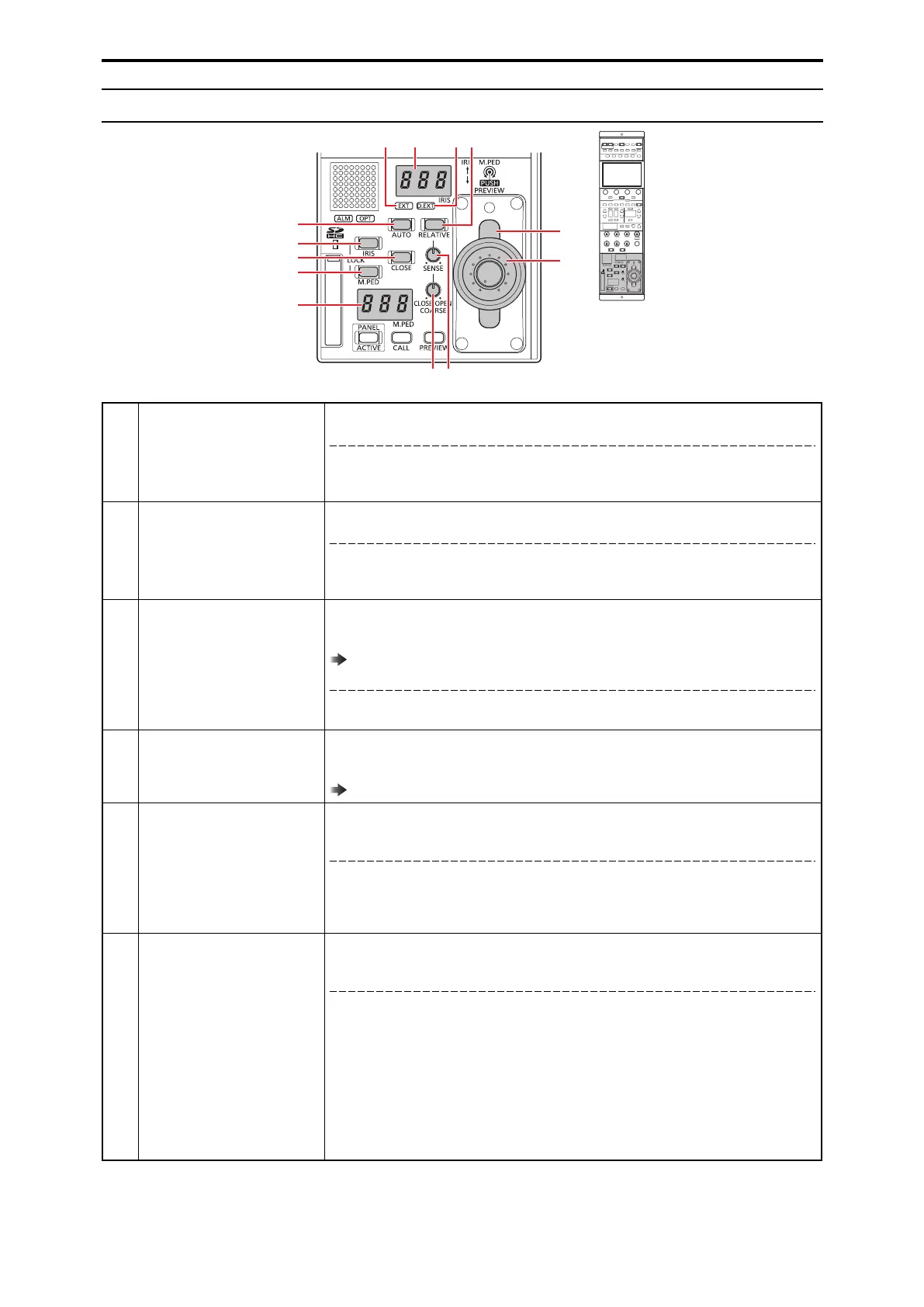

Front panel 8
1 2 5
12
9
10
13
11
8
3
67
4
1 [EXT] indicator This indicator lights to warn that the lens extender is set to something other than 1x.
Status displays
On: The lens extender is set to something other than 1x.
Off: This indicates that the lens extender is not being used or that it is not
available.
2 [D.EXT] indicator This indicator lights to warn that the digital extender is set to something other than 1x.
Status displays
On: The digital extender is set to something other than 1x.
Off: This indicates that the digital extender is not being used or that it is not
available.
3 [IRIS] lever Use this lever to adjust the iris level.
The iris can be adjusted manually.
For details on adjusting the iris, see the following page.
“Iris (IRIS)” (see page 45)
Lever position
Forward: Adjusts in the CLOSE direction.
Backward: Adjusts in the OPEN direction.
4 [M.PED] dial Use this dial to adjust the master pedestal level.
Turn it right (clockwise) to increase the master pedestal.
For details on adjusting the master pedestal, see the following page.
“Master pedestal (M.PED)” (see page 44)
5 [RELATIVE] button Use this button to set whether the variable range of the [IRIS] lever will be dependent on the
[SENSE] dial and [COARSE] dial.
Status displays
On: The [IRIS] lever is dependent on the settings of the [SENSE] dial and
[COARSE] dial.
Off: Sets the variable range of the [IRIS] lever to the entire range from
OPEN to CLOSE.
6 [SENSE] dial Use this dial to adjust the iris variable range when the [IRIS] lever is moved from OPEN to
CLOSE.
Dial operation
Turn right (clockwise): Widens the variable range ([IRIS] lever sensitivity
increases).
At the dial’s rightmost position, the aperture will be about
±2 f-stops (only when [IRIS LEV MODE] on the [ROP
SETTING] menu is set to “ABS”).
Turn left (counterclockwise): Narrows the variable range ([IRIS]lever sensitivity
decreases).
At the dial’s leftmost position, the aperture will be about
±1/2 f-stops (only when [IRIS LEV MODE] on the [ROP
SETTING] menu is set to “ABS”).
- 30 -
Parts and their functions
