Iris (IRIS)
Displaying and setting the iris (IRIS)
Manual adjustment
When the auto iris is not on, the iris can be adjusted manually.
The iris value is displayed on the [IRIS] display (A).
Adjustment is possible while the [AUTO] button (C) is off (AUTO is canceled).
Adjustment is possible while the [IRIS LOCK] button (D) is off (iris lock is canceled).
Adjustment is possible while the [CLOSE] button (E) is off (iris force CLOSE is canceled).

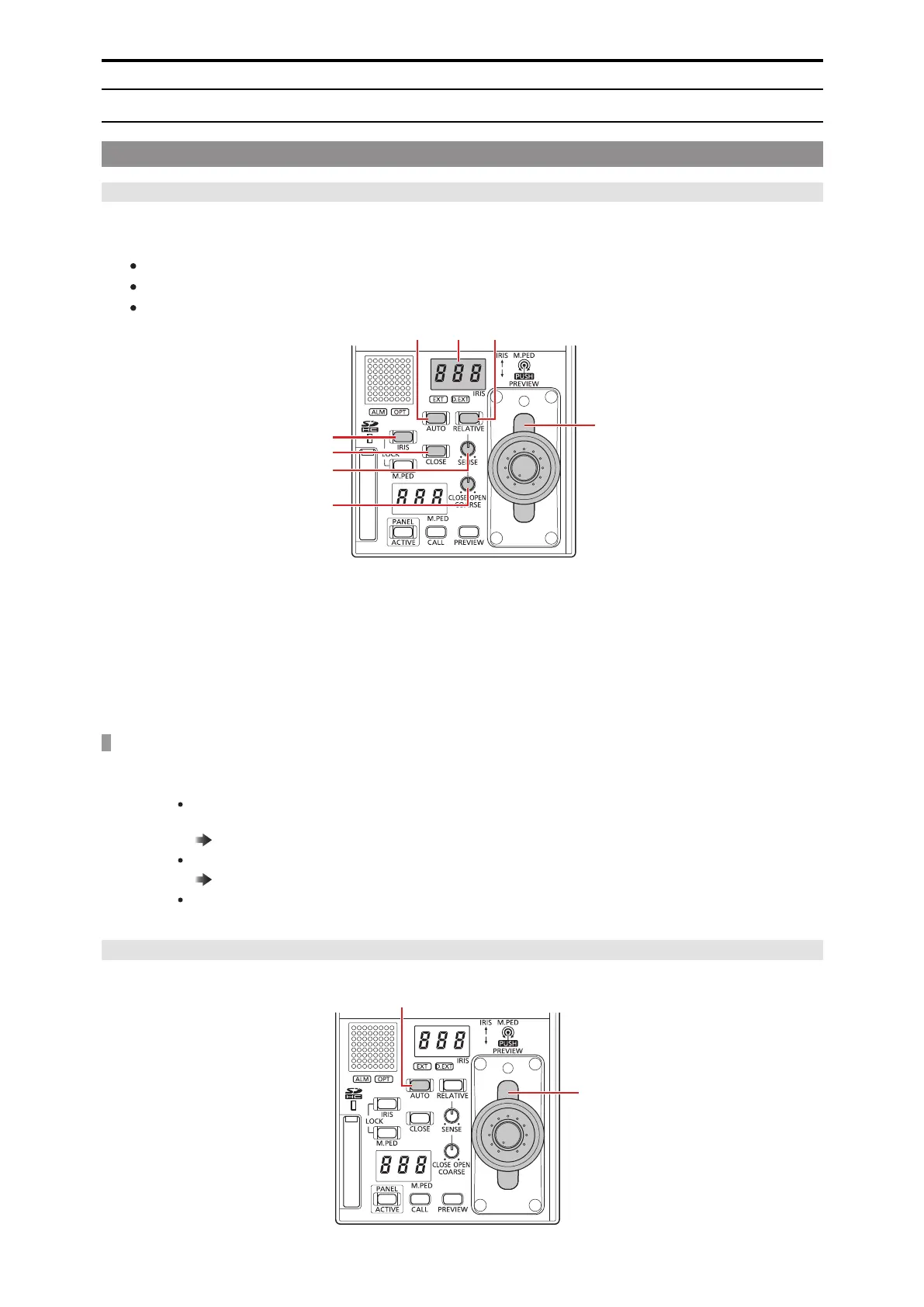

A. [IRIS] display
B. [IRIS] lever
C. [AUTO] button
D. [IRIS LOCK] button
E. [CLOSE] button
F. [RELATIVE] button
G. [SENSE] dial
H. [COARSE] dial
Operating procedure
1. Adjust the iris level with the [IRIS] lever (B).
Moving it forward adjusts the level in the CLOSE direction and moving it backward adjusts the level in the OPEN direction.
Use the [SENSE] dial (G) to adjust the iris variable range when the [IRIS] lever (B) is moved from the center to the upper
and lower edges.
“[SENSE] dial” (see page 30)
Use the [COARSE] dial (H) to adjust the iris value when the [IRIS] lever (B) is moved to the center.
“[COARSE] dial” (see page 31)
To cancel the restriction placed on the variable range by the [SENCE] dial (G) and [COARSE] dial (H) in order to use the
entire range from OPEN to CLOSE, press the [RELATIVE] button (F) to turn off the button.
Automatic adjustment
Adjust the iris automatically. (Auto iris)
- 45 -
Adjustment and settings
