7.38
FINAL DRIVE
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

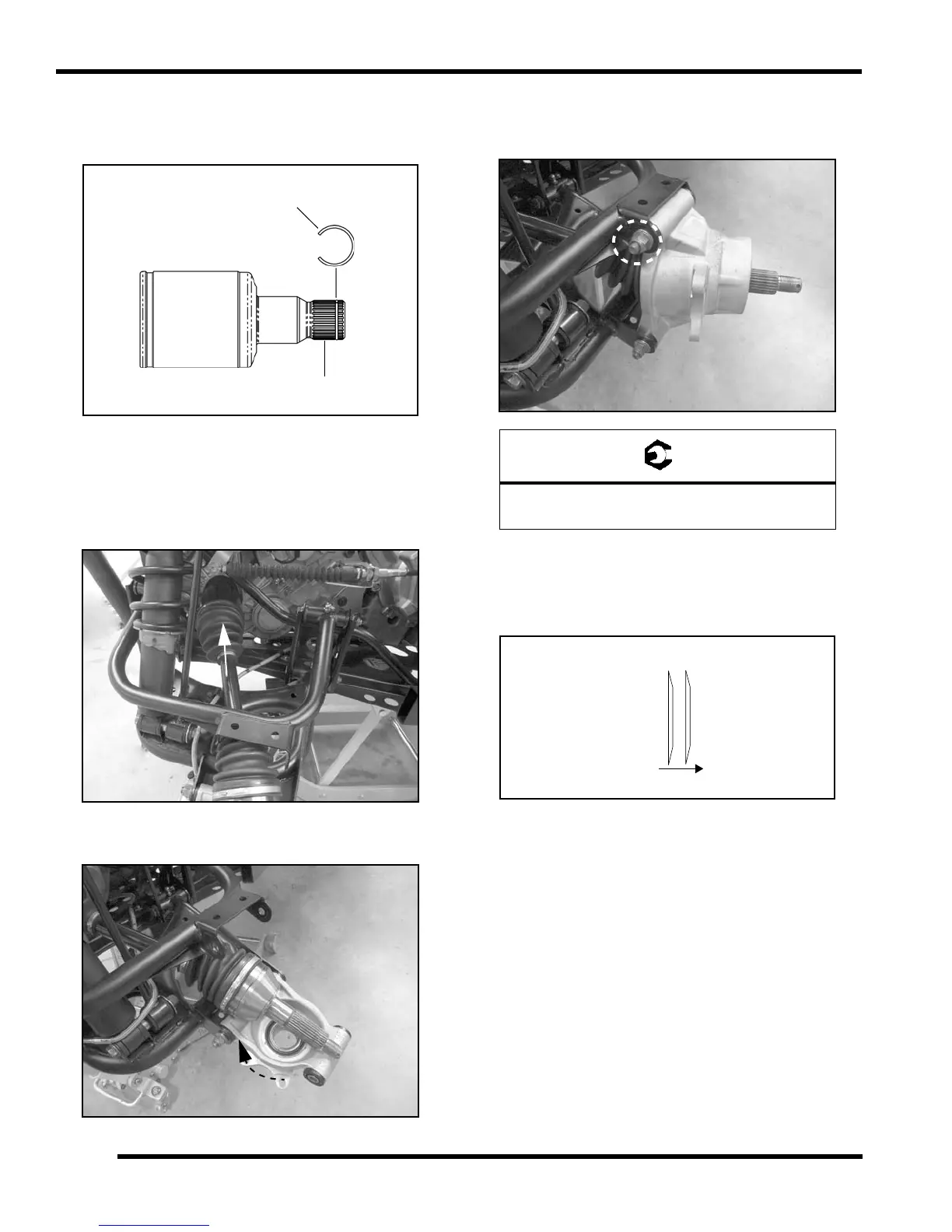

Drive Shaft Installation
1. Install new spring ring on drive shaft. Apply anti-seize
compound to splines.
2. Align splin es o f drive sha ft with rear g earcase a nd
r
einstall the drive shaft. Use a rubber mallet to tap on
the outboard end of the drive shaft if necessary.
NOTE: Take c are when in stalling the d rive sh aft to
pr
event damaging the seal.
3. Slide the rear drive shaft into the rear bearing carrier.
4. Lift bea ring carrier into place an d install th e bolt
atta
ching the bea ring carr ier to th e up per A-a rm.
Torque fastener to specification.
5. Apply grease to drive shaft axle splines.
6. Install rear wheel hub assembly, cone washers, and
han
d tighten the castle nut. Install washers with
domed side out.
Apply
Anti-Seize
NEW
Spring Ring
Upper Rear Bearing Carrier Bolt:
40 ft. lbs. (54 Nm)
