8.35
TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

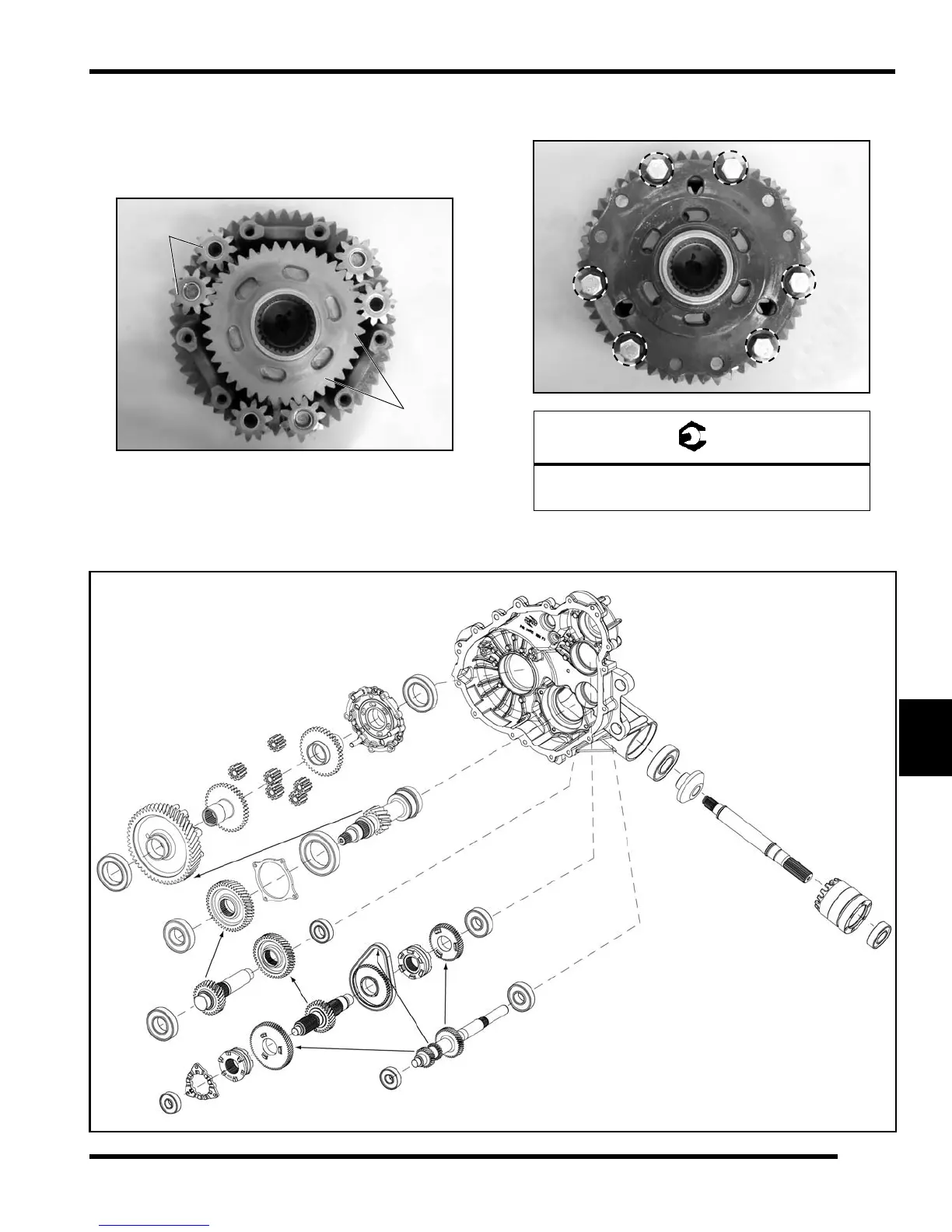

Planetary Differential Assembly
1. Thoroughly clean the differential components.
2. Assemble the side gears and place them onto the ring
g
ear along with the (6) planet gears.
3. Align and install the differ ential cover using the
p
reviously made scribe marks.
4. Apply Loctite® 2760™
to cover screws.
5. Install screws hand tight. Plac
e assembly in soft jaw
vise and torque to specification.
Gear / Shaft / Bearing Inspection
Differential Cover Screws:
18-22 ft. lbs. (24-30 Nm)
Inspect all gear sets and shafts for
excessive wear or damage.
IMPORTANT: If gear replacement is
required, be sure to also replace the
corresponding gear or gear shaft.
Inspect all bearings for signs of
wear or damage. If replacement is
required, use a standard bearing
puller or an arbor press.
