7.7. RC3000-SUB-DV35 user-board explanation
7.7.1. Rules for channel allocation
RC3000-SUB-DV35 is a data user-board with V35 interface and the channel number is
configurable, the rules are as follow:
a. Rules for automatic channel distribution: RC3000 has automatic channel
distribution function. If V35 data is put into the first slot and 1-8 channels of
the first user E1 are idle, system will distribute 1-8 channels of the first user
E1 to it; If V35 data is put into the second slot and 9-16 channels of the
second user E1 are idle, system will distribute 9-16 channels of the first user
E1 to it; If V35 data is put into the third slot and 17-30 channels of the first
user E1 are idle, system will distribute 17-30 channels of the first user E1 to it
(or 17-31 in PCM31 frame mode)
b. Rules for manual channel distribution:
There will be position limitation for manual channel distribution. Here we will
first give the definition of cross connect groups. RC3000 can have 4 E1 at
most and we use 1, 2, 3, and 4 to stand them (each E1 is one cross group,
and now we have cross group 1, 2, 3, and 4), it also has four STBUSes (2M
Voice channel control module
Multiplexing module
Voice channel
interface
Bus
interface
Multiplexing
bus
Control bus
Multiplexing bus
process module
Control bus process
module
Voice input &
output
Signal input &
output
Control of
channel output
Voice D/A converter
E & M signal process
module

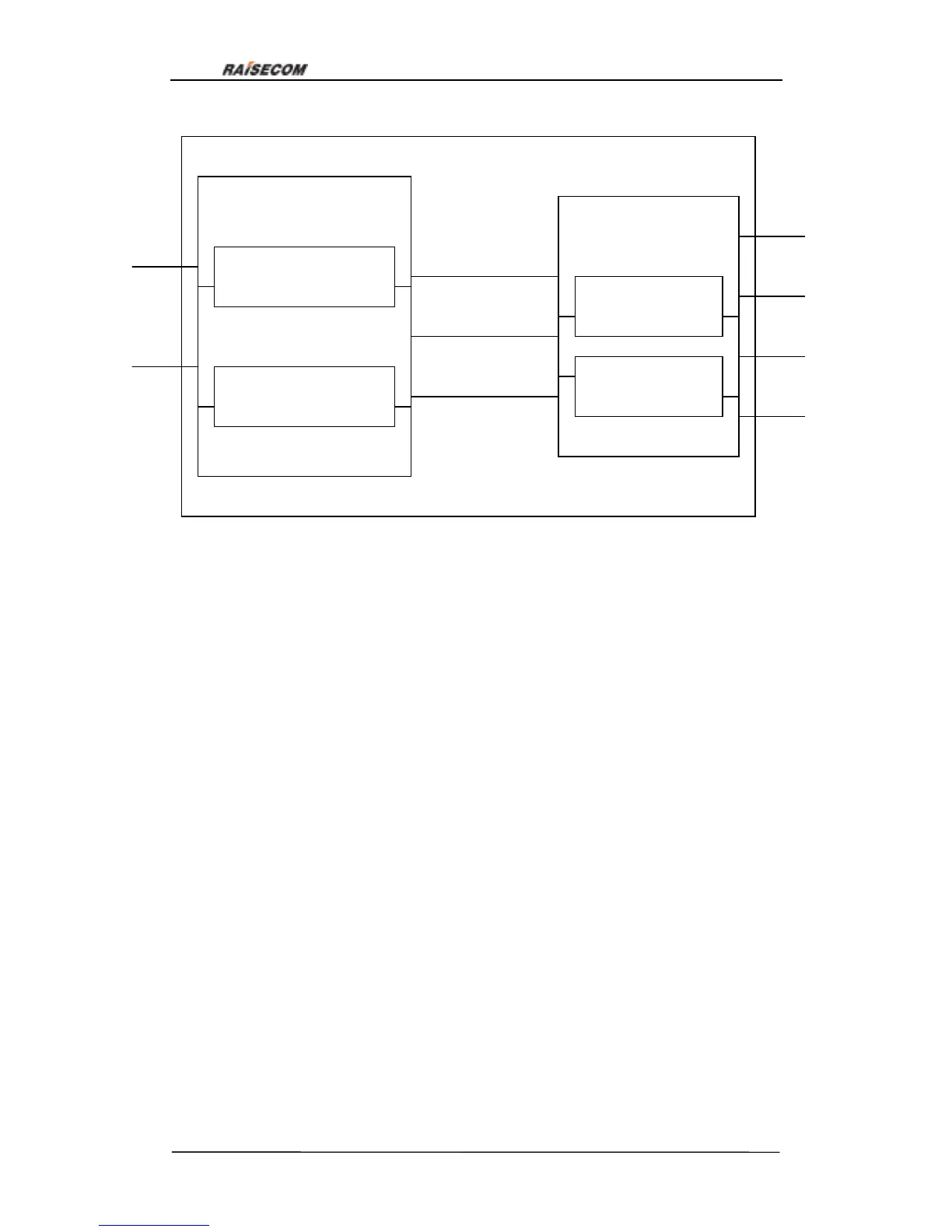

Figure 30
