Maintenance
74
Replacing Consumable Parts

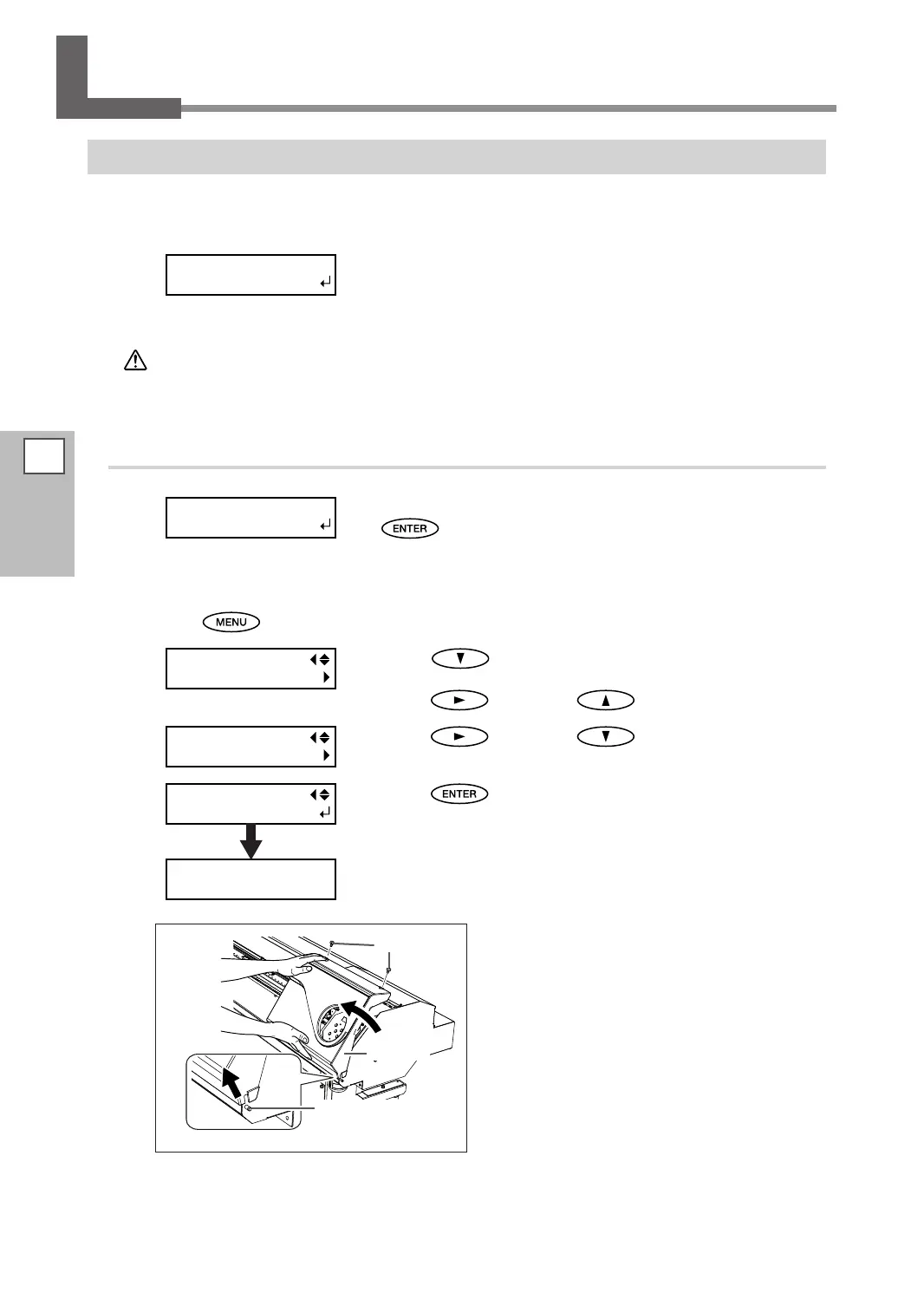

Replacing the Wiper
The wiper is a component that you use when cleaning the print head. When the screen displays a message
like the one shown, it means the item needs to be replaced. Replace with new items.
Regarding the purchase of the wiper, contact your authorized Roland DG Corp. dealer.
CAUTION
Be sure to perform operations as specied by the following instructions,
and never touch any area not specied in the instructions.
Sudden movement of the machine may cause injury.
1.
Display the [REPLACE WIPER] menu.
When the message shown in the gure appears, press
.
Remove any media from the platen.
Press .
Press several times until the screen shown on
the left appears.
Press
, and then .
Press , and then .
Press .
The print-head carriage moves to a location where wiper replacement
is possible, and then the screen shown in the gure appears.
Remove the cover R.
MAINTENANCE
REPLACE WIPER
OPEN COVER R
Screws
Cover R
Hook
To Next Page
