Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

123

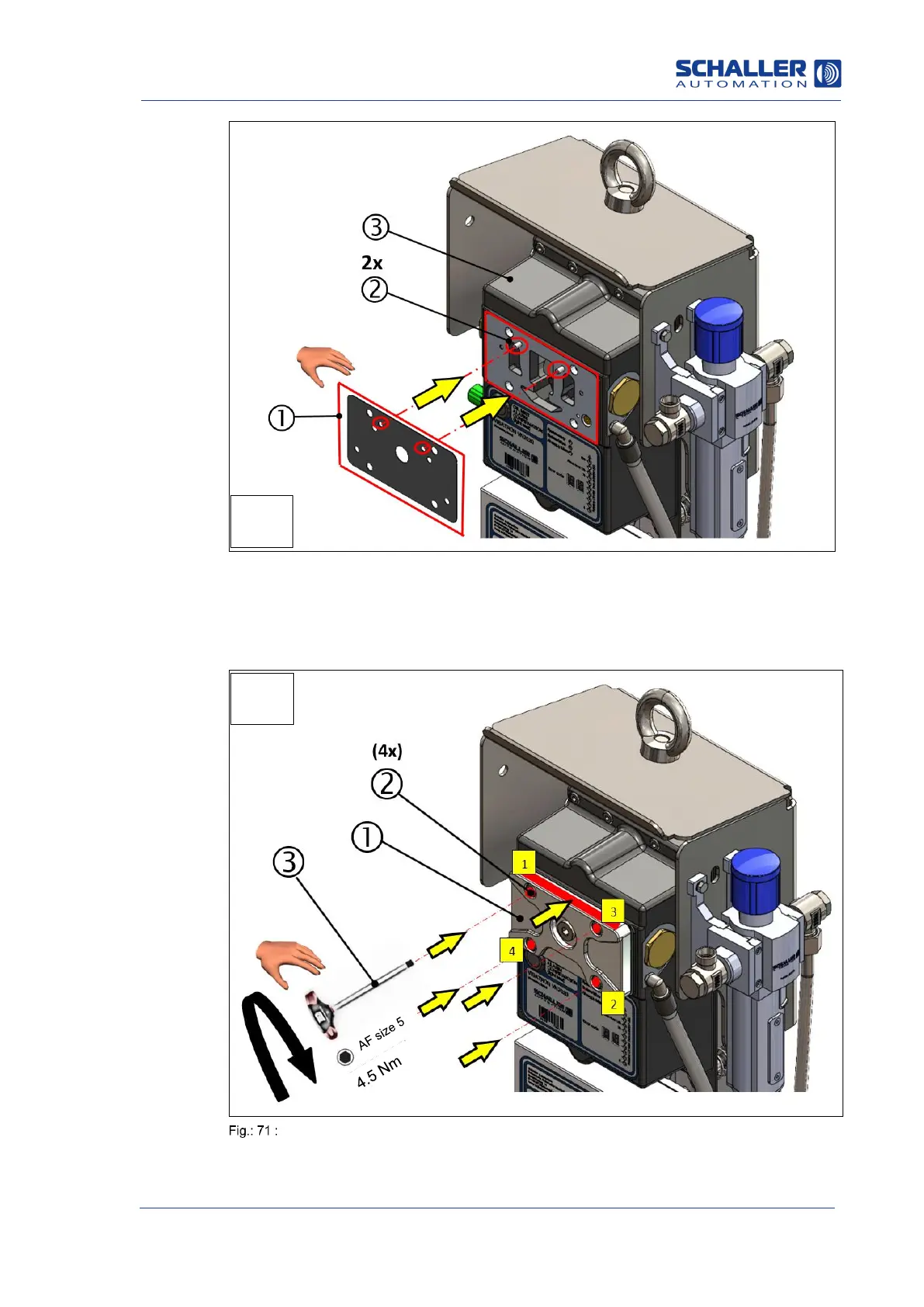

MAINTENANCE AND REPAIR

1: Seal (new)

3: Measuring head

2: 2x centring pins

 Positioning of the new seal [] for the inspection cover over the two

dowel pins [] completed successfully.

Cleaning the light path, VN2020 (steps 1- 8)

1: Inspection cover

3: Allen torque spanner, size 5

2: 4x neck collar bolts (tighten crosswise; sequence: 1-4)
